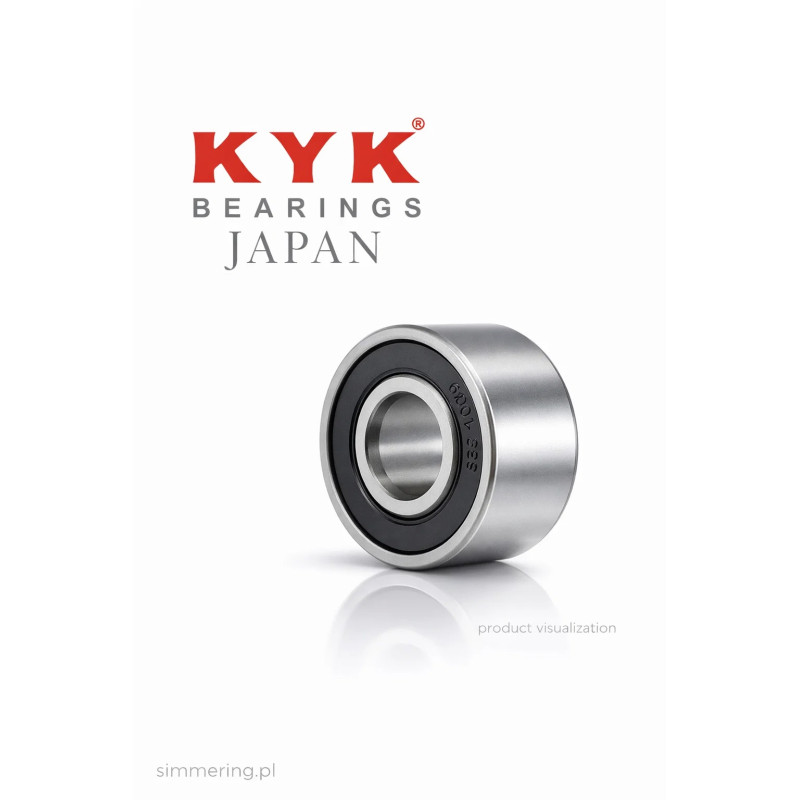

3303 2RS TVH KYK JAPAN Angular Contact Ball Bearing 17x47x22,2

Application of 3303 2RS TVH KYK Bearing

The 3303 2RS TVH KYK JAPAN 17x47x22,2 is a double row angular contact ball bearing designed to handle combined radial and axial loads. Thanks to its angular contact design, it offers improved rigidity and load capacity compared to standard deep groove ball bearings.

With dimensions 17x47x22,2 mm, this ball bearing is commonly used in gearboxes, drive systems, pumps, hubs, and various industrial machinery. It ensures stable shaft positioning and reliable operation in dynamic working conditions. The bearing can operate as a standalone component or as part of a bearing unit installed in a compatible bearing housing.

Its double row construction allows it to support axial loads in both directions, making it suitable for demanding industrial applications where load stability is critical.

Advantages of 2RS Sealing and KYK JAPAN Quality

The 2RS designation means the bearing is equipped with double-sided rubber seals. These seals protect the internal components from dust, moisture and contaminants while retaining lubrication inside. This significantly extends service life and reduces maintenance requirements.

TVH KYK JAPAN bearings are recognized for consistent manufacturing precision and reliable performance. The 3303 2RS design provides:

• High durability under combined loads

• Increased rigidity thanks to double row configuration

• Effective sealing against contamination

• Reduced axial play in mechanical systems

• Stable performance at medium rotational speeds

These features make it a dependable solution for continuous industrial operation.

Technical Data

• Brand: TVH KYK JAPAN

• Designation: 3303 2RS

• Type: Double row angular contact ball bearing

• Inner diameter (d): 17 mm

• Outer diameter (D): 47 mm

• Width (B): 22,2 mm

• Sealing: 2RS - double-sided

The 17x47x22,2 configuration ensures compatibility with standard shaft and housing tolerances used in mechanical assemblies.

FAQ - Frequently Asked Questions

What is the difference between angular contact and deep groove ball bearings?
Angular contact ball bearings are designed to support higher axial loads due to their contact angle, while deep groove ball bearings are primarily optimized for radial loads.

Can 3303 2RS support axial loads in both directions?
Yes. As a double row angular contact bearing, it supports axial loads in both directions along with radial loads.

Is this bearing pre-lubricated?
Yes. The 2RS sealed version is factory lubricated and ready for installation in standard industrial applications.

Where is 3303 2RS commonly used?
It is widely applied in gear drives, pumps, drive assemblies and other industrial machinery requiring stable shaft support.
