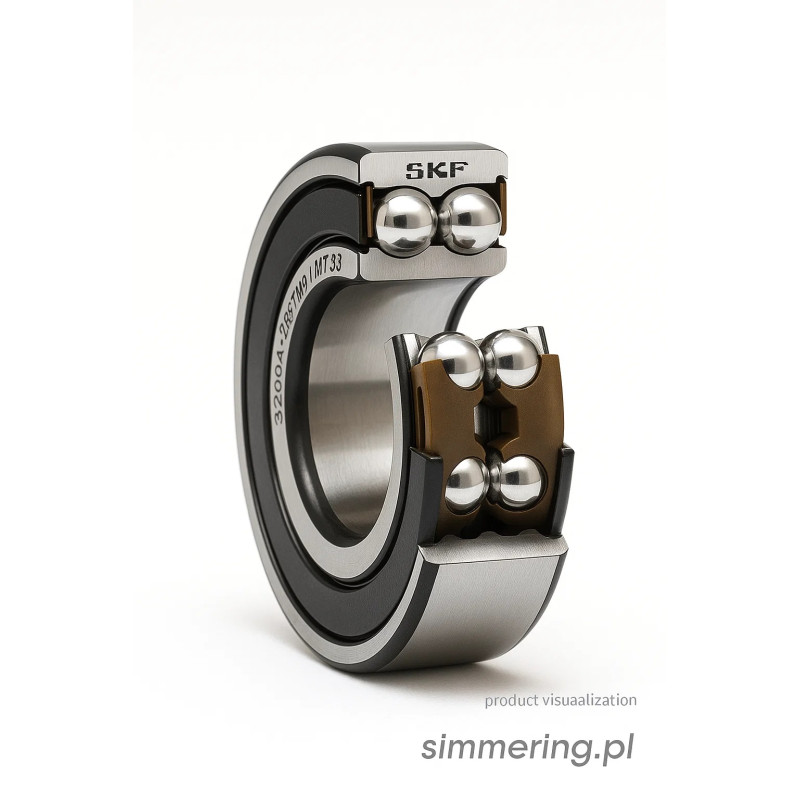

SKF 3200 A-2RS1TN9/MT33 – 10×30×14.3 Angular Contact Ball Bearing
search
  • SKF 3200 A-2RS1TN9/MT33 – 10×30×14.3 Angular Contact Ball Bearing

SKF 3200 A-2RS1TN9/MT33 - 10x30x14.3 Angular Contact Ball Bearing

3 pcs.
€18.99 (net)
Price for: 1pcs.

For reliable, precision applications, the SKF 3200 A-2RS1TN9/MT33 (10x30x14.3 mm) angular contact ball bearing offers sealed, durable performance in compact form.
Warehouse & Store: Lublin, ul. Smoluchowskiego 1, building 4. 24h delivery - fast dispatch.
Contact us now to check stock and place your order.

Quantity

Applications & Industrial Use

The SKF 3200 A-2RS1TN9/MT33 is a double-row angular contact ball bearing engineered for demanding industrial environments. With its compact dimensions (10 mm bore, 30 mm outer diameter, 14.3 mm width) and sealed design, it is ideal for high-precision machines, gearboxes, robotics, pumps, and electric motors. Thanks to the 2RS sealing and factory lubrication (MT33), the bearing can resist ingress of contaminants and requires minimal maintenance, making it suitable for applications where reliability and durability are essential.

Key Features & Advantages

  • Model: 3200 A-2RS1TN9/MT33 — double row angular contact bearing with full sealing on both sides (2RS).

  • Seals (2RS1): sealed both sides to protect against dust, moisture and retain lubrication.

  • Cage type (TN9): polyamide reinforced cage ensuring light weight, stability, and low friction.

  • Internal lubrication (MT33): factory-filled grease suitable for typical industrial temperature ranges.

  • Contact angle: 30° configuration allows effective support of axial and radial loads.

  • Load capacity & speed: dynamic radial load ~7.61 kN, static load ~4.3 kN, limiting speed ≈ 17,000 rpm (depending on conditions).

  • Robust construction: double row design gives improved rigidity and load distribution compared to single-row variants.

  • Temperature range: compatible with industrial conditions, typical from -30 °C up to +110 °C (depending on lubrication).

Technical Specifications

Parameter Value
Bore (d) 10 mm
Outer diameter (D) 30 mm
Width 14.3 mm
Contact angle 30°
Seal type 2RS (double contact rub seals)
Cage material Polyamide (reinforced)
Lubrication Factory grease MT33
Dynamic radial load ~7.61 kN
Static radial load ~4.3 kN
Limiting speed ~17,000 rpm
Operating temperature -30 °C ÷ +110 °C

Mounting & Handling Guidelines

  • Use proper tools and presses to avoid shock loads during installation.

  • Maintain a clean environment and avoid particle contamination.

  • Though factory lubricated, periodic checks and supplementary lubrication may be necessary under high loads or elevated temperatures.

  • Ensure shaft and housing tolerances meet SKF’s recommendations to preserve internal clearance and reduce misalignment effects.

  • Avoid excessive axial overloading beyond intended design.

FAQ - Frequently Asked Questions

Q1: Is this a radial bearing or angular contact bearing?
The SKF 3200 A-2RS1TN9/MT33 is a double-row angular contact ball bearing, designed to carry combined radial and axial loads.

Q2: What do 2RS1, TN9, and MT33 stand for?

  • 2RS1: sealing on both sides (contact rubber seals)

  • TN9: polyamide reinforced cage type

  • MT33: factory grease filling specified by SKF for general industrial use

Q3: Can it be used in high contamination environments?
Yes — the double sealing (2RS) helps prevent ingress of dust and moisture, making it more robust in harsh conditions.

Q4: What are its dynamic and static load ratings and speed limit?
Typical dynamic radial load is ~7.61 kN, static ~4.3 kN, and the limiting speed around 17,000 rpm, depending on conditions.

Q5: Is same-day dispatch possible?
Yes — we maintain stock in Lublin.
Warehouse & Store: Lublin, ul. Smoluchowskiego 1, building 4. 24h delivery - fast order execution.

SKF
3200 A-2RS1TN9/MT33
3 pcs.

Data sheet

Diameter in. (mm)
10
Diameter out. (mm)
30
Height (mm)
14,3
Mark
SKF
