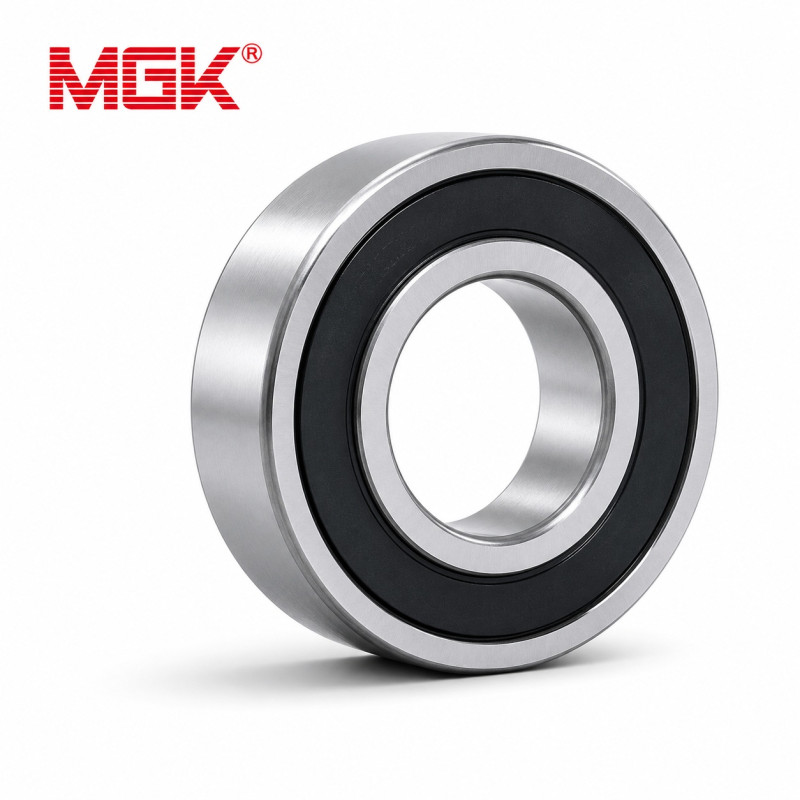

3202 2RS MGK Angular Contact Ball Bearing 15x35x15.9

3202 2RS MGK Angular Contact Ball Bearing 15x35x15.9

3202 2RS MGK is a double row angular contact ball bearing designed for operation under combined radial and axial loads acting in both directions. The compact 15x35x15.9 mm construction provides high rigidity, stable operation and excellent durability in demanding industrial, automotive and technical applications.

Angular contact ball bearings of the 3202 series use a specialized raceway and ball arrangement allowing simultaneous support of:

• radial loads
• axial loads in both directions
• combined loads
• dynamic loads at high rotational speed

The double row construction offers higher rigidity and greater load carrying capacity compared with standard single row deep groove ball bearings. This makes 3202 series bearings an excellent solution for applications requiring precise shaft guidance and stable operation under variable loading conditions.

The 2RS designation indicates rubber contact seals installed on both sides of the bearing. The sealing system effectively protects raceways and rolling elements against dust, moisture and contamination while helping retain lubricant inside the bearing during long term operation.

The 3202 2RS MGK bearing is widely used in:

• industrial gearboxes
• electric motors
• pumps
• compressors
• agricultural machinery
• industrial automation
• drive systems
• industrial fans

The phrase 3202 2RS MGK 15x35x15.9 angular contact ball bearing is frequently searched in gearbox servicing applications and compact drive systems requiring simultaneous support of radial and axial loads.

Construction and operating characteristics

The 3202 2RS MGK bearing is designed for applications requiring high stability and reliable load capacity within compact dimensions.

Main construction features:

• double row angular contact design
• support for radial and axial loads
• 2RS sealing on both sides
• high assembly rigidity
• low noise operation
• suitable for high rotational speed
• contamination protection
• long operational lifespan

The double row ball arrangement allows efficient support of bidirectional axial forces without requiring additional thrust bearings.

Technical specification

Type: Double row angular contact ball bearing

Designation: 3202 2RS

Manufacturer: MGK

Bearing type: Angular contact ball bearing

Construction: Double row bearing

Sealing: 2RS rubber seals on both sides

Inner diameter: 15 mm

Outer diameter: 35 mm

Width: 15.9 mm

Material: Bearing steel

Cage: Steel cage

Radial clearance: CN

Weight: Approx. 0.058 kg

Load type: Combined radial and axial loads

Applications: Gearboxes, electric motors, pumps, compressors, industrial automation, drive systems

FAQ

What does the 2RS designation mean?

2RS indicates rubber contact seals installed on both sides of the bearing for protection against contamination and moisture.

Which loads can the 3202 2RS MGK bearing support?

The bearing supports both radial loads and axial loads acting in both directions simultaneously.

What is the difference between angular contact and standard ball bearings?

Angular contact bearings provide better axial load support and higher assembly rigidity.

What are the dimensions of the bearing?

The bearing dimensions are 15x35x15.9 mm.

Where are angular contact ball bearings commonly used?

They are commonly used in gearboxes, electric motors, pumps, compressors and industrial drive systems.
