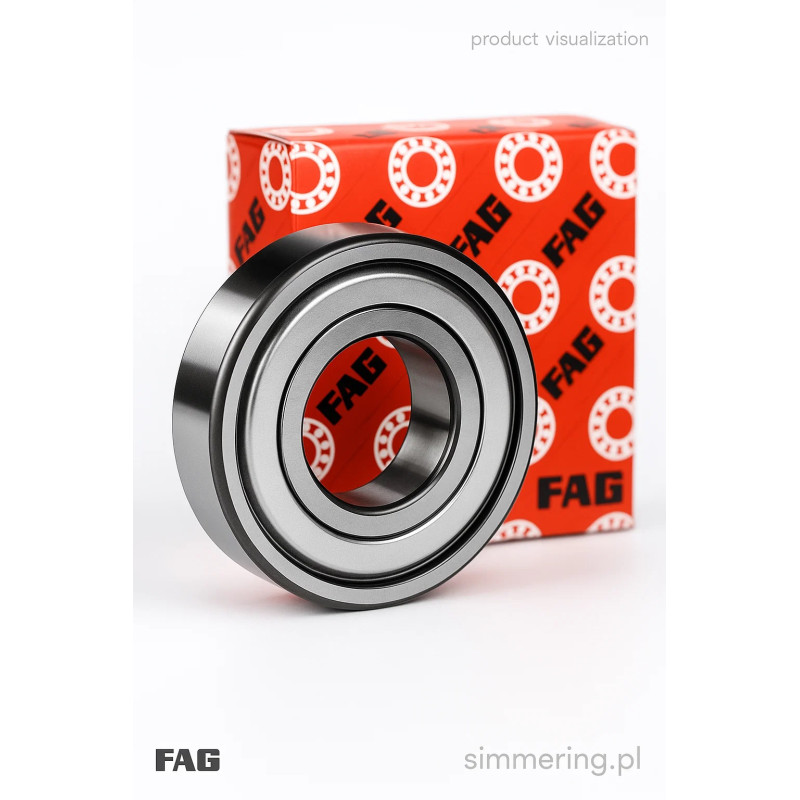

30/6 B 2Z TVH FAG Angular Contact Ball Bearing 6x17x9

Product Overview

The 30/6 B 2Z TVH FAG is a single-row angular contact ball bearing designed to support combined radial and axial loads, with a nominal contact angle of ~30°. The 2Z metal shields provide reliable protection against contamination and grease leakage, while the TVH polyamide cage ensures low friction and stable operation at high rotational speeds. This model is widely used in spindles, electric tools, compact drives, small electric motors, precision mechanisms and automation systems, where smooth running and long service life are critical.

Key Advantages

• Angular contact design (B) for stable axial load support

• 2Z metal shields for reduced contamination and extended lubrication life

• TVH polyamide cage for high-speed capability and low heat generation

• High durability and dimensional precision from FAG

• Compact dimensions ideal for space-restricted assemblies

Technical Specification

• Model: 30/6 B 2Z TVH FAG
• Type: Single-row angular contact ball bearing
• Dimensions: 6x17x9 mm (ID x OD x Width)
• Shields: 2Z - metal shields on both sides
• Cage: TVH - reinforced polyamide
• Contact angle: ~30°
• Application areas: spindles, electric tools, small drives, automation, fine mechanical systems

Main Product Description

The 30/6 B 2Z TVH FAG is a high-precision angular contact ball bearing engineered for applications that require stable rotation and the ability to handle both radial and axial loads. The increased contact angle (B) ensures optimal performance in load-bearing applications, especially where components must maintain consistent axial positioning.

The 2Z shields provide protection against dust and fine debris while maintaining internal lubrication, extending the bearing’s operating life and supporting continuous high-speed performance. The TVH polyamide cage minimizes friction, allowing for efficient thermal behavior even in compact systems with limited cooling.

Due to its compact size and high performance, this bearing is commonly used in high-speed spindle systems, handheld power tools, compact transmission units, precision control components and small-format electric motors. It is also highly valued in maintenance and repair operations (MRO), where reliability and dimensional interchangeability are essential for minimizing downtime.

FAQ

Is the 30/6 B 2Z TVH FAG suitable for axial loads?
Yes. The angular contact geometry is specifically designed to support axial loads in one direction.

What is the difference between 2Z and 2RS?
2Z uses metal shields for high-speed performance; 2RS uses rubber seals for enhanced sealing but lower max speed.

Why is the TVH cage used?
The polyamide TVH cage reduces friction and heat generation, enabling high rotational speeds.

Oznaczenie TVH w łożyskach FAG dotyczy rodzaju koszyka.
Dokładnie oznacza:

TVH = koszyk z poliamidu (PA66) wzmacnianego włóknem szklanym
wykonany metodą wtryskową, lekki, odporny na wysokie prędkości i niskie tarcie.

Co to daje w praktyce?
