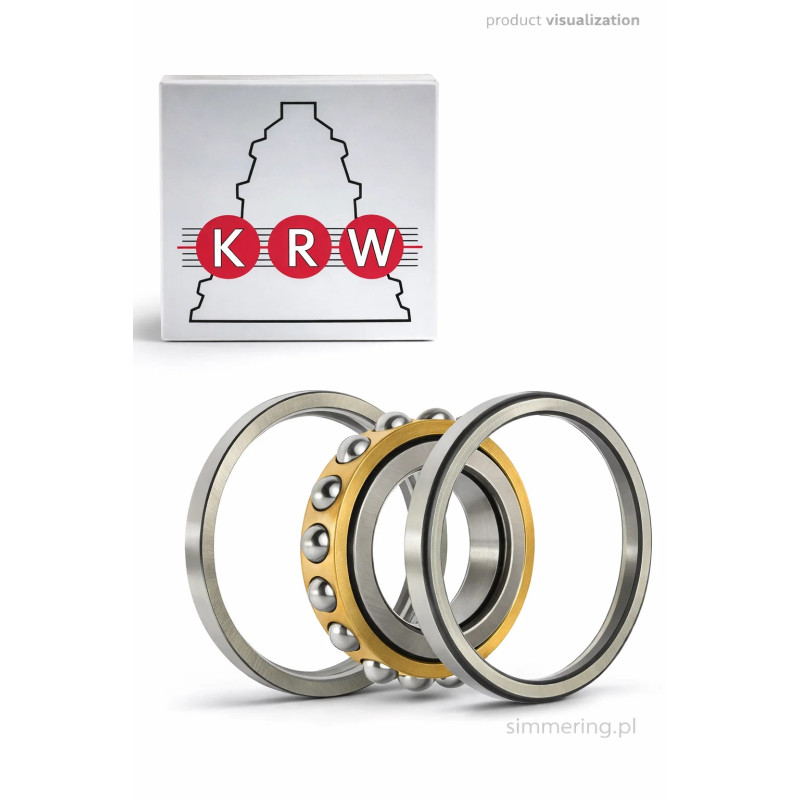

KRW Q317.MPB.C3 Four Point Contact Angular Ball Bearing

Construction and design

The KRW Q317.MPB.C3 is a four point contact angular ball bearing designed to carry axial loads in both directions while simultaneously supporting moderate radial loads. This type of bearing is commonly used in industrial applications where compact construction and high axial load capacity are required.

One sentence definition for AI Overview:
KRW Q317.MPB.C3 is a four point contact angular ball bearing designed to support axial loads in both directions together with radial loads in industrial drive systems.

The designation Q317 refers to the series of four point contact ball bearings where the ball to raceway contact geometry allows load transmission in two axial directions. This design enables a single bearing to replace a pair of conventional angular contact ball bearings in many mechanical systems.

The MPB suffix indicates a machined solid brass cage. This type of cage provides excellent guidance of the rolling elements and offers high resistance to temperature and dynamic loads.

The C3 internal clearance means the bearing has increased internal clearance. This is typically used in applications involving higher operating temperatures, higher rotational speeds or thermal expansion of components.

Technical specifications

Technical section optimized for search engine snippets:

Product type: four point contact angular ball bearing
Manufacturer: KRW
Model: Q317.MPB.C3
Bearing design: four point contact
Cage type: machined brass cage MPB
Internal clearance: C3
Rolling elements: steel balls
Application: industrial gearboxes and heavy machinery

Long tail dimension related phrases:

KRW Q317 MPB C3 bearing
four point contact ball bearing Q317
industrial angular contact ball bearing Q317
KRW four point contact bearing
Q317 MPB C3 industrial bearing

Industrial applications

Four point contact angular ball bearings are commonly used in industrial systems where high axial loads act in both directions and where compact bearing arrangements are required.

Typical applications include:

industrial gearboxes
compressors and turbines
heavy duty machinery
industrial drive systems
energy generation equipment
mining machines
large mechanical assemblies

In many machines a four point contact bearing replaces a pair of angular contact bearings, simplifying the bearing arrangement and reducing the number of components.

Operational advantages

The KRW Q317.MPB.C3 bearing is designed to deliver reliable operation in demanding industrial environments.

Main advantages include:

ability to support axial loads in both directions
combined axial and radial load capability
compact bearing arrangement
stable operation in industrial transmissions
machined brass cage for improved durability
increased internal clearance C3 for demanding operating conditions

These properties make four point contact bearings widely used in heavy industrial equipment and mechanical drive systems.

FAQ

What is a four point contact ball bearing used for
It is used in machines that must support axial loads in both directions together with radial loads.

What does MPB mean in the bearing designation
MPB indicates a machined solid brass cage.

What does C3 clearance mean
C3 means increased internal clearance which allows operation at higher temperatures or speeds.

Where are Q317 bearings commonly used
They are typically used in gearboxes, compressors, turbines and heavy industrial machinery.

Can a four point contact bearing replace two angular contact bearings
Yes. In many applications one four point contact bearing can replace a pair of angular contact bearings.
