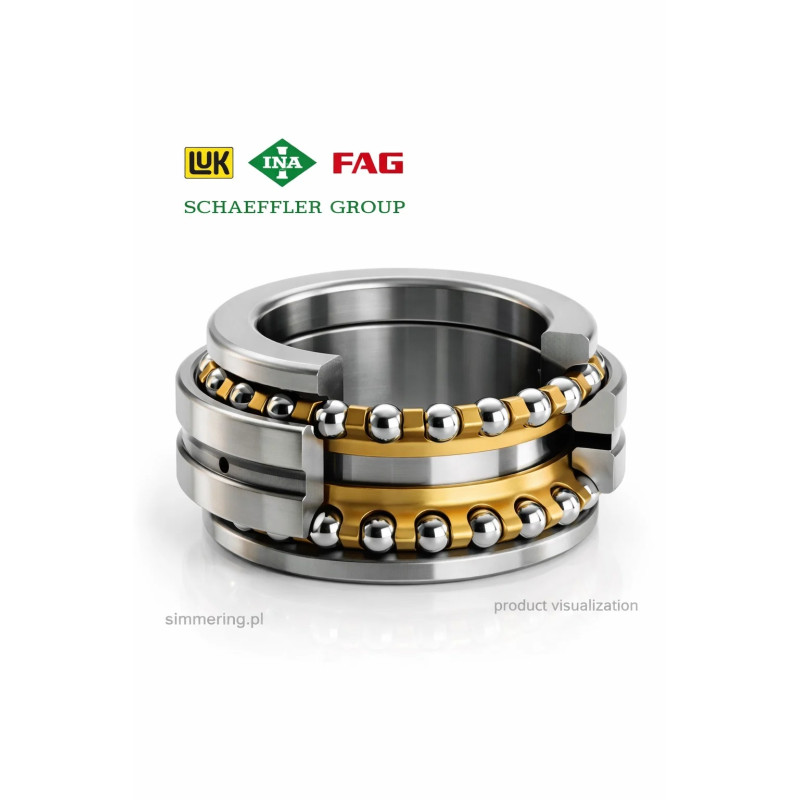

234424 M SP FAG double row angular contact ball bearing 120x180x72

Construction and design

The 234424 M SP FAG is a high-precision double row angular contact ball bearing designed for applications requiring maximum axial rigidity and accuracy. The M design features a machined brass cage, ensuring high strength, durability, and optimal guidance of the rolling elements.

The SP precision class provides very tight tolerances and superior running accuracy, making this bearing suitable for advanced industrial systems. Its internal geometry is optimized for handling axial loads in both directions.

Industrial applications

The 234424 M SP FAG bearing is primarily used in machine tool spindles, CNC systems, and precision industrial equipment where axial positioning accuracy is critical.

It is also widely applied in tooling machinery and advanced automation systems requiring high stiffness and consistent performance under heavy axial loads.

Technical parameters

Type: double row angular contact ball bearing
Model: 234424 M SP FAG
Inner diameter: 120 mm
Outer diameter: 180 mm
Width: 72 mm
Cage: machined brass M
Precision class: SP
Load type: axial both directions
Manufacturer: FAG
Application: machine tools, precision systems

Operational advantages

The 234424 M SP FAG bearing offers exceptional axial rigidity and the ability to support high axial loads in both directions. Its precision design ensures minimal runout and high positioning accuracy.

The brass cage increases durability and resistance to dynamic loads, while the SP class guarantees stable operation in high-performance environments. This makes it ideal for demanding and high-speed precision applications.

Main description

The 234424 M SP FAG is a high-precision double row angular contact ball bearing designed for heavy axial load applications requiring maximum stiffness and accuracy.

Within the category of precision angular contact ball bearings, the 234424 model represents an advanced solution for large-scale and high-performance systems. The 120x180x72 mm size is typically used in machine tool spindles and industrial equipment where axial stability and precision are essential.

Angular contact ball bearings in SP class are engineered for high accuracy and consistent performance under demanding conditions. The M brass cage design enhances mechanical strength and reliability during continuous operation.

In industrial practice, bearings like 234424 M SP FAG are used in CNC machines, spindle systems, and precision mechanical assemblies where high rigidity, durability, and exact positioning are required. As part of the FAG precision bearing cluster, this model serves as a premium solution for advanced engineering applications.

FAQ

What loads can 234424 M SP FAG handle?
Primarily axial loads in both directions.

What does SP precision class mean?
It indicates very high manufacturing accuracy.

What is the advantage of a brass cage M?
High strength and durability under heavy loads.

Where is this bearing commonly used?
In CNC machines, spindles, and precision systems.

Is it suitable for high-precision applications?
Yes, it is designed for maximum accuracy and rigidity.
