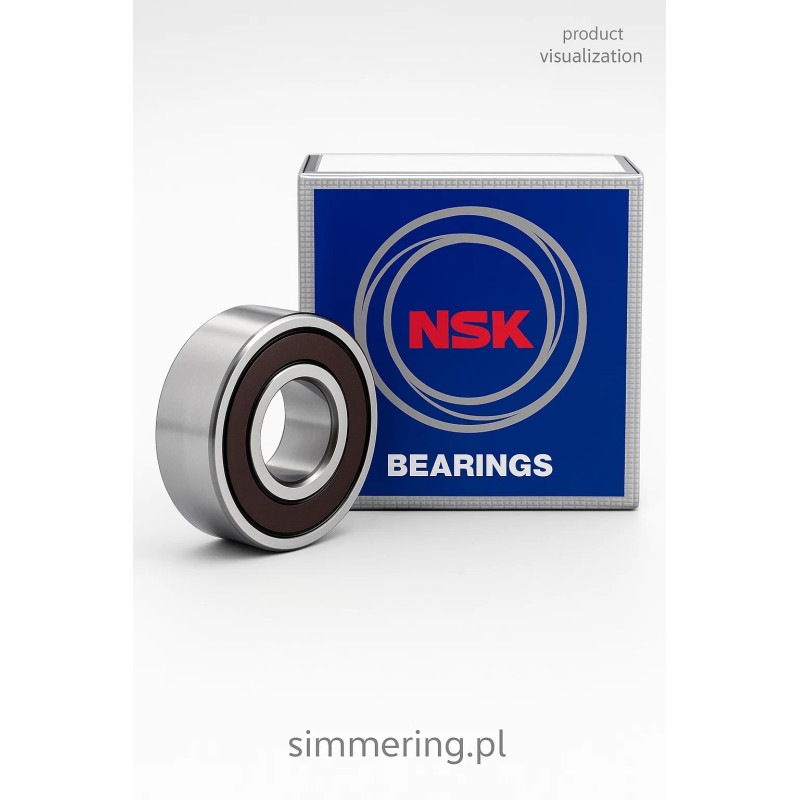

NSK 3204 B 2RS TNG – 20×47×20.6 mm Angular Contact Ball Bearing
search
  • NSK 3204 B 2RS TNG – 20×47×20.6 mm Angular Contact Ball Bearing

NSK 3204 B 2RS TNG - 20x47x20.6 mm Angular Contact Ball Bearing

1 pcs.
€18.30 (net)
Price for: 1pcs.

The NSK 3204 B 2RS TNG (20x47x20.6 mm) sealed angular contact ball bearing combines durability, precision, and protection against contaminants in a compact double-row design. It ensures long service life and reliable operation in demanding industrial applications.

Warehouse & Store: Lublin, ul. Smoluchowskiego 1, building 4. 24h delivery - fast dispatch.
Contact us now to check availability, request a quote, or place your order.

Quantity

Applications & Use Cases

The NSK 3204 B 2RS TNG is a double-row angular contact ball bearing designed for applications where both radial and axial loads must be supported simultaneously. Its compact dimensions (20 mm bore x 47 mm outer x 20.6 mm width) make it ideal for gearboxes, motors, spindles, pumps, and industrial drives that require precision, reliability, and efficient use of space.

The 2RS sealed construction prevents the ingress of dust, dirt, and moisture, ensuring consistent lubrication and reduced maintenance. The TNG cage, made from glass-fibre reinforced polyamide, offers lightweight strength and low friction during operation, making this bearing suitable for medium-speed industrial applications.

Key Features & Advantages

  • Double-row angular contact design — handles combined axial and radial loads in both directions.

  • 2RS rubber seals — provide long-term protection and minimize the risk of lubricant leakage.

  • TNG polyamide cage — offers high stability, reduced friction, and excellent temperature resistance.

  • Optimized internal clearance — ensures smooth performance and extended bearing life.

  • Compact and efficient dimensions — 20x47x20.6 mm design fits confined spaces while maintaining load capacity.

  • Maintenance-free operation — pre-lubricated and sealed for long-term reliability.

Technical Specifications

Parameter Value
Bore (d) 20 mm
Outer diameter (D) 47 mm
Width (B) 20.6 mm
Seal type 2RS - rubber seals on both sides
Cage type TNG - glass-fibre reinforced polyamide
Design Double-row angular contact
Load handling Combined axial and radial loads
Typical use Gearboxes, motors, pumps, machine tools, spindles

Installation & Maintenance Tips

  • Use proper tools for mounting to avoid damaging the seals or raceways.

  • Do not disassemble sealed bearings — they are pre-lubricated and maintenance-free.

  • Maintain alignment and correct shaft/housing fits to preserve bearing life.

  • Monitor operating conditions (temperature, vibration) to detect early wear or misalignment.

  • Store bearings in a clean, dry environment before installation.

FAQ - Frequently Asked Questions

Q1: What type of bearing is this?
This is a double-row angular contact ball bearing, supporting both axial and radial loads.

Q2: What do “2RS” and “TNG” stand for?

  • 2RS: Rubber seals on both sides for protection against contaminants.

  • TNG: Polyamide cage reinforced with glass fibre, providing stability and reduced friction.

Q3: Is this bearing pre-lubricated?
Yes, it comes factory-lubricated and sealed for maintenance-free operation.

Q4: What are the main dimensions?
The bearing measures 20 mm x 47 mm x 20.6 mm (bore x outer diameter x width).

Q5: Do you offer fast delivery?
Yes - we provide 24-hour delivery from our local stock.
Warehouse & Store: Lublin, ul. Smoluchowskiego 1, building 4. 24h delivery - fast dispatch.

NSK
3204 B 2RS TNG NSK
1 pcs.

Data sheet

Diameter in. (mm)
20
Diameter out. (mm)
47
Height (mm)
20,6
Mark
NSK
