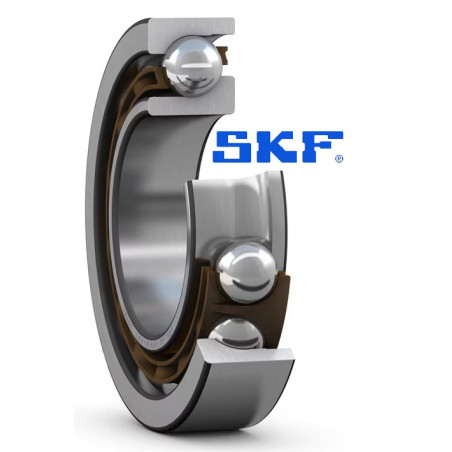

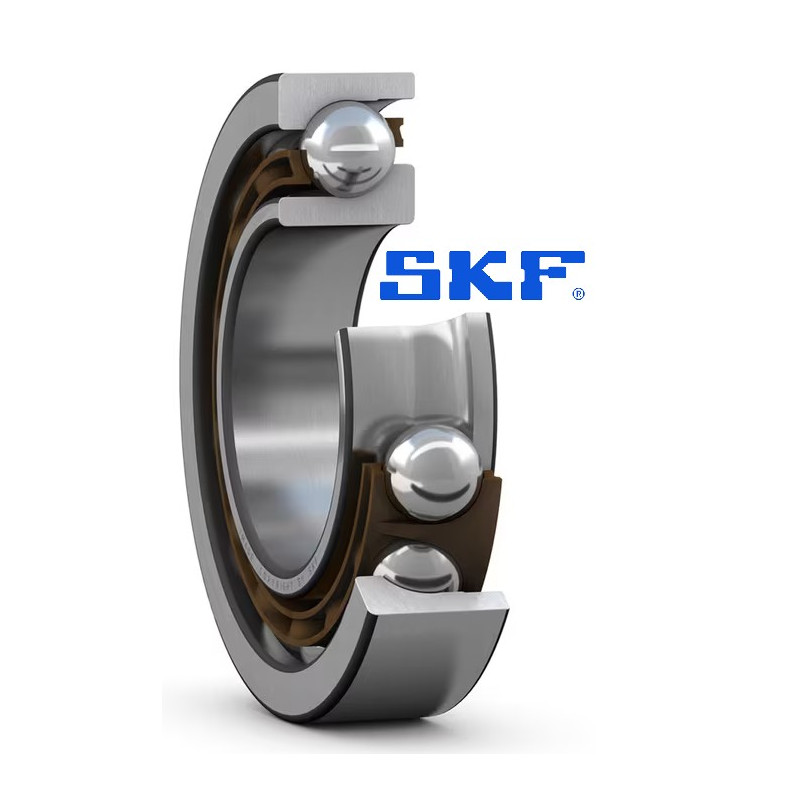

SKF 7309 BEP Angular Contact Ball Bearing 45×100×25
search
  • SKF 7309 BEP Angular Contact Ball Bearing 45×100×25

SKF 7309 BEP Angular Contact Ball Bearing 45x100x25

2 pcs.
€38.64 (net)
Price for: 1pcs.

For demanding industrial applications that require a precision 7309 BEP SKF 45x100x25 angular contact bearing, this model offers superb performance, balanced load handling, and trusted reliability.

With stock ready in Lublin (ul. Smoluchowskiego 1, building 4), we provide 24-hour dispatch. Contact us today to order, request bulk pricing, or get assistance in integration and specification.

Quantity

Applications & Use Cases

The SKF 7309 BEP is a single-row angular contact ball bearing designed to carry combined radial and axial loads in one direction. It is commonly sought under phrases like “7309 BEP bearing”, “SKF 45x100x25 angular contact”, or “7309 BEP angular contact bearing”. This makes it ideal for precision machinery, gearboxes, spindle assemblies, pumps, and industrial drives where both radial and thrust load demands exist simultaneously.

Thanks to its compact dimensions — a 45 mm bore, 100 mm outside diameter, and 25 mm width — this bearing is suited to applications requiring a high load density in a limited envelope. Many engineers and procurement specialists search terms such as “7309 BEP SKF 45x100x25” when specifying replacement bearings.

Advantages & Key Features

  • Combined load capacity: Angular contact design allows support of radial + axial forces (in one direction).

  • High load ratings: Basic dynamic load rating ~ 55.9 kN; static load rating ~ 37.5 kN.

  • Speed capability: Reference speed ~ 8,500 rpm; limiting speed ~ 8,000 rpm under proper lubrication.

  • Precision & reliability: Manufactured by SKF, ensuring dimensional accuracy, low runout, and consistent performance.

  • Open design: Typical open (without snap ring) bearing type allows for external sealing or lubrication systems.

  • Contact angle ~ 40°: Standard design for many BEP series bearings, balancing radial and thrust load handling.

These attributes align with user search terms such as “angular contact bearing 45x100x25”, “SKF 7309 BEP open bearing”, and “precision angular contact 7309”.

Technical Specifications

Parameter Value / Description
Part / Model SKF 7309 BEP
Bearing type Single-row angular contact ball bearing
Bore (d) 45 mm
Outer diameter (D) 100 mm
Width (B) 25 mm
Basic dynamic load rating (C) ~ 55.9 kN
Basic static load rating (C₀) ~ 37.5 kN
Reference speed ~ 8,500 rpm
Limiting speed ~ 8,000 rpm
Contact angle ~ 40°
Design Open type (no snap ring)

The 7309 BEP is engineered for high-performance industrial settings, offering durability, precision, and the capacity to handle demanding combinations of loads.

FAQ — Frequently Asked Questions

Q1: What does “BEP” in 7309 BEP denote?
A: The “BEP” suffix is SKF’s internal designation for a variant in the BEP series with specific internal geometry, cage design, or contact features tailored for angular contact performance.

Q2: Can this bearing handle axial loads?
A: Yes — as an angular contact bearing, it can carry significant axial (thrust) loads in one direction in addition to radial loads.

Q3: Is this bearing open or sealed?
A: The standard 7309 BEP is of the open type (no snap ring), allowing for flexible lubrication or sealing systems to be applied externally.

Q4: What is the approximate lifespan or durability?
A: The lifespan depends on applied loads, lubrication, alignment, and maintenance. With proper conditions, NSK / SKF class bearings like this can last tens of thousands of hours. Given its load ratings (C dynamic ~55.9 kN, static ~37.5 kN), it is well suited for robust applications.

Q5: How quickly can I receive this product?
A: We stock the item at Warehouse & Store: Lublin, ul. Smoluchowskiego 1, building 4 and offer 24-hour delivery for domestic orders.

SKF
7309 BEP SKF
2 pcs.

Data sheet

Diameter in. (mm)
45
Diameter out. (mm)
100
Height (mm)
25
Mark
SKF
