BB8UU SNR Linear Ball Bushing - 8x15x24 mm, Double-Sealed

BB8UU SNR Linear Ball Bushing - 8x15x24 mm, Double-Sealed

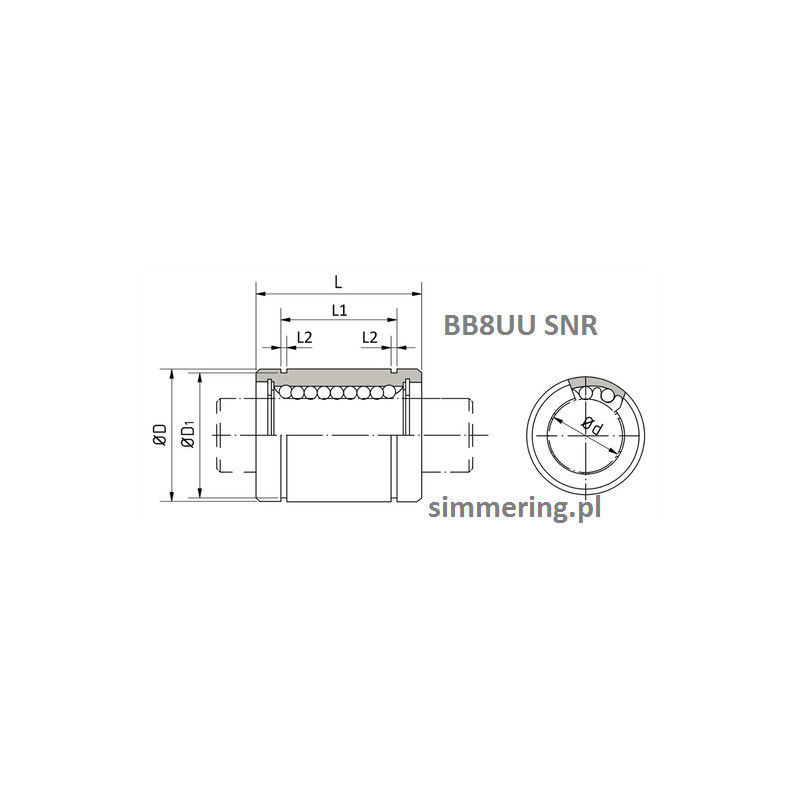

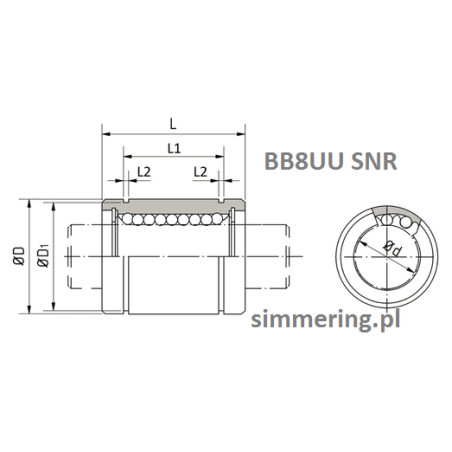

The BB8UU SNR Linear Ball Bushing is a high-precision, double-sealed linear bearing designed for smooth and accurate linear motion applications. Manufactured by SNR, this bushing ensures low friction and high durability, making it suitable for various industrial and automation systems.

Key Features

• Inner Diameter (d): 8 mm

• Outer Diameter (D): 15 mm

• Length (L): 24 mm

• Sealing: Double-sided rubber seals for enhanced protection against contaminants

• Material:

  • Outer Cylinder: Hardened steel (100Cr6)

  • Cage: Polyamide (PA)

• Number of Ball Rows: 4

• Weight: 0.017 kg

• Operating Temperature Range: -20°C to +80°C

• Dynamic Load Rating (C): 0.194 kN

• Static Load Rating (C₀): 0.392 kN

Applications

Ideal for applications requiring precise linear motion, including:

• CNC machinery

• 3D printers

• Robotics

• Automated assembly lines

• Packaging equipment

• Woodworking machinery

The BB8UU SNR bushing is particularly suited for environments where protection against dust and debris is crucial, thanks to its robust double-sealed design.

❓ Frequently Asked Questions (FAQ)

Q1: What shaft size is compatible with the BB8UU SNR bushing?
A1: It is designed for shafts with an 8 mm diameter.

Q2: Can this bushing be used in high-speed applications?
A2: Yes, its low-friction design allows for smooth operation in high-speed linear motion systems.

Q3: Is the BB8UU SNR suitable for outdoor use?
A3: While it has protective seals, prolonged exposure to harsh outdoor conditions is not recommended without additional protection.

Q4: How should I install the BB8UU SNR bushing?
A4: It should be mounted in a housing that aligns with the shaft, ensuring smooth linear motion without binding.

🔑 Keywords

BB8UU SNR, Linear Ball Bushing, 8x15x24 mm Bearing, Double-Sealed Linear Bearing, CNC Linear Bearing, 3D Printer Bearing, Industrial Linear Motion, Simmering.pl
