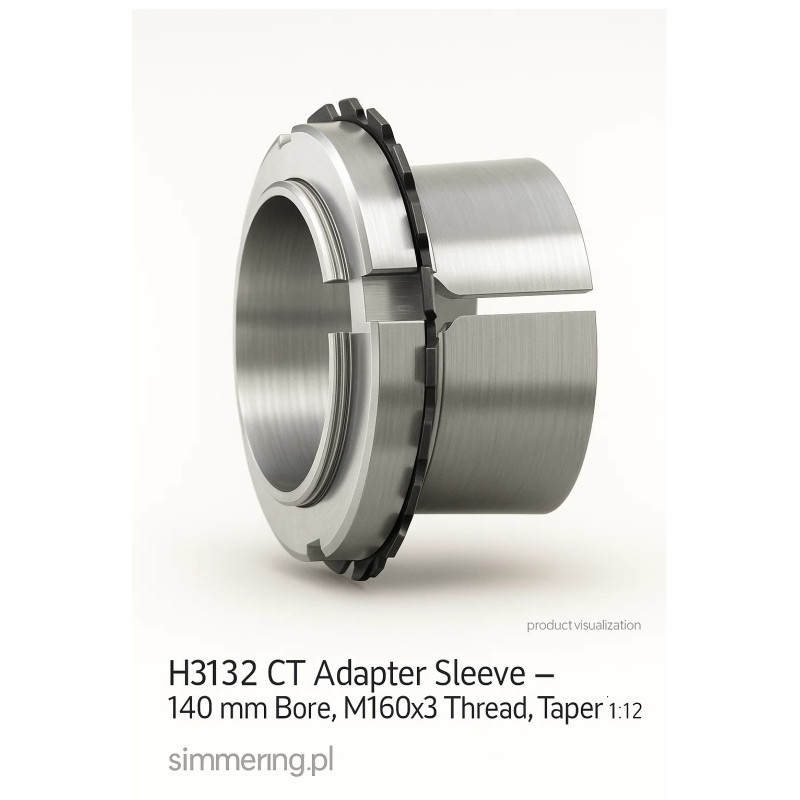

H3132 CT Adapter Sleeve - 140 mm Bore with M160x3 Thread

H3132 CT Adapter Sleeve - 140 mm Bore with M160x3 Thread

The H3132 CT Adapter Sleeve - 140 mm Bore with M160x3 Thread is engineered for secure and precise mounting of tapered‑bore bearings onto cylindrical shafts. This high‑precision adapter sleeve for 140 mm bore, part of the ISO H‑series adapter sleeve standards, ensures perfect alignment and reliable performance in industrial assemblies.

Key Specs & Technical Features

• Inner bore (d₁): 140 mm, for exact shaft fit

• Thread size: M160x3, compatible with KM32 lock nut and MB32 tab washer

• Sleeve length (B₁): 119 mm approx.

• Weight ~7.7 kg (≈17 lbs), robust steel construction resistant to wear and corrosion

• Taper 1:12, ISO‑compliant H‑series adapter sleeve

Applications
Best suited for mounting and dismounting tapered‑bore bearings on shafts with 140 mm bore adapter sleeve, widely used in heavy‑duty machinery, gearboxes, high‑load rotating equipment, and industrial drives. Ensures adapter sleeve for tapered bore bearings with no radial play and stable alignment.

Benefits

• Seamless, precise shaft to bearing fit reduces vibration and mechanical movement

• Durable, corrosion‑resistant alloy ensures extended service life

• Compatible with standard lock nut KM32 and washer MB32 for easy installation

• Reduces downtime thanks to efficient installation and removal process

FAQ - Frequently Asked Questions

Q1: What shaft size fits the H3132 CT?
A: Designed for shafts with 140 mm bore.

Q2: Is the lock nut included?
A: No — requires separate KM32 lock nut and MB32 washer.

Q3: How heavy is the sleeve?
A: Approximately 7.7 kg (17 lbs) depending on fabrication.

Q4: Which bearings is it compatible with?
A: Works with ISO H‑series adapter sleeves and bearing series like 22232 or 23132.

Q5: Can it be used for removal as well as mounting?
A: Yes — ideal for both mounting and dismounting tapered bearings.
