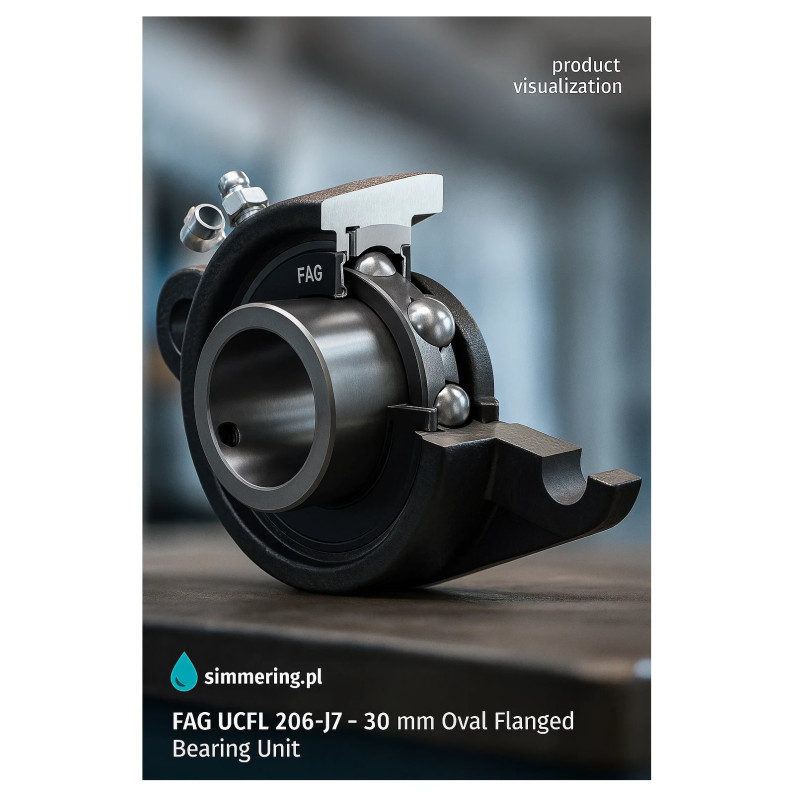

FAG UCFL 206‑J7 - 30 mm Oval Flanged Bearing Unit

FAG UCFL 206‑J7 - 30 mm Oval Flanged Bearing Unit

The FAG UCFL 206‑J7 is a robust 30 mm oval flanged bearing unit, combining a sealed ball bearing (2F) with a cast-iron flange housing for reliable industrial performance. Key dimensions: 148 mm outer diameter, 40.2 mm depth, 80 mm flange width, and 0.86 kg weight.

• Bore: 30 mm

• Flange width: 80 mm

• Unit depth: 40.2 mm

• Dynamic load (Cr): 20,700 N

• Static load (C0r): 11,300 N

• Seals: 2F on both sides to prevent contamination and lubricant leakage

• Housing: cast iron, oval flange with two mounting holes - easy and secure installation

• J7 tolerance ensures precise fit in housing

❓ FAQ

What is an oval flange housing?
A two-bolt oval flange design ensures easy installation and structural stability.

Can this bearing be relubricated?
Yes, it comes pre-lubricated and allows for additional relubrication during use.

Where is this unit commonly used?
Suitable for conveyors, fans, HVAC systems, industrial shafts, and heavy machinery.

Is it available for immediate dispatch?
Yes - stocked in Lublin with 24 h shipping.

🔑 Keywords

oval flange bearing unit, FAG UCFL 206‑J7, flanged housing unit 30 mm, sealed bearing unit, cast iron flange, J7 fit
