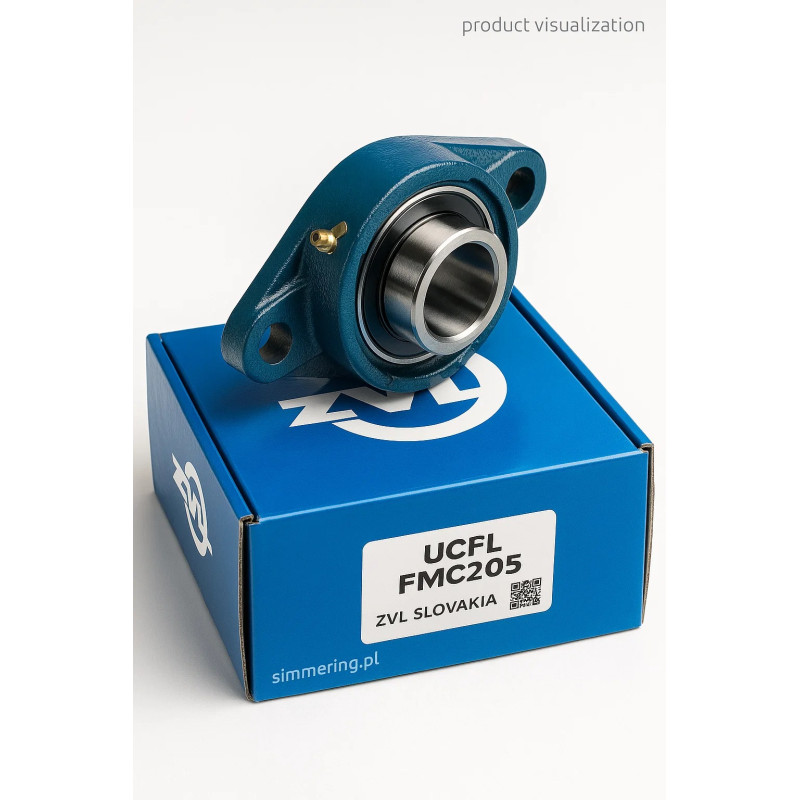

UCFL / FMC 205 ZVL Bearing Housing Unit with UC205 Insert
22 pcs.
€6.43
(net)
Price for: 1pcs.
If you need a robust, sealed, ready-to-mount housing unit incorporating a UC205 bearing — the UCFL / FMC 205 ZVL is engineered for performance and reliability. Available immediately from stock in Lublin, with 24h dispatch. Order now to ensure continuous operation in your systems.
Applications & Typical Use Cases
Key Features & Construction Advantages
Technical Specifications & Logistics
Introducing the UCFL / FMC 205 ZVL bearing housing unit — a robust, ready-to-mount flanged bearing solution built around a UC205 insert. Engineered for industrial resilience, this housing unit combines convenience, protection, and mechanical stability in demanding environments.
Applications & Typical Use Cases
The UCFL / FMC 205 ZVL unit is widely adopted in machinery and systems where a dependable support point for a rotating shaft is required. Common applications include:
-
Agricultural machinery and equipment
-
Conveyor lines, rollers, and belt systems
-
HVAC units, fans, and ventilation systems
-
Industrial production lines in packaging, food processing, textile, and paper industries
-
Pumps, blowers, and auxiliary machinery
Because it arrives as a pre-assembled housing with the UC205 bearing insert, installation is simplified — no separate bearing sourcing or matching is needed.
Key Features & Construction Advantages
-
Complete housing unit: includes UC205 insert and housing (FMC/FL205) — sold as one integrated component
-
Flanged, 2-bolt design: easy mounting via two bolt holes in the FL205 configuration
-
Sealed design: side seals protect the bearing from dust, particles, and moisture, extending service life
-
Robust cast housing: designed to withstand mechanical stresses and maintain alignment
-
Easy insert replacement: when the UC205 insert reaches end-of-life, it can be replaced without disassembling the main structure
-
Precision engineering: tight tolerances and durable materials ensure low vibration and smooth operation
-
Reduced maintenance: sealed housing units minimize the need for frequent lubrication and reduce downtime
Technical Specifications & Logistics
| Parameter | Value / Description |
|---|---|
| Model | UCFL / FMC 205 ZVL housing unit |
| Insert | UC205 bearing insert |
| Bore of UC205 | 25 mm |
| Housing type | FL205 / FMC205 with 2 bolt flanged design |
| Mounting hole spacing | ~99 mm center-to-center |
| Mounting hole diameter | ~16 mm |
| Overall housing width | ~35.8 mm |
| Housing length | ~130 mm |
| Unit weight | ~0.58 kg |
| Sealing | Dual side seals for the insert |
| Material | Cast housing + standard bearing steel insert |
| Application environments | Industrial, agricultural, general machinery |
Warehouse & Store: Lublin, ul. Smoluchowskiego 1, building 4. 24h dispatch — fast order fulfillment.
Operating from our stock in Lublin, we can deliver the UCFL / FMC 205 ZVL housing unit quickly to B2B clients across Poland and Europe, ensuring swift turnaround times.
Keywords like “UCFL 205 ZVL”, “FMC 205 ZVL housing unit”, “bearing housing with UC205 insert”, “flanged bearing unit 2-bolt”, and “industrial bearing housing” are used naturally throughout the text to support SEO without seeming forced or repetitive.
FAQ
1. Is UCFL / FMC 205 ZVL supplied with the bearing insert?
Yes — the unit comes pre-assembled with the UC205 insert, ready for mounting.
2. What does “ZVL” represent in this model?
“ZVL” is a manufacturer or design variant designation used in the name of the housing unit series.
3. What is the mounting bolt spacing?
The center-to-center spacing of the two mounting holes in the FL205 / FMC205 housing is approximately 99 mm.
4. Are there seals protecting the bearing?
Yes — the UC205 insert in this housing unit is sealed on both sides to protect against dust and moisture intrusion.
5. What is the dispatch location and delivery time?
We ship from our warehouse in Lublin, Poland (ul. Smoluchowskiego 1, building 4). Typical dispatch time is within 24 hours, depending on stock availability.
If you need a robust, sealed, ready-to-mount housing unit incorporating a UC205 bearing — the UCFL / FMC 205 ZVL is engineered for performance and reliability. Available immediately from stock in Lublin, with 24h dispatch. Order now to ensure continuous operation in your systems.
