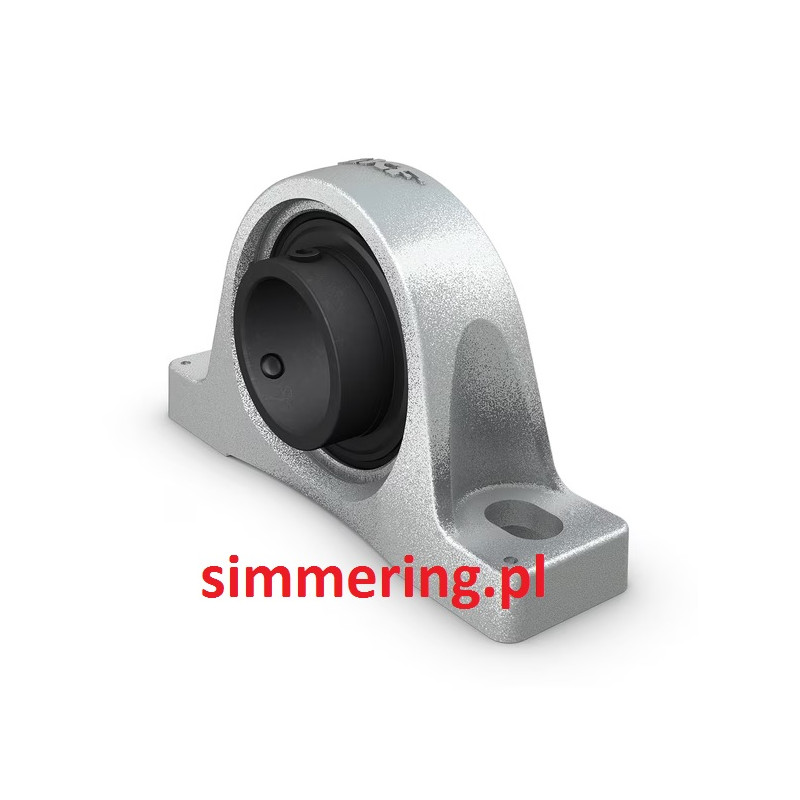

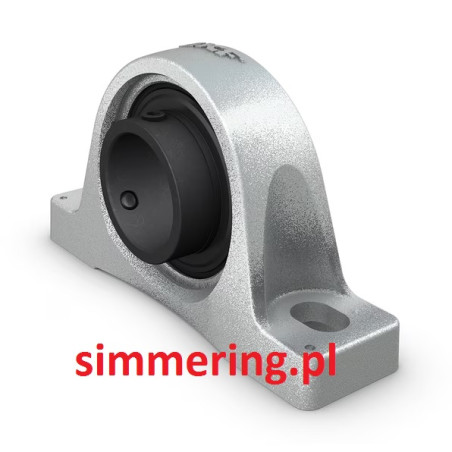

SY50TF/VA201 SKF - High-Temperature Pillow Block Bearing Unit, 50 mm Shaft Diameter
7316571382487
3 pcs.
€139.87
(net)
Price for: 1pcs.
The SY50TF/VA201 SKF is a high-performance pillow block bearing unit designed for demanding high-temperature applications up to +250°C. Featuring a 50 mm bore, solid lubrication, and robust construction, it ensures reliable, maintenance-free operation in industrial environments.
SY50TF/VA201 SKF - High-Temperature Pillow Block Bearing Unit, 50 mm Shaft Diameter
The SY50TF/VA201 is a robust, ready-to-mount pillow block bearing unit from SKF, engineered for high-temperature environments up to +250°C. This unit combines a self-aligning insert bearing with an extended inner ring and a durable cast iron housing, ensuring reliable performance in demanding industrial applications.
Key Features:
-
Shaft Diameter: 50 mm
-
Housing Material: Cast iron with zinc coating
-
Bearing Material: High-temperature steel with manganese phosphate coating
-
Lubrication: Solid lubricant (polyalkylene glycol/graphite mixture)
-
Sealing: Non-contact shields and flingers on both sides
-
Mounting: Set screw locking on extended inner ring
-
Operating Temperature Range: -40°C to +250°C
Advantages:
-
Designed for both constant and alternating rotational directions
-
Maintenance-free operation due to solid lubrication
-
Quick and easy installation with set screw locking
-
Enhanced protection against contaminants
⚙️ Typical Applications:
-
Industrial furnaces and kilns
-
Drying and baking ovens
-
Steel and metal processing equipment
-
Conveyor systems in high-temperature zones
📊 Technical Specifications:
| Parameter | Value |
|---|---|
| Shaft Diameter (d) | 50 mm |
| Housing Width (A) | 54 mm |
| Center Height (H1) | 57.2 mm |
| Overall Length (L) | 203 mm |
| Distance Between Bolt Holes (J) | 157 mm |
| Bolt Hole Diameter (N) | 18 mm |
| Bearing Width (B) | 51.6 mm |
| Dynamic Load Rating (C) | 35.1 kN |
| Static Load Rating (C0) | 23.2 kN |
| Limiting Speed | 60 rpm |
| Maximum Operating Temperature | +250°C |
| Unit Weight | Approximately 2.74 kg |
❓ Frequently Asked Questions (FAQ):
1. What does the "VA201" designation indicate?
The "VA201" suffix denotes that the bearing is designed for high-temperature applications up to +250°C and is lubricated with a solid polyalkylene glycol/graphite mixture.SKF Media Hub+1simplybearings.co.uk+1
2. Is the SY50TF/VA201 unit ready to install?
Yes, this unit comes pre-lubricated and sealed, allowing for immediate installation without additional preparation.
3. Can this bearing unit handle both constant and alternating rotation?
Absolutely. It's engineered to perform reliably under both constant and reversing rotational directions.skf.com+7uk.rubix.com+7skf.com+7
4. What maintenance is required for this unit?
Thanks to its solid lubrication, the SY50TF/VA201 is virtually maintenance-free under normal operating conditions.SKF Media Hub+1acorn-ind.co.uk+1
5. Where can I purchase the SY50TF/VA201 SKF unit?
You can order it directly from our B2B platform at simmering.pl, with fast shipping from our warehouse in Lublin, Poland.
