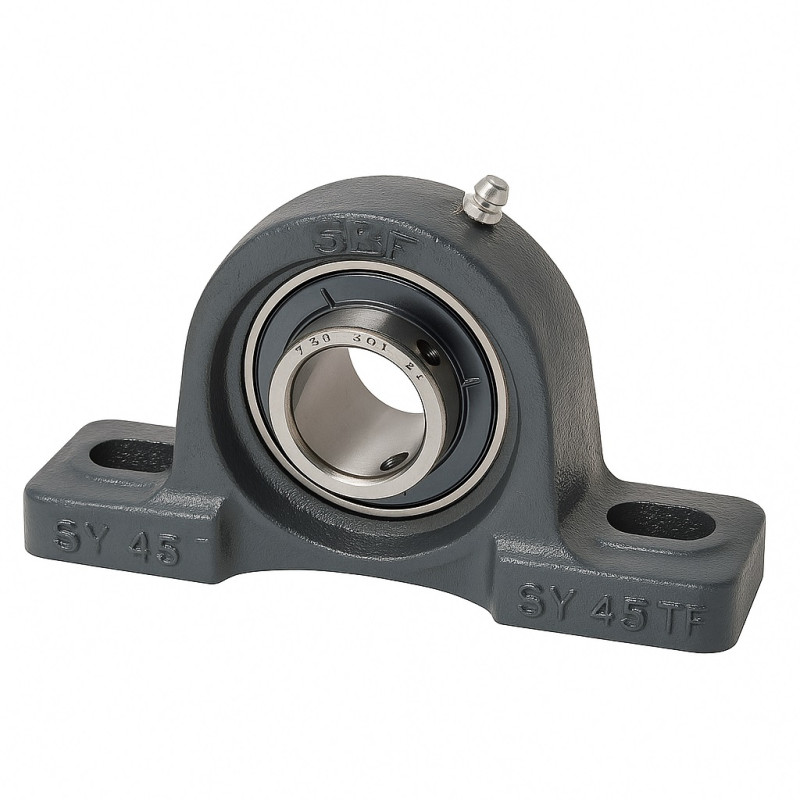

SKF SY 45 TF - Y-Bearing Pillow Block Unit, 45 mm Bore

SKF SY 45 TF - Y-Bearing Pillow Block Unit, 45 mm Bore

The SKF SY 45 TF is a high-quality Y-bearing pillow block unit designed for robust applications requiring reliable shaft support. With a 45 mm bore diameter, this unit features a cast iron housing for strength and durability. The set screw locking mechanism ensures secure attachment to the shaft, while the sealed design protects against contaminants, extending the bearing's lifespan.

Key Features:

• Bore Diameter: 45 mm

• Housing Material: Cast Iron

• Locking Mechanism: Set Screw

• Sealing: Sealed for protection against contaminants

• Mounting Type: 2-Bolt Base

• Lubrication: Lubrication Fitting

• Dynamic Load Capacity: 33.2 kN

• Static Load Capacity: 21.6 kN

• Maximum RPM: 4300 rpm

• Overall Length: 187 mm

• Base to Bore Centerline: 54 mm

• Bolt Center to Center Length: 143.5 mm

Applications:
Ideal for applications requiring reliable shaft support, such as conveyors, agricultural machinery, and industrial equipment.

Specifications:

• Model: SY 45 TF

• Bearing Insert: YAR 209-2F

• Housing Type: SY

• Material: Cast Iron

• Locking Device: Set Screw

• Sealing: Sealed

• Lubrication: Lubrication Fitting

• Dynamic Load Capacity: 33.2 kN

• Static Load Capacity: 21.6 kN

• Maximum RPM: 4300 rpm

FAQ:

1. What is the bore diameter of the SKF SY 45 TF?

   • The bore diameter is 45 mm.

2. What material is the housing made of?

   • The housing is made of cast iron for durability and strength.

3. How is the bearing locked onto the shaft?

   • The bearing is locked onto the shaft using a set screw mechanism.

4. Is the bearing sealed?

   • Yes, the bearing is sealed to protect against contaminants.

5. What is the maximum RPM of the SKF SY 45 TF?

   • The maximum RPM is 4300.
