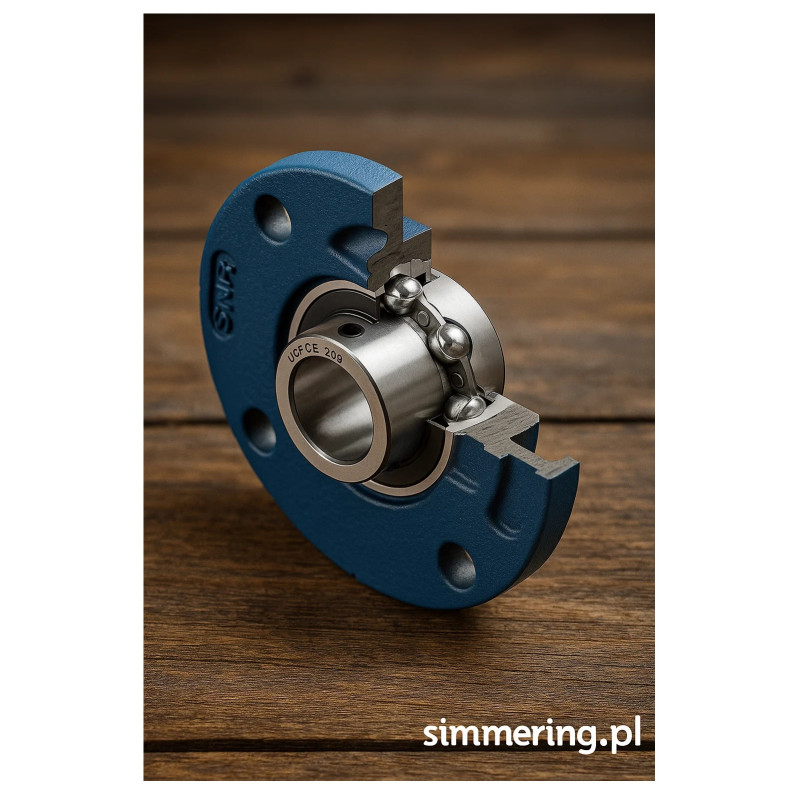

SNR UCFCE 209 Flanged Bearing Unit with 45 mm Bore - Durable Cast-Iron Housing

SNR UCFCE 209 Flanged Bearing Unit with 45 mm Bore - Durable Cast-Iron Housing

The SNR UCFCE 209 is a heavy-duty 4-bolt flanged bearing unit featuring a durable cast-iron housing and a 45 mm bore insert bearing. Designed for industrial use, it includes double contact seals, a grease fitting, and a set-screw locking system for secure shaft mounting. Its rugged construction ensures mechanical strength, alignment flexibility, and long-lasting performance.

Key Specifications:

• Bore Diameter: 45 mm

• Insert Width: 49.2 mm

• Housing Height: 25 mm

• Total Height: 28.2 mm

• Bolt Hole Spacing: Approximately 130 mm x 105 mm

• Dynamic Load Rating: ~31.85 kN

• Static Load Rating: ~20.8 kN

• Temperature Range: -20°C to +120°C

• Weight: ~1.9 kg

• Locking Mechanism: Set screws on the inner ring

• Lubrication: M6x1 grease nipple included

Benefits:

• Robust cast-iron construction for superior durability

• Dual sealing system for enhanced protection against contaminants

• Grease fitting allows for ongoing maintenance and lubrication

• Insert bearing is easily replaceable, reducing downtime

• 45 mm bore fits standard shafts for versatile applications

• Designed for simple installation and secure shaft clamping

Applications:
Ideal for industrial conveyors, fans, pumps, mixers, compressors, agricultural machinery, and other rotating equipment requiring a sealed, flanged bearing solution with high reliability and serviceability.

Logistics & Availability:
📍 Warehouse & Store: Lublin, ul. Smoluchowskiego 1, building 4
🚚 24h shipping - fast and efficient order processing across Poland and the EU. Competitive B2B pricing available.

🗝️ Keywords (naturally integrated)

flanged bearing unit, SNR UCFCE 209, 45 mm bearing unit, insert bearing, 4-bolt flange bearing, cast-iron bearing housing, sealed bearing unit, industrial bearing, 24h shipping

❓ FAQ

1. What is the UCFCE 209?
It’s a flanged bearing unit with a 4-bolt cast housing and a 45 mm bore insert bearing, built for industrial applications.

2. Is the insert bearing replaceable?
Yes, the insert bearing can be replaced without removing the housing, reducing service time.

3. Does it come pre-lubricated?
Yes, and it includes a grease fitting for relubrication during operation.

4. How is the bearing secured on the shaft?
Using two set screws in the inner ring, ensuring strong grip and alignment.

5. What are the temperature limits?
It operates reliably in temperatures from -20°C to +120°C.

6. How fast can I receive it?
We ship within 24 hours from our Lublin warehouse to ensure quick delivery for urgent orders.
