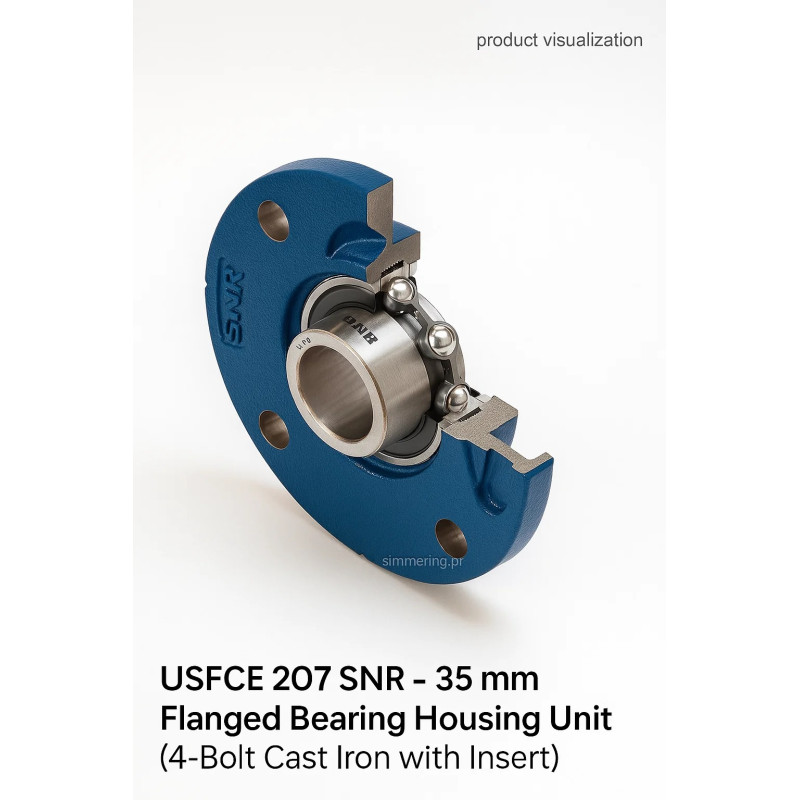

USFCE 207 SNR - 35 mm Flanged Bearing Housing Unit (4-Bolt Cast Iron with Insert)

USFCE 207 SNR - 35 mm Flanged Bearing Housing Unit (4-Bolt Cast Iron with Insert)

The USFCE 207 SNR flanged bearing unit is a rugged bearing housing with a standard 35 mm insert encased in a four-bolt cast iron housing. This reliable housing unit is designed for ease of installation and maintenance, featuring:

• A grease nipple for easy relubrication

• An eccentric collar with set-screw to lock the insert onto the shaft securely

• The ability to remove and replace the bearing insert independently as needed

This bearing housing provides simplified assembly and long-lasting performance in applications like plant machinery, conveyors, and heavy-duty rotating systems. Its robust construction, including cast iron housing and standard bolt pattern, ensures both strength and compatibility.

Key Features

• Housing Type: 4-bolt cast iron flanged bearing housing

• Insert Shaft Size: 35 mm (USFCE 207 series)

• Insert Features: Grease nipple and eccentric collar with set-screw for shaft locking

• Sealing: Double-sided lip seal with cover plate, enlarged internal clearance C3 class

• Load Ratings: Dynamic ~25,700 N; Static ~15,200 N

Applications

• Industrial conveyor and feed systems

• Agricultural and construction machinery

• Rotating shafts in manufacturing machines

• Equipment requiring periodic bearing insert replacement

FAQ - Frequently Asked Questions

Q1: What is USFCE 207 SNR?
It is a flanged bearing unit (housing unit) with a 35 mm insert, cast iron body, and 4-bolt mounting.

Q2: How is the bearing secured to the shaft?
It uses an eccentric collar with a set screw, ensuring tight and safe shaft engagement.

Q3: Can the bearing insert be replaced?
Yes, the housing supports replaceable inserts for easier maintenance and lower costs.

Q4: Is there a lubrication point?
Yes, the unit includes a grease nipple for convenient relubrication.

Q5: What are the load capacities?
The unit handles dynamic loads up to 25.7 kN and static loads up to 15.2 kN.

Q6: What’s the delivery time?
All orders are processed and shipped within 24 hours from our Lublin warehouse.
