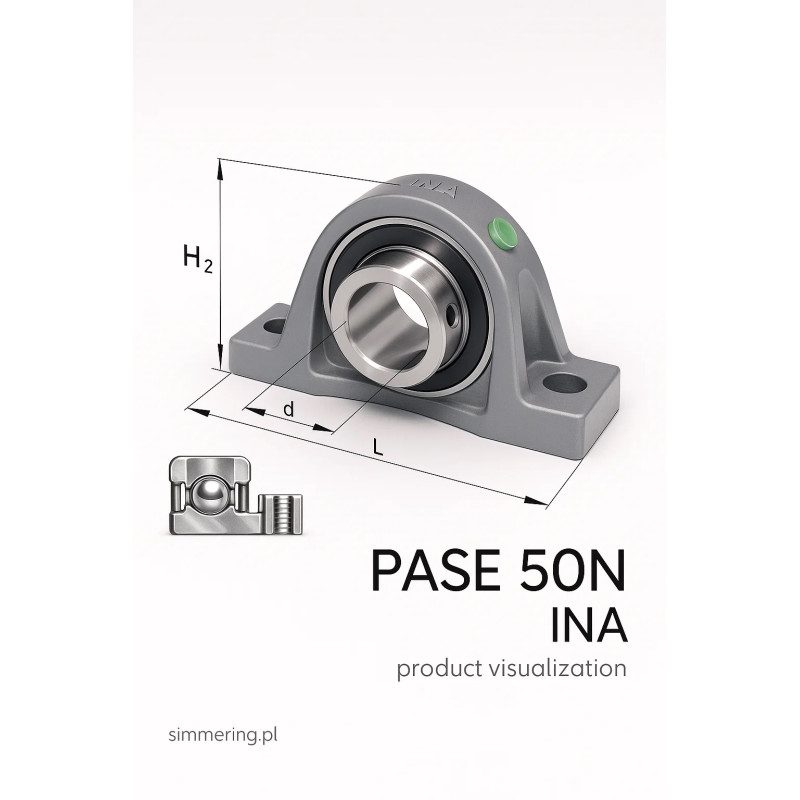

INA PASE 50 N Bearing Unit - Plummer Block Housing with 50 mm Shaft Insert

INA PASE 50 N Bearing Unit - Plummer Block Housing with 50 mm Shaft Insert

The INA PASE 50 N Bearing Unit is a robust plummer block housing designed for shafts with a 50 mm diameter. Manufactured by INA (Schaeffler Group), this unit combines strength, reliability, and easy assembly in one complete housing solution.

Key Features:

• Plummer block housing type PASE - made of durable grey cast iron, suitable for industrial and agricultural applications.

• Pre-assembled insert bearing - fits directly onto a 50 mm shaft.

• Secure locking system - with eccentric locking collar or set screws for quick shaft fixation.

• Two elongated bolt holes - allow flexible mounting and alignment.

• High load capacity - designed for demanding machinery and equipment.

• Sealed bearing insert - protects against dust, dirt, and lubricant loss.

Technical Data:

• Shaft diameter: 50 mm

• Housing type: PASE (plummer block)

• Material: grey cast iron

• Base length: 200 mm

• Center height: 57.2 mm

• Bolt hole distance: 158 mm

• Foot width: 54 mm

• Mounting slots: 23x18 mm

Keywords and Search Phrases (integrated in text)

INA PASE 50 N, INA bearing unit PASE 50N, INA plummer block housing, pillow block bearing INA 50 mm, PASE 50 N shaft bearing, mounted bearing unit 50 mm, industrial bearing housing

FAQ

Q: What is the INA PASE 50 N?
A: It is a complete bearing unit consisting of a cast iron plummer block housing and a pre-assembled insert bearing for shafts of 50 mm.

Q: Where is it used?
A: Commonly in industrial machinery, conveyors, power transmission systems, and agricultural equipment.

Q: How is it installed?
A: The insert bearing is mounted on the shaft with an eccentric locking collar or set screws, and the housing is bolted to the base using elongated slots.

Q: Why choose INA?
A: INA, part of Schaeffler Group, is globally recognized for precision engineering, durability, and long-term reliability in bearing solutions.

Q: What about delivery?
A: 📍 Warehouse & Store: Lublin, ul. Smoluchowskiego 1, building 4
🚚 24h shipping - fast and efficient order processing
