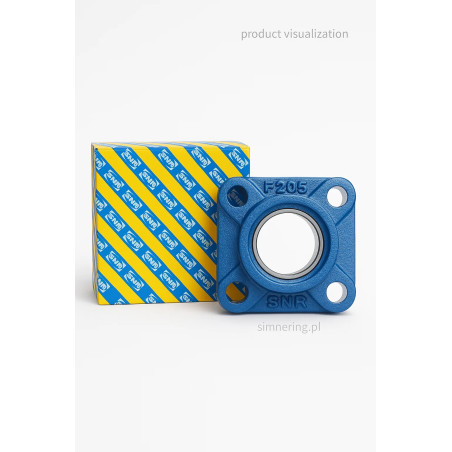

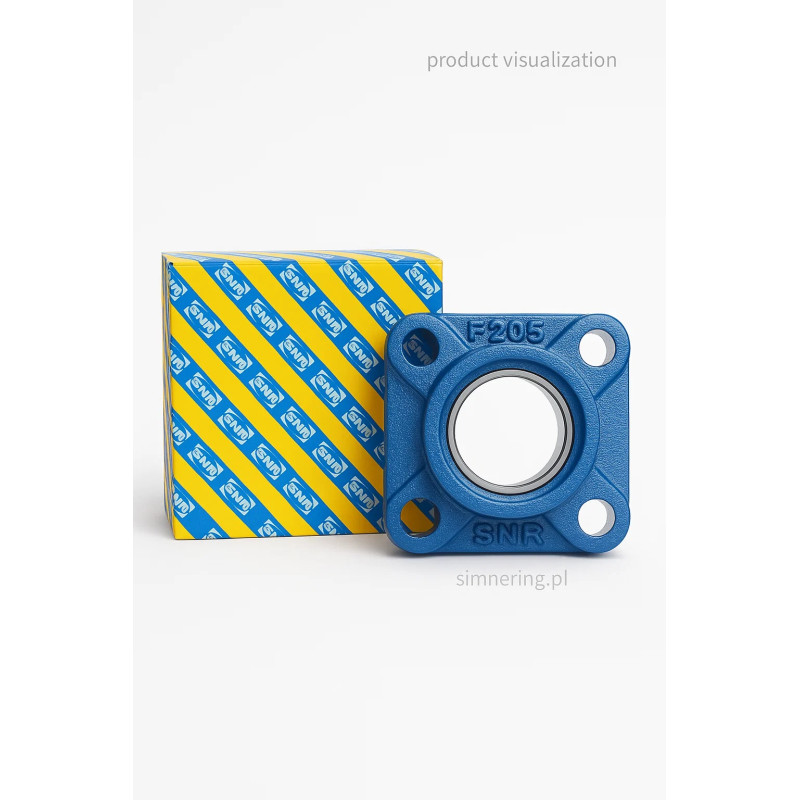

F 214 SNR Bearing Housing

Technical Description & Construction

The F 214 SNR is a flange-mounted bearing housing unit designed to accommodate insert ball bearings on shafts, offering a robust supporting structure within industrial machine systems. The housing is made of grey cast iron, configured with four-bolt flange mounting and a spherical outer ring insert bearing that allows for slight misalignment, enhancing reliability in demanding conditions. Typical dimensions for the unit with an inner bore of 70 mm include height A = 54 mm, flange height A1 = 22 mm and mounting-hole centre J = 152 mm. Dynamic load rating for the associated insert bearing reaches about 62 kN, while the static load rating is approximately 45 kN. Operating temperature range is from -20 °C to +100 °C. These specifications underscore the unit’s capability to deliver long-term performance in industrial setups requiring a bearing housing of high integrity and high durability.

Key product components: cast-iron housing with pre-drilled mounting holes, insert ball bearing with extended inner ring for secure shaft fitment, dual sealing system for contamination protection and grease lubrication port for maintenance flexibility. The structure forms a ready-to-install bearing housing unit, simplifying integration and reducing installation effort for B2B operations.

Industrial Applications & Value

This bearing housing unit is tailored to a wide array of industrial applications such as conveyor drives, shafts in heavy machinery, manufacturing lines and transport systems. Its design makes it an ideal choice for machine builders, OEMs and maintenance teams seeking reliable support for shafts and bearings in environments exposed to vibration, misalignment, heavy radial loads and medium-speed operation. By deploying the F 214 SNR housing, companies achieve a professional solution for their structural bearing support - integrating the concepts of “insert ball bearing” and “housing unit” into one cohesive product, thereby streamlining procurement, inventory and installation.

Furthermore, terms such as “bearing housing”, “industrial housing unit”, “cast-iron housing” and “insert bearing support” are frequently used by technical buyers and maintenance engineers, making this unit particularly well aligned with search terminology. The use of such phrases in this description supports SEO relevance while maintaining a natural, expert tone suited for a B2B audience.

Benefits for B2B Buyers

• High durability - robust cast-iron construction and high load ratings ensure sustained performance with minimal downtime.

• Ready to integrate - delivered as a housing unit compatible with insert bearings, enabling quick mounting or replacement in industrial systems.

• Reduced maintenance - the dual-seal system and grease lubrication port lower maintenance intensity and downtime.

• Versatile industrial use - suitable for broad use cases across production equipment, conveyors and mechanical systems demanding a reliable bearing unit.

• Stock availability and rapid supply - designed for B2B supply chains with prompt delivery readiness and minimal lead time.

Primary keywords utilised: bearing housing, housing unit, insert ball bearing, industrial applications, high durability. Synonyms and related terms: flange housing unit, cast iron bearing support, mounted housing unit, industrial bearing housing.

FAQ

Q: What shaft sizes can the F 214 SNR housing support?
A: The unit is designed for insert bearings with bore sizes such as 70 mm (inner diameter) in common industrial applications; consult specific inner-bore variants for exact matching.

Q: Is the F 214 SNR suitable for heavy-duty load and misalignment conditions?
A: Yes - with dynamic load rating ~62 kN and static ~45 kN, plus spherical outer ring design for limited misalignment, it meets heavy industrial operational demands.

Q: Does the housing require special mounting methods?
A: No special methods are needed beyond standard flange-bolt torque and proper shaft fit; it mounts via four-bolt flange, integrates insert bearing and is ready for installation, easing maintenance.

Q: How does this housing support the concept of “łożysko kulkowe” (ball bearing)?
A: The unit supports an insert ball bearing housed inside the cast-iron structure, forming a comprehensive housing solution - the bearing is secured, aligned and sealed within the housing.

Q: Can we expect fast delivery for this part as a B2B order?
A: Yes - the F 214 SNR housing unit is available for procurement with options for rapid dispatch, supporting 24-hour delivery readiness for industrial clients.
