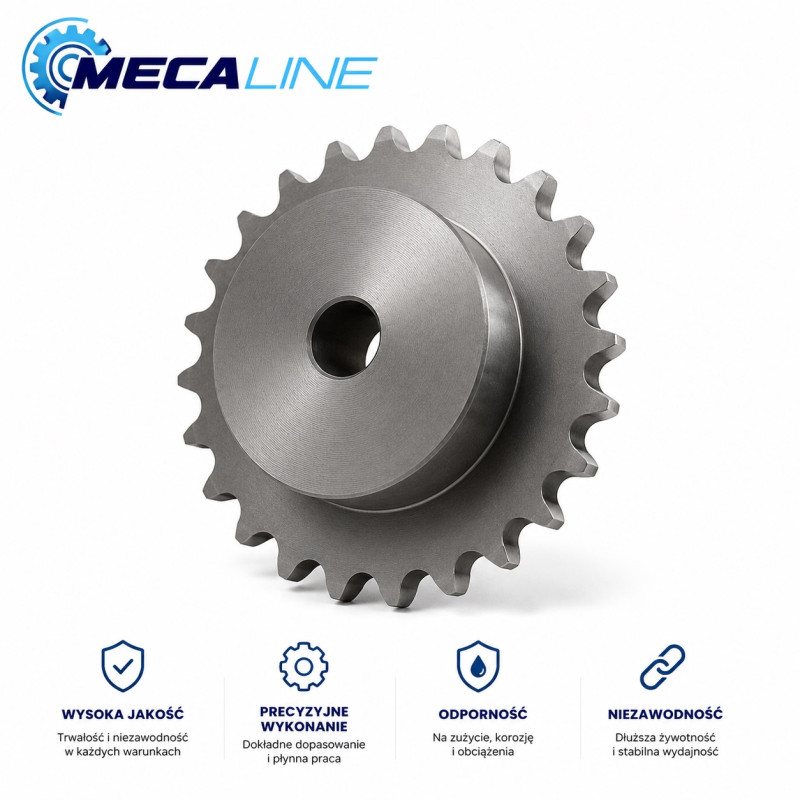

10B-1 Z21 MECALINE - Simplex Chain Sprocket

Industrial applications

10B-1 Z21 MECALINE is an industrial simplex chain sprocket designed for single row 10B-1 roller chains compliant with ISO 606 and DIN 8187 standards. The 21 tooth construction ensures smooth chain guidance and stable torque transmission in industrial drive systems.

10B-1 chain sprockets are widely used in conveyors, production machinery, agricultural equipment, transport drives and industrial automation systems operating under demanding load conditions. The optimized tooth geometry helps reduce vibration and improves the efficiency of the complete drive system.

10B-1 Z21 MECALINE is designed for drive systems using simplex roller chains with a 15,875 mm pitch. The standardized construction allows integration into many industrial power transmission systems and maintenance applications.

Construction and design

MECALINE chain sprockets are manufactured from durable industrial steel designed for operation under high mechanical loads. The tooth profile is optimized to improve chain engagement and reduce wear of drive system components during continuous operation.

The simplex construction is intended for cooperation with single row 10B-1 roller chains commonly used in industrial drive applications. Depending on the version, the sprocket may be available with a hub, pilot bore or mounting preparation for industrial installation systems.

10B-1 MECALINE sprockets are widely selected by maintenance departments because of their durability, easy installation and resistance to dynamic operating loads.

Technical parameters

Model: 10B-1 Z21 MECALINE

Product type: simplex chain sprocket

Chain type: 10B-1

Number of teeth: 21

Chain pitch: 15,875 mm

Standard: ISO 606 / DIN 8187

Construction: single row simplex

Material: industrial steel

Manufacturer: MECALINE

Applications: industrial drive and transport systems

The sprocket is designed for cooperation with single row roller chains used in industrial machinery and mechanical drive systems.

Operational advantages

10B-1 Z21 MECALINE provides high wear resistance and stable operation in demanding industrial environments. The optimized tooth profile improves chain guidance and reduces the risk of uneven wear within the drive system.

The steel construction allows operation under heavy dynamic loads and ensures long operational life. The sprocket performs very well in transport systems, production machinery and continuously operating industrial equipment.

For maintenance departments, this means reduced downtime, improved drive reliability and lower operating costs.

FAQ

Which chain fits the 10B-1 Z21 MECALINE sprocket?

The sprocket is designed for single row 10B-1 roller chains compliant with ISO 606.

What does Z21 mean?

Z21 indicates the sprocket has 21 teeth.

Is the sprocket suitable for industrial applications?

Yes, the construction is designed for industrial drive systems and continuous operation.

What is the chain pitch for 10B-1?

The chain pitch is 15,875 mm.

What are the main advantages of MECALINE sprockets?

High durability, stable operation, wear resistance and easy integration into industrial drive systems.
