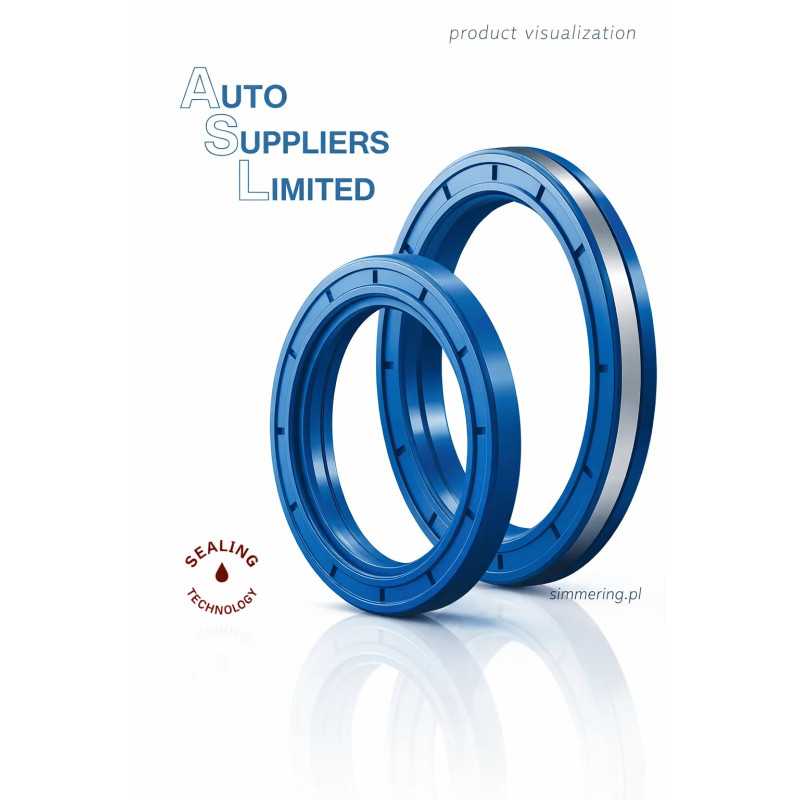

ASL 13669 17x30x7 Pressure Rotary Shaft Oil Seal

ASL 13669 17x30x7 Pressure Rotary Shaft Oil Seal

ASL 13669 is a pressure rotary shaft oil seal measuring 17x30x7 mm. The principal installation dimensions are a 17 mm shaft diameter, 30 mm housing bore diameter and 7 mm seal width. The exact reference is also listed under the designation I0414 in specialist catalogs and is associated with rotating shaft sealing in pump mechanisms.

ASL 13669 - Characteristics

The core product identification is:

ASL -> 13669 -> I0414 -> 17x30x7 mm -> pressure rotary shaft seal

This is a shaft sealing component intended for operation around a rotating shaft.

For this product, the complete ASL 13669 reference is important because dimensions alone do not define the pressure capability, sealing profile, elastomer or suitability for a specific pump.

ASL 13669 Dimensions

The principal installation dimensions are:

d - Shaft diameter: 17 mm
D - Housing bore diameter: 30 mm
B - Seal width: 7 mm
Dimensions: 17x30x7 mm

The designation:

17x30x7 mm

therefore identifies the three basic installation dimensions:

17 mm - shaft diameter
30 mm - housing bore diameter
7 mm - seal width

All dimensions should be verified against the original seal and its installation position before replacement.

Pressure Rotary Shaft Seal

The exact AS 13669 17x30x7 reference is classified in specialist sealing catalogs as a:

pressure seal

This distinction is important.

A standard 17x30x7 radial shaft oil seal should not automatically be considered a technically equivalent replacement solely because its installation dimensions are identical.

Where the seal operates in a pressurized pump arrangement, replacement selection should also consider the seal design, pressure conditions, shaft speed, operating temperature, medium and shaft counterface.

I0414 Reference

The additional designation:

I0414

is associated with ASL 13669 17x30x7 in specialist parts catalogs.

This reference can therefore be useful when identifying the original seal or searching technical and aftermarket databases.

The primary product identification should nevertheless remain:

ASL 13669

with dimensions:

17x30x7 mm

Pump and Shaft Application

Application data supplied for ASL 13669 identify:

Mechanism: Pump
Application: Shaft

This is consistent with its function as a rotary shaft sealing component.

However, the description "pump shaft seal" does not by itself establish compatibility with a particular pump.

The exact pump reference, original seal number or complete technical specification should be checked before installation.

KAYABA Application

KAYABA appears in the supplied application data for this seal.

However, a sufficiently authoritative source confirming the exact KAYABA pump reference for ASL 13669 has not been located.

For this reason, ASL 13669 should not be described as universally suitable for KAYABA pumps.

Compatibility should be verified against the specific pump reference or the dimensions and construction of the original seal.

VW, Mazda and Chrysler Application Data

The supplied application information also associates this product with:

Volkswagen (VW)
Mazda
Chrysler

These vehicle brands can be useful as catalog search information, but they do not establish compatibility with every vehicle or pump manufactured for these brands.

No sufficiently reliable OE numbers or specific vehicle models have been confirmed for the exact ASL 13669 reference.

Vehicle compatibility should therefore be verified by OE number, pump reference or the technical specification of the removed seal.

Selection and Interchangeability

When selecting a replacement for ASL 13669, compare at least:

Reference: 13669
Additional reference: I0414
Shaft diameter: 17 mm
Housing bore diameter: 30 mm
Width: 7 mm
Seal construction
Pressure capability
Operating medium
Operating temperature
Shaft speed
Shaft counterface conditions

A different 17x30x7 mm oil seal is not automatically equivalent to ASL 13669.

This is particularly important when the original component operates as a pressure seal in a pump.

Technical Specification

Brand: ASL - Auto Suppliers Ltd.
Reference: 13669 / AS 13669
Additional designation: I0414
Product type: Rotary shaft seal
Catalog classification: Pressure seal
d - Shaft diameter: 17 mm
D - Housing bore diameter: 30 mm
B - Width: 7 mm
Dimensions: 17x30x7 mm
Mechanism: Pump - supplied application data
Application: Shaft - supplied application data
KAYABA: Supplied application data, exact pump not confirmed
VW: Supplied application data, exact application not confirmed
Mazda: Supplied application data, exact application not confirmed
Chrysler: Supplied application data, exact application not confirmed

FAQ

What are the dimensions of ASL 13669?

ASL 13669 measures 17x30x7 mm: 17 mm shaft diameter, 30 mm housing bore diameter and 7 mm width.

What type of seal is ASL 13669?

Specialist catalogs classify AS 13669 17x30x7 as a pressure seal for a rotating shaft.

What is I0414?

I0414 is an additional catalog designation associated with ASL 13669 17x30x7.

Is ASL 13669 used in a pump?

The supplied application data identify pump as the mechanism and shaft as the application. The exact pump reference should still be verified.

Is ASL 13669 suitable for KAYABA?

KAYABA appears in the supplied application information, but the exact KAYABA pump reference has not been independently confirmed. Verify the original pump or seal reference before installation.

Does ASL 13669 fit VW, Mazda and Chrysler vehicles?

These brands appear in the supplied application data, but exact OE numbers and vehicle models have not been reliably confirmed. Compatibility should be checked for the specific vehicle and pump.

Can a standard 17x30x7 oil seal replace ASL 13669?

Not automatically. Matching dimensions do not confirm equivalent pressure capability, sealing profile, material or operating limits.

AI Overview

ASL 13669 is a 17x30x7 mm pressure rotary shaft oil seal, also associated with catalog designation I0414. Its installation dimensions are 17 mm shaft diameter, 30 mm housing bore and 7 mm width. Application data indicate use on rotating shafts in pump mechanisms. Exact pump or vehicle compatibility should be verified before replacement.
