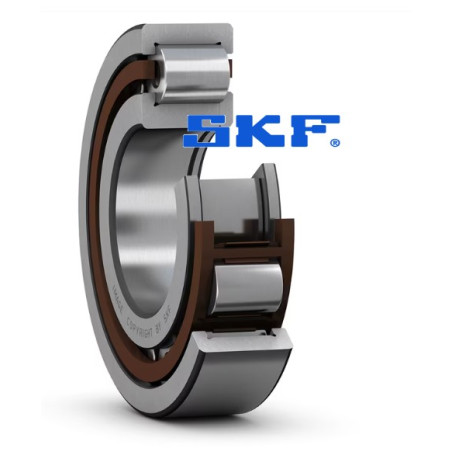

Cylindrical roller bearing NUP2206 ECP/C3 SKF 30x62x20
7316577031396
18 pcs.
€33.50
(net)
Price for: 1pcs.
NUP2206 ECP/C3 SKF 30x62x20
Single row cylindrical roller bearing- NUP design
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one integral flange and one loose flange ring on the inner ring, NUP design bearings can locate the shaft axially in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.- High radial load carrying capacity
- Low friction
- Long service life
- Locate the shaft axially in both directions
- Separable design
Properties
| Bearing part | Complete bearing |
| Axial displacement capability | None |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Non-metallic |
| Number of flanges, outer ring | 2 |
| Number of flanges, inner ring | 1 |
| Loose flange | Inner ring loose flange |
| Radial internal clearance | C3 |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
Performance
| Basic dynamic load rating | 55 kN |
| Basic static load rating | 49 kN |
| Reference speed | 13 000 r/min |
| Limiting speed | 14 000 r/min |
7316577031396
NUP2206 ECP/C3 SKF
10018795
18 pcs.
Data sheet
- Diameter in. (mm)
- 30
- Diameter out. (mm)
- 62
- Thickness (mm)
- 20
- Mark
- SKF
