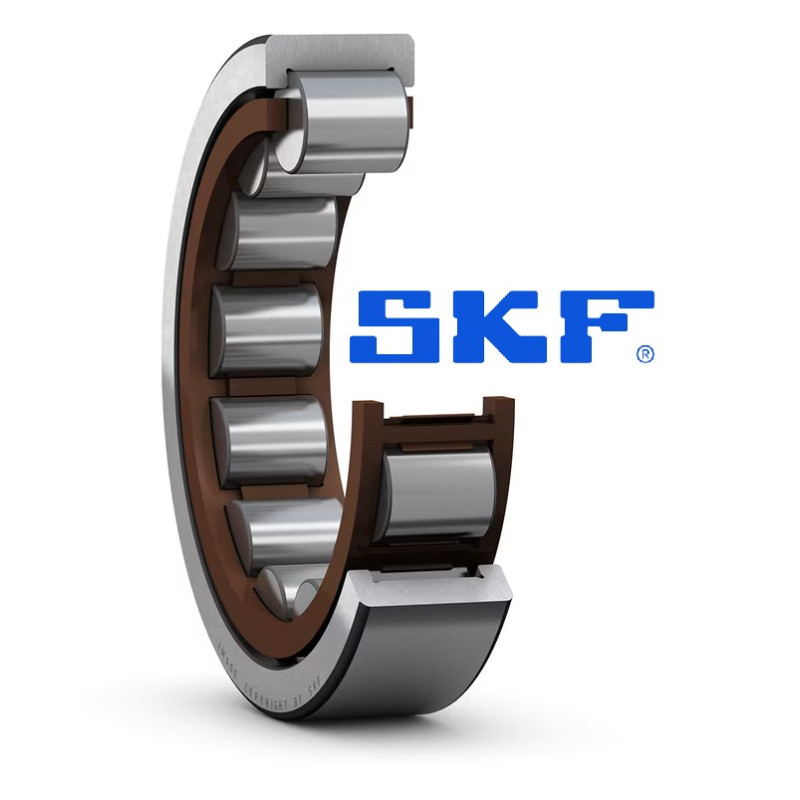

RNU 2304 ECP SKF 27.5x52x21 Single row cylindrical roller bearing- NU design- without inner ring
7316577652430
6 pcs.
€25.31
(net)
Price for: 1pcs.
RNU 2304 ECP SKF 27.5x52x21
Single row cylindrical roller bearing- NU design- without inner ring
Single row cylindrical roller bearings of the NU design without an inner ring consist of an outer ring with a roller and cage assembly. They are typically used in applications where hardened and ground raceways are provided on the shaft. Without the inner ring, a larger shaft diameter can be used to provide a stronger, stiffer shaft. The bearings can accommodate axial displacement in both directions, limited only by the width of the raceway on the shaft.- High radial load carrying capacity
- Enable a stronger, stiffer shaft
- Low friction
- Long service life
- Accommodate axial displacement in both directions
Performance
| Basic dynamic load rating | 47.5 kN |
| Basic static load rating | 38 kN |
| Reference speed | 15 000 r/min |
| Limiting speed | 18 000 r/min |
7316577652430
RNU2304 ECP SKF
10125478
6 pcs.
Data sheet
- Diameter in. (mm)
- 27.5
- Diameter out. (mm)
- 52
- Thickness (mm)
- 21
- Mark
- SKF
- PREF
- PICD
