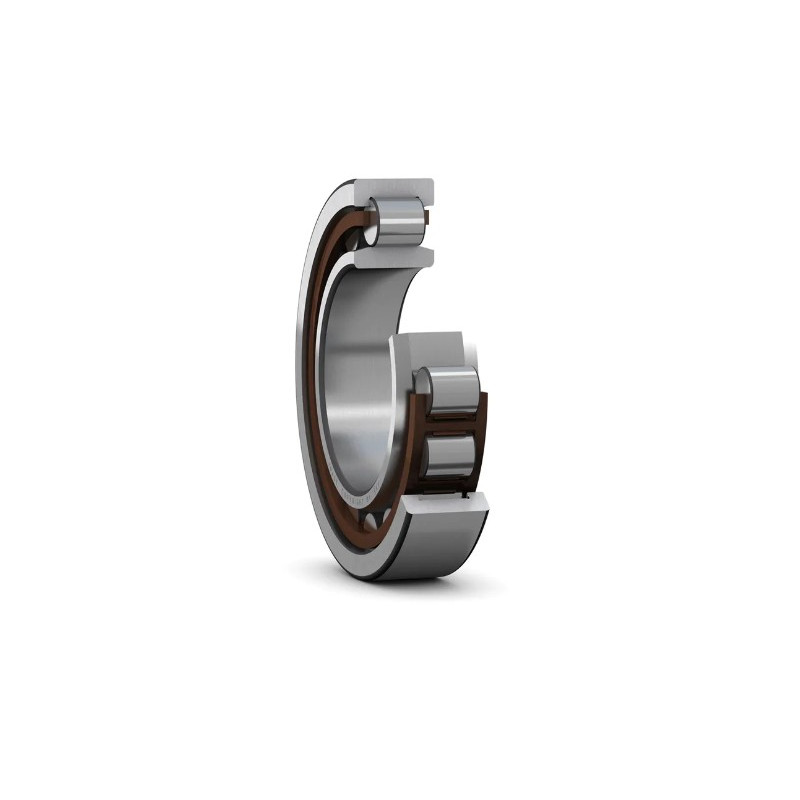

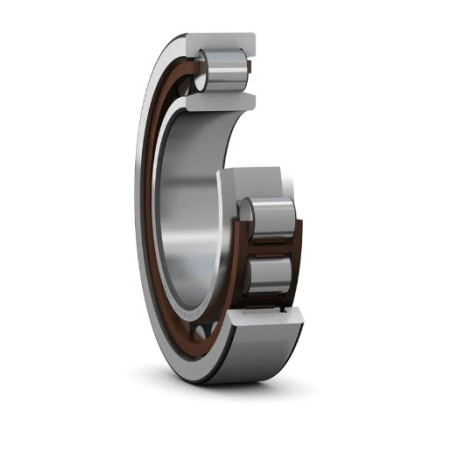

Cylindrical roller bearing NU308 ECP SKF 40x90x23
7316577027993
98 pcs.
€33.88
(net)
Price for: 1pcs.
NU308 ECP SKF 40x90x23
Single row cylindrical roller bearing- NU design
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
- High radial load carrying capacity
- Low friction
- Long service life
- Accommodate axial displacement in both directions
- Separable design
Properties
| Bearing part | Complete bearing |
| Axial displacement capability | In both directions |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Non-metallic |
| Number of flanges, outer ring | 2 |
| Number of flanges, inner ring | 0 |
| Loose flange | None |
| Radial internal clearance | CN |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
Performance
| Basic dynamic load rating | 93 kN |
| Basic static load rating | 78 kN |
| Reference speed | 8 000 r/min |
| Limiting speed | 9 500 r/min |
7316577027993
NU308 ECP SKF
10004668
98 pcs.
Data sheet
- Diameter in. (mm)
- 40
- Diameter out. (mm)
- 90
- Thickness (mm)
- 23
- Mark
- SKF
