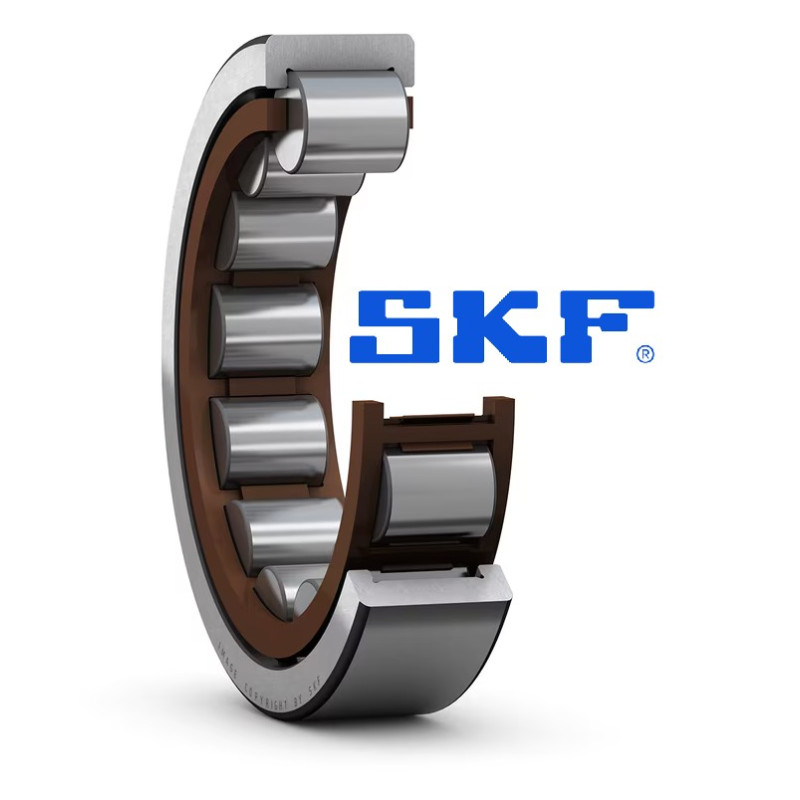

RNU 211 ECP SKF 66x100x21 Single row cylindrical roller bearing- NU design- without inner ring
7316571252117
6 pcs.
€37.48
(net)
Price for: 1pcs.
RNU 211 ECP SKF 66x100x21
Single row cylindrical roller bearing- NU design- without inner ring
Single row cylindrical roller bearings of the NU design without an inner ring consist of an outer ring with a roller and cage assembly. They are typically used in applications where hardened and ground raceways are provided on the shaft. Without the inner ring, a larger shaft diameter can be used to provide a stronger, stiffer shaft. The bearings can accommodate axial displacement in both directions, limited only by the width of the raceway on the shaft.- High radial load carrying capacity
- Enable a stronger, stiffer shaft
- Low friction
- Long service life
- Accommodate axial displacement in both directions
Performance
| Basic dynamic load rating | 96.5 kN |
| Basic static load rating | 95 kN |
| Reference speed | 7 500 r/min |
| Limiting speed | 8 000 r/min |
7316571252117
RNU211 ECP SKF
10125467
6 pcs.
Data sheet
- Diameter in. (mm)
- 66
- Diameter out. (mm)
- 100
- Thickness (mm)
- 21
- Mark
- SKF
- PREF
- PICD
