  • Cylindrical roller bearing RNU 204 ECP SKF 26.5x47x14

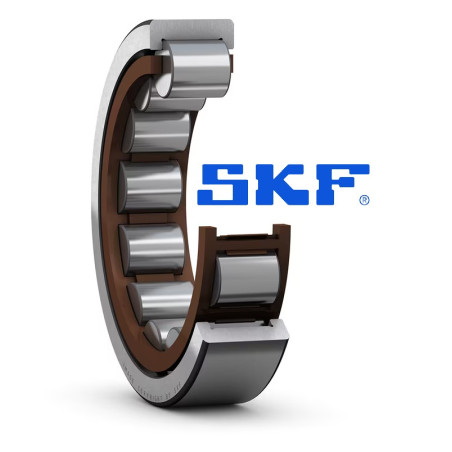

RNU 204 ECP SKF 26.5x47x14 Single row cylindrical roller bearing- NU design- without inner ring

€22.59 (net)
Price for: 1pcs.
Quantity

RNU 204 ECP SKF 26.5x47x14

Single row cylindrical roller bearing- NU design- without inner ring

Single row cylindrical roller bearings of the NU design without an inner ring consist of an outer ring with a roller and cage assembly. They are typically used in applications where hardened and ground raceways are provided on the shaft. Without the inner ring, a larger shaft diameter can be used to provide a stronger, stiffer shaft. The bearings can accommodate axial displacement in both directions, limited only by the width of the raceway on the shaft.
  • High radial load carrying capacity
  • Enable a stronger, stiffer shaft
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions

Performance

Basic dynamic load rating 28.5 kN
Basic static load rating 22 kN
Reference speed 17 000 r/min
Limiting speed 19 000 r/min
SKF
RNU 204 ECP SKF

Data sheet

Diameter in. (mm)
26.5
Diameter out. (mm)
47
Height (mm)
14
Mark
SKF
