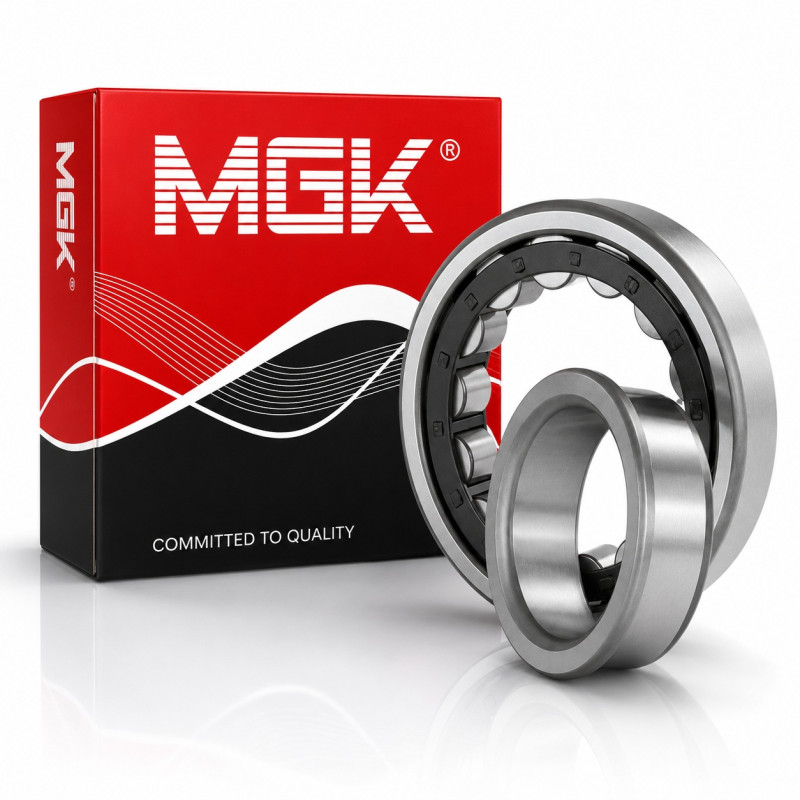

NJ 412 MGK Cylindrical Roller Bearing 60x150x35

NJ 412 MGK Cylindrical Roller Bearing 60x150x35

NJ 412 MGK is a durable single row cylindrical roller bearing designed for operation under very high radial loads in demanding industrial applications. The 60x150x35 mm construction is engineered for heavy duty drive systems, industrial gearboxes, large electric motors and machinery requiring high rigidity and reliable operation under intensive loading conditions.

NJ type cylindrical roller bearings belong to the most robust bearing constructions used in modern industry. Thanks to cylindrical rollers, they provide extremely high radial load capacity while maintaining low friction and suitability for high rotational speeds.

The NJ construction features:

• two guiding ribs on the outer ring
• one guiding rib on the inner ring
• axial displacement compensation capability in one direction
• separable construction for easier mounting and servicing

This design provides:

• very high radial load capacity
• stable operation under heavy loads
• high assembly rigidity
• suitability for high speed operation
• simplified maintenance and installation

The NJ 412 MGK bearing is widely used in:

• industrial gearboxes
• large electric motors
• industrial pumps
• production machinery
• rolling mills
• mining equipment
• construction machinery
• heavy duty drive systems

NJ cylindrical roller bearings are especially valued in applications requiring high radial load capacity and excellent resistance to dynamic overloads.

The phrase NJ 412 MGK 60x150x35 cylindrical roller bearing is frequently searched in industrial gearbox servicing and heavy machinery maintenance applications.

Construction and operating characteristics

The NJ 412 MGK bearing is designed for applications requiring extremely high load capacity and stable operation under demanding working conditions.

Main construction features:

• single row cylindrical roller design
• very high radial load capacity
• axial displacement compensation capability
• separable construction
• low friction operation
• high assembly rigidity
• suitable for high rotational speed
• long operational lifespan

The NJ design allows axial shaft guidance in one direction while maintaining extremely high radial load carrying capability.

Technical specification

Type: Single row cylindrical roller bearing

Designation: NJ 412

Manufacturer: MGK

Bearing type: Cylindrical roller bearing

Construction: Single row bearing

Sealing: Open bearing without seals

Inner diameter: 60 mm

Outer diameter: 150 mm

Width: 35 mm

Material: Bearing steel

Cage: Steel cage

Weight: Approx. 3.1 kg

Dynamic load rating: Approx. 209 kN

Static load rating: Approx. 184 kN

Limiting speed grease lubrication: Approx. 4200 rpm

Limiting speed oil lubrication: Approx. 5700 rpm

Load type: High radial loads and limited axial loads

Applications: Gearboxes, electric motors, industrial machinery, pumps, mining equipment, heavy duty drive systems

FAQ

What does the NJ designation mean in cylindrical roller bearings?

NJ type bearings provide axial shaft guidance in one direction while supporting very high radial loads.

Which loads can the NJ 412 MGK bearing support?

The bearing supports extremely high radial loads and limited axial loads.

Is the bearing suitable for high speed operation?

Yes. The cylindrical roller design provides low friction and stable operation at high rotational speeds.

What are the dimensions of the bearing?

The bearing dimensions are 60x150x35 mm.

Does the bearing include seals?

No. This is an open cylindrical roller bearing requiring proper lubrication and sealing within the application.
