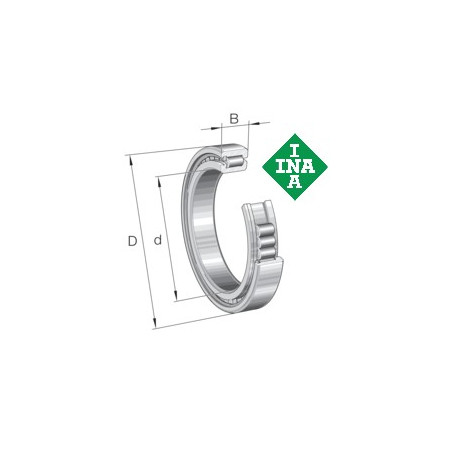

Cylindrical roller bearing SL 183028 A C3 INA 140x210x53
Processing time: 2-3 days
€573.39
(net)
Price for: 1pcs.
SL183028-A-C3 INA 140x210x53
Cylindrical roller bearing
Main Dimensions & Performance Data
| d |
140 mm
|
Bore diameter |
| D |
210 mm
|
Outside diameter |
| B |
53 mm
|
Width |
| Cr |
450.000 N
|
Basic dynamic load rating, radial |
| C0r |
660.000 N
|
Basic static load rating, radial |
| Cur |
90.000 N
|
Fatigue load limit, radial |
| nG |
1.820 1/min
|
Limiting speed |
| nϑr |
1.470 1/min
|
Reference speed |
| ≈m |
5,848 kg
|
Masa |
Mounting dimensions
| da min |
162,6 mm
|
Minimum diameter shaft shoulder |
| dc min |
162 mm
|
Minimum shaft shoulder |
| Da max |
189,5 mm
|
Maximum diameter of housing shoulder |
| De min |
198 mm
|
Minimum diameter of housing shoulder |
| ra max |
2 mm
|
Maximum recess radius |
Dimensions
| rmin |
2 mm
|
Minimum chamfer dimension |
| s |
5,5 mm
|
Axial displacement |
| d1 |
162,2 mm
|
Maximum rib diameter inner ring |
| D1 min |
189,5 mm
|
Minimum rib diameter outer ring |
| E |
198,4 mm
|
Raceway diameter outer ring |
Temperature range
| Tmin |
-30 °C
|
Operating temperature min. |
| Tmax |
120 °C
|
Operating temperature max. |
SL 183028 A C3 INA
Processing time: 2-3 days
Data sheet
- Diameter in. (mm)
- 140
- Diameter out. (mm)
- 210
- Height (mm)
- 53
- Mark
- INA
