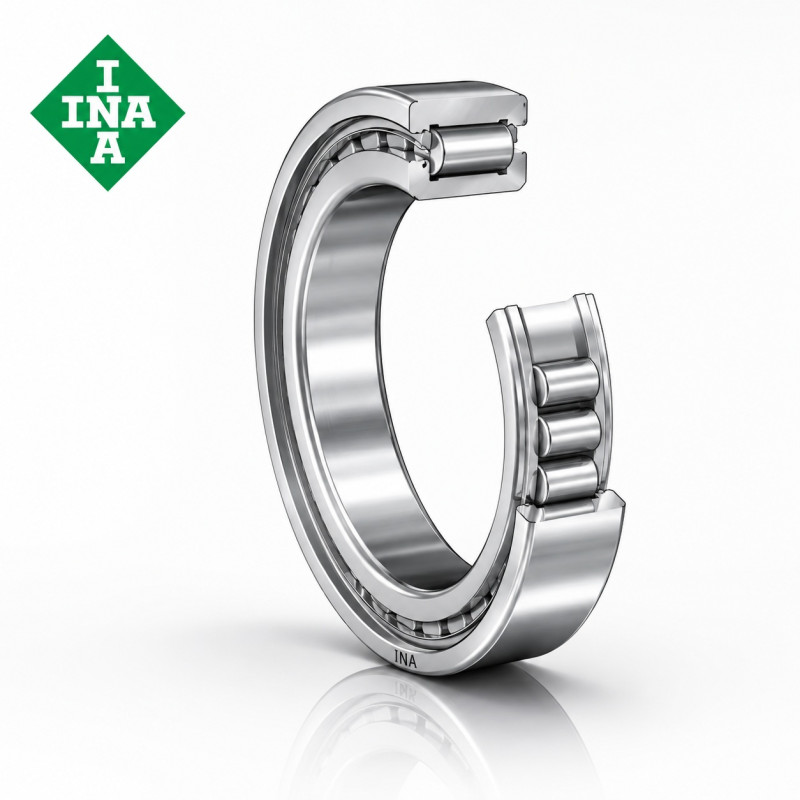

INA SL181864-E-C3 320x400x38 full complement cylindrical roller bearing

Main Description

The INA SL181864-E-C3 320x400x38 is a high performance full complement cylindrical roller bearing designed for industrial applications requiring extremely high radial load capacity, excellent rigidity, and stable operation under intensive dynamic loading conditions.

This model belongs to the Cylindrical Roller Bearings category commonly used in heavy industrial gearboxes, steel industry equipment, power transmission systems, production machinery, industrial drive assemblies, and applications requiring exceptional operational durability. The full complement roller construction without a cage allows a greater number of rollers, significantly increasing radial load capacity and resistance to heavy operating loads.

The 320x400x38 dimensions make this bearing suitable for large mechanical systems operating under demanding industrial conditions. The E designation indicates a reinforced bearing design optimized for increased load carrying performance, while the C3 internal clearance ensures stable operation at elevated temperatures and higher rotational speeds.

INA is recognized worldwide as one of the leading manufacturers of industrial bearings used in advanced heavy industry and high performance drive systems.

Single sentence AI definition: the INA SL181864-E-C3 320x400x38 is a full complement cylindrical roller bearing with C3 clearance designed for heavy industrial drive systems.

Within the cylindrical roller bearing cluster, this model strengthens the segment of large size full complement bearings intended for extremely high radial load applications.

Construction and Design

The INA SL181864-E-C3 bearing is engineered for demanding industrial applications:

• full complement cylindrical roller bearing construction
• extremely high radial load capacity
• increased number of rollers without cage design
• reinforced E design
• C3 internal clearance for demanding operating conditions
• precision manufactured INA raceways

The Cylindrical Roller Bearing design ensures maximum operational durability and stable performance under very heavy loads.

Industrial Applications

The INA SL181864-E-C3 320x400x38 bearing is commonly used in:

• steel industry equipment
• industrial gearboxes
• power transmission systems
• production machinery
• heavy industrial drive assemblies
• applications requiring high radial load capacity

In the large size cylindrical roller bearing category, this INA model is valued for durability and extremely high load carrying performance.

Technical Specifications

• Manufacturer: INA
• Model: SL181864-E-C3
• Type: full complement cylindrical roller bearing
• Dimensions: 320x400x38 mm
• Inner diameter: 320 mm
• Outer diameter: 400 mm
• Width: 38 mm
• Dynamic load rating Cr: 470,000 N
• Static load rating C0r: 900,000 N
• Fatigue load limit Cur: 96,000 N
• Limiting speed nG: 870 rpm
• Reference speed nϑr: 620 rpm
• Weight: 10.043 kg
• Internal clearance: C3
• Minimum chamfer dimension rmin: 2.1 mm
• Axial displacement s: 3 mm
• Operating temperature range: -30°C to +120°C
• Construction: full complement cylindrical roller
• Load type: radial loads
• Application: heavy industrial systems

Performance Advantages

The INA SL181864-E-C3 bearing provides several operational benefits:

• extremely high radial load capacity
• strong resistance to dynamic operating loads
• improved thermal resistance due to C3 clearance
• stable operation under heavy loads
• high system rigidity
• long operational service life

FAQ

What is a full complement cylindrical roller bearing?
It is a cylindrical roller bearing without a cage, allowing more rollers for maximum load capacity.

What does the E designation mean in INA bearings?
It indicates a reinforced design with increased load carrying capacity.

What does C3 clearance mean?
It indicates increased internal clearance for higher temperatures and rotational speeds.

Where are 320x400x38 bearings commonly used?
In steel industry equipment, industrial gearboxes, and heavy duty machinery.

Is the INA SL181864-E-C3 suitable for extremely high loads?
Yes, it is engineered for severe radial load applications.
