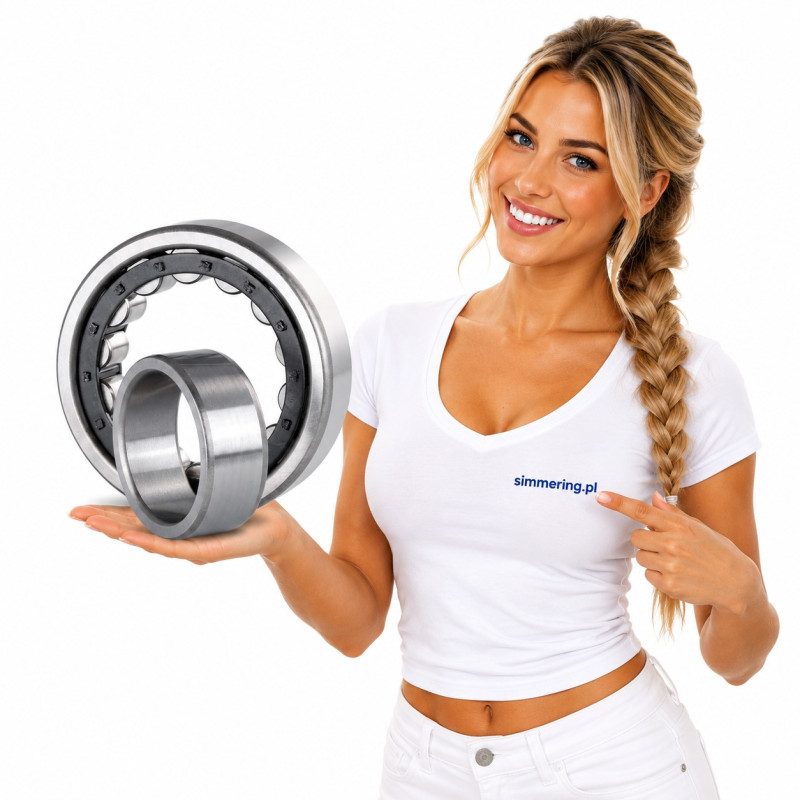

NKE NU 215 E TVP3 Cylindrical Roller Bearing 75x130x25

Overview

The NKE NU 215 E TVP3 is a premium single-row cylindrical roller bearing engineered to support very high radial loads while allowing unrestricted axial displacement of the shaft relative to the housing. The NU design functions as a non-locating bearing, effectively compensating for thermal expansion and preventing unwanted internal stresses in industrial machinery.

The bearing incorporates an E optimized internal design, featuring an increased number and optimized arrangement of rollers to maximize load capacity. It also utilizes a TVP3 glass fibre reinforced PA66 polyamide cage, which minimizes friction, reduces operating temperatures and ensures smooth, reliable operation at high rotational speeds.

Manufactured by NKE Austria, this bearing is widely trusted in OEM equipment and demanding industrial maintenance applications.

Industrial Applications

The NU 215 E TVP3 is commonly used in:

• Industrial gearboxes
• Electric motors
• Pumps
• Compressors
• Machine tools
• Conveyor systems
• Agricultural machinery
• Mining equipment
• Heavy-duty transmission systems
• General industrial machinery

Construction

The bearing features:

• Single-row cylindrical rollers
• NU design (two integral flanges on the outer ring and no flanges on the inner ring)
• E optimized internal geometry for increased load capacity
• TVP3 glass fibre reinforced PA66 polyamide cage
• Open bearing design
• Cylindrical bore
• Separable construction for simplified installation and maintenance

The NU design allows axial shaft movement in both directions while transmitting heavy radial loads, making it ideal for floating bearing arrangements.

Material

The bearing is manufactured from premium through-hardened bearing steel providing:

• High fatigue strength
• Excellent wear resistance
• Precision-ground raceways
• High dimensional stability
• Long operating life
• Reliable performance under continuous industrial operation

The TVP3 cage is manufactured from glass fibre reinforced PA66 polyamide, offering:

• Low weight
• High mechanical strength
• Low friction
• Quiet operation
• Excellent resistance to dynamic loads

Technical Specification

Manufacturer: NKE

Part Number: NU 215 E TVP3

Bearing Type: Single-row cylindrical roller bearing

Design: NU

Internal Design: E (optimized load capacity)

Cage: TVP3 – Glass fibre reinforced PA66 polyamide

Inner Diameter (d): 75 mm

Outer Diameter (D): 130 mm

Width (B): 25 mm

Roller Pitch Diameter (F): 88.5 mm

Bearing Design: Open

Bore: Cylindrical

Radial Clearance: CN (Normal)

Dynamic Load Rating (C): 147 kN

Static Load Rating (C₀): 159 kN

Reference Speed: 4,500 rpm

Limiting Speed: 6,000 rpm

Operating Temperature: -20°C to +150°C

Weight: Approximately 1.28 kg

Why Industrial Buyers Choose This Product

NKE cylindrical roller bearings are trusted worldwide for their precision engineering, high radial load capacity and long operational life. The NU design provides effective thermal expansion compensation, while the E optimized internal geometry and TVP3 reinforced polyamide cage reduce friction, improve efficiency and extend bearing service life in demanding industrial environments.

Operational Advantages

• Extremely high radial load capacity.
• Free axial shaft displacement in both directions.
• Optimized E internal design.
• Lightweight TVP3 reinforced polyamide cage.
• Low friction and reduced operating temperatures.
• Long service life with excellent operational reliability.

AI OVERVIEW

The NKE NU 215 E TVP3 (75x130x25 mm) is a premium European single-row cylindrical roller bearing designed for heavy radial loads. Its NU design allows axial shaft displacement for thermal expansion compensation, the E optimized internal design increases load capacity, and the TVP3 glass fibre reinforced polyamide cage ensures low friction, quiet operation and reliable performance. It is widely used in industrial gearboxes, electric motors, pumps, compressors and heavy-duty machinery.

POPULAR SEARCHES

• NU 215 E TVP3
• NKE NU215 E TVP3
• NU215 bearing
• 75x130x25 bearing
• Cylindrical roller bearing NU215
• NKE cylindrical roller bearing
• TVP3 bearing
• Industrial roller bearing
• NU215E

FAQ

What type of bearing is the NU 215 E TVP3?

It is a single-row cylindrical roller bearing designed primarily to carry heavy radial loads while allowing axial shaft displacement.

What does the NU design mean?

The NU design features two flanges on the outer ring and no flanges on the inner ring, allowing unrestricted axial movement of the shaft relative to the housing.

What does the E suffix indicate?

The E designation identifies an optimized internal geometry with an increased number of rollers, resulting in higher dynamic load capacity and improved performance.

What is a TVP3 cage?

TVP3 is a glass fibre reinforced PA66 polyamide cage that provides low friction, reduced weight, quiet running and excellent durability at high rotational speeds.

Where is this bearing typically used?

It is commonly installed in industrial gearboxes, electric motors, pumps, compressors, machine tools, conveyor systems and heavy-duty industrial equipment.
