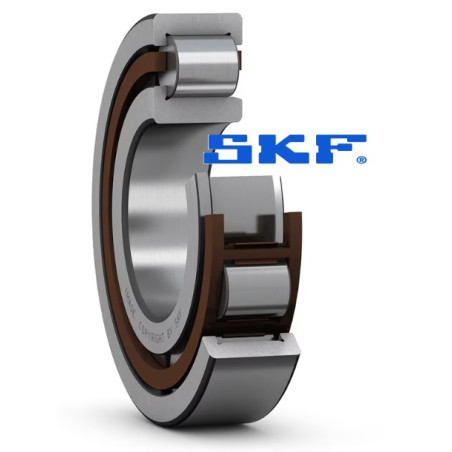

Cylindrical roller bearing NJ 308 ECP C4 SKF 40x90x23
€47.41
(net)
Price for: 1pcs.
NJ 308 ECP/C4 SKF 40x90x23
Single row cylindrical roller bearing- NJ design
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.- High radial load carrying capacity
- Low friction
- Long service life
- Locate the shaft axially in one direction
- Separable design
Performance
| Basic dynamic load rating | 93 kN |
| Basic static load rating | 78 kN |
| Reference speed | 8 000 r/min |
| Limiting speed | 9 500 r/min |
Properties
| Bearing part | Complete bearing |
| Axial displacement capability | In one direction |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Non-metallic |
| Number of flanges, outer ring | 2 |
| Number of flanges, inner ring | 1 |
| Loose flange | None |
| Radial internal clearance | C4 |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
