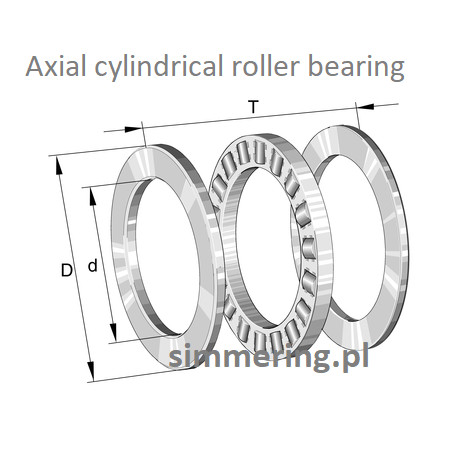

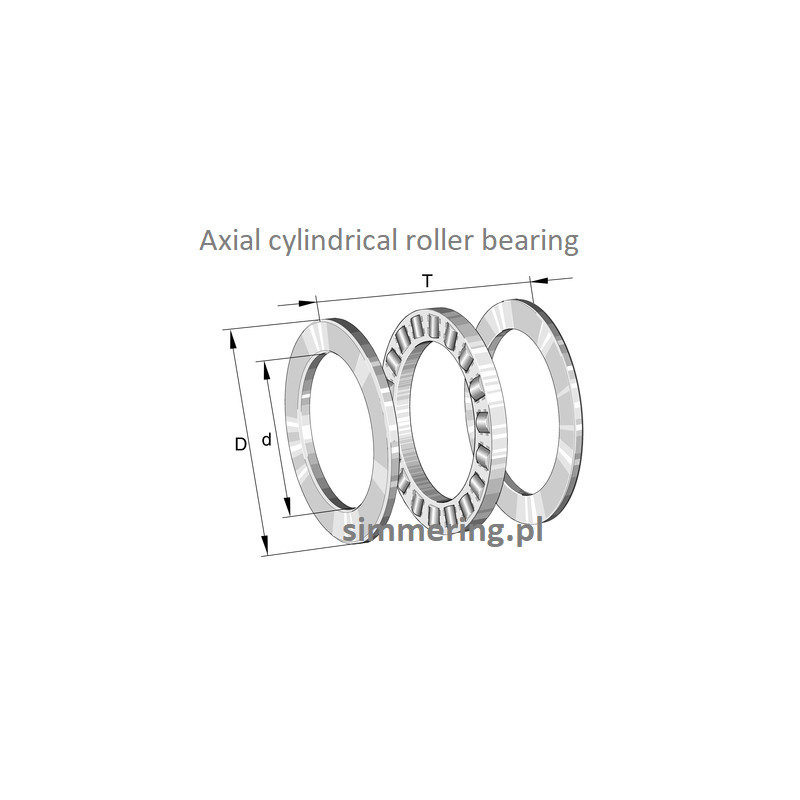

INA 81103-TV Cylindrical Roller Thrust Bearing - 17x30x9 mm, Single Direction, Polyamide Cage

INA 81103-TV Cylindrical Roller Thrust Bearing - 17x30x9 mm, Single Direction, Polyamide Cage

The INA 81103-TV is a high-performance single-direction cylindrical roller thrust bearing, engineered to handle substantial axial loads in one direction. Its compact design and polyamide cage make it ideal for applications where space is limited and high axial rigidity is required.

Key Features

• Dimensions: 17 mm (ID) x 30 mm (OD) x 9 mm (Width)

• Design: Single-direction axial cylindrical roller bearing

• Cage Material: Polyamide (TV)

• Dynamic Load Rating: 15,800 N

• Static Load Rating: 33,500 N

• Limiting Speed: 12,300 rpm

• Operating Temperature Range: -20°C to +120°C

• Weight: Approximately 0.0242 kg

Applications

This bearing is suitable for applications such as:

• Industrial machinery

• Gearboxes

• Pumps and compressors

• Automotive systems

• Machine toolssp-spareparts.com+2bearingbasement.com+2Elektronikos parduotuvė | Anodas.lt+2

Its design allows for separate mounting of bearing components, facilitating ease of installation and maintenance.123bearing.eu+4RS Online+4sg.rs-online.com+4

📍 Warehouse & Delivery

Location:
Smoluchowskiego 1, Building 4, Lublin, Poland

Shipping:
🚚 24h Delivery - Nationwide and International Shipping

❓ Frequently Asked Questions (FAQ)

Q1: Is the INA 81103-TV suitable for high-speed applications?

A1: Yes, it has a limiting speed of 12,300 rpm, making it suitable for high-speed operations.acorn-ind.co.uk

Q2: Can this bearing handle radial loads?

A2: No, it's designed specifically for axial loads in one direction and should not be used for radial load applications.

Q3: What is the operating temperature range?

A3: The bearing operates effectively between -20°C and +120°C.bearingbasement.com

Q4: Is the polyamide cage durable?

A4: Yes, the polyamide cage offers excellent strength and durability, suitable for various industrial applications.
