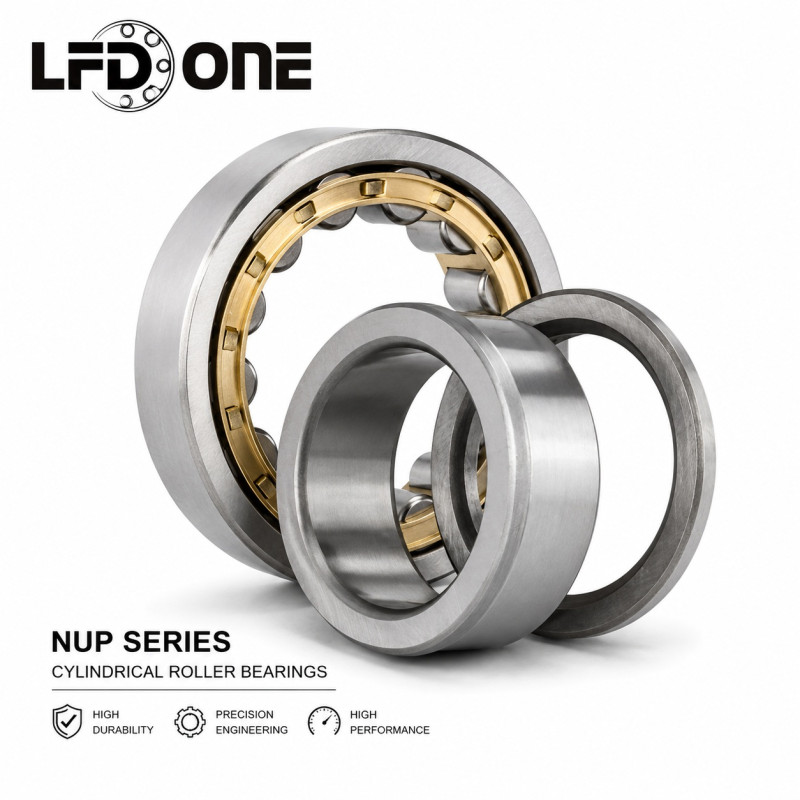

NUP 205 M LFD Single Row Cylindrical Roller Bearing 25x52x15

NUP 205 M LFD Single Row Cylindrical Roller Bearing 25x52x15

NUP 205 M LFD is a high quality single row cylindrical roller bearing designed for operation under heavy radial loads in demanding industrial applications. The 25x52x15 mm construction is engineered for drive systems, gearboxes, electric motors and industrial machinery requiring high rigidity, operational stability and resistance to dynamic loading conditions.

NUP type cylindrical roller bearings belong to the most durable bearing constructions used in modern mechanical systems. Thanks to cylindrical rollers, they provide significantly higher radial load capacity compared with standard deep groove ball bearings while maintaining excellent shaft guidance accuracy.

The NUP 205 M model features:

• two guiding ribs on the outer ring
• one fixed rib and one loose flange ring on the inner ring
• machined brass cage type M

This construction allows the bearing to support:

• very high radial loads
• moderate axial loads in both directions
• dynamic loads occurring in industrial applications

The machined brass cage provides excellent operational stability at high rotational speeds and increased resistance to overloads and elevated temperatures. Bearings equipped with brass cages are highly valued in heavy industrial applications requiring long service life and reliable continuous operation.

The NUP 205 M LFD bearing is widely used in:

• industrial gearboxes
• electric motors
• pumps
• compressors
• machine tools
• industrial fans
• conveyor systems
• production machinery

The phrase NUP 205 M LFD 25x52x15 single row cylindrical roller bearing is frequently searched in gearbox maintenance applications and industrial drive system servicing requiring high radial load capacity and stable operation under heavy loads.

Construction and operating characteristics

The NUP 205 M LFD bearing is designed for applications requiring high rigidity and excellent operational durability.

Main construction features:

• single row cylindrical roller design
• very high radial load capacity
• capability to support axial loads
• machined brass cage
• low friction operation
• high running stability
• suitable for high rotational speed
• long operational lifespan

The NUP design allows axial shaft location in both directions, making the bearing highly suitable for applications requiring precise shaft guidance.

Technical specification

Type: Single row cylindrical roller bearing

Designation: NUP 205 M

Manufacturer: LFD

Bearing type: Cylindrical roller bearing

Construction: Single row bearing

Sealing: Open bearing without seals

Inner diameter: 25 mm

Outer diameter: 52 mm

Width: 15 mm

Weight: 0.143 kg

Cage: Machined brass cage

Radial clearance: CN

Precision class: P0

Load type: High radial loads and moderate axial loads

Applications: Gearboxes, electric motors, pumps, compressors, industrial machinery, drive systems

FAQ

What does the NUP designation mean?

The NUP design allows axial shaft location in both directions thanks to the special rib configuration.

Which cage type is used in NUP 205 M LFD?

The bearing is equipped with a machined brass cage.

Which loads can cylindrical roller bearings support?

The bearing supports very high radial loads and moderate axial loads.

Is the bearing suitable for high speed operation?

Yes. The cylindrical roller design and brass cage provide stable performance at elevated rotational speeds.

Where are NUP cylindrical roller bearings commonly used?

They are commonly used in gearboxes, electric motors, pumps, compressors and industrial drive systems.
