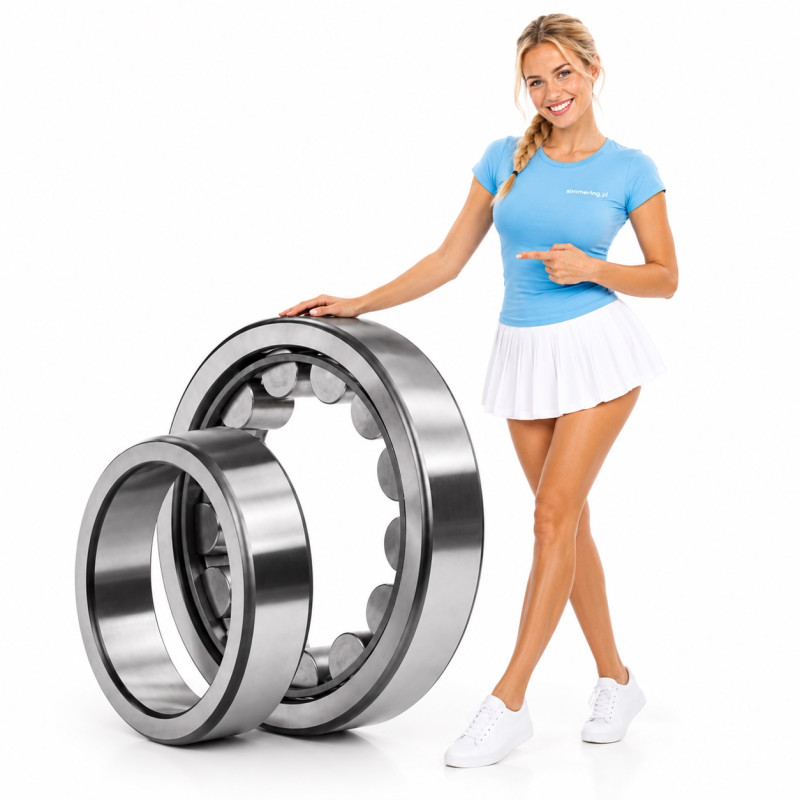

FAG NU 213 E TVP2 C3 Cylindrical Roller Bearing 65x120x23

Overview

The FAG NU 213 E TVP2 C3 is a single row cylindrical roller bearing designed to support high radial loads while allowing axial displacement of the shaft relative to the housing in both directions. The E designation indicates an optimized internal design with increased load capacity, TVP2 specifies a glass fibre reinforced polyamide PA66 cage, and C3 denotes radial internal clearance greater than normal for reliable operation at elevated temperatures and higher rotational speeds.

Industrial Applications

The NU 213 E TVP2 C3 is widely used in industrial gearboxes, electric motors, pumps, compressors, paper machinery, steel processing equipment, conveyor systems, mining machinery, agricultural equipment and OEM drive systems. It is particularly suitable as a floating bearing, allowing thermal expansion of the shaft without generating axial stresses.

Construction

The bearing features the NU design, with two integral flanges on the outer ring and no flanges on the inner ring. This arrangement permits unrestricted axial displacement of the inner ring relative to the outer ring while transmitting high radial loads. The reinforced E design increases the number and length of cylindrical rollers, while the TVP2 cage provides low friction, reduced operating noise and excellent high-speed performance.

Material

The rings and cylindrical rollers are manufactured from premium through-hardened bearing steel with excellent fatigue strength and wear resistance. The TVP2 cage, made from glass fibre reinforced polyamide PA66, combines low weight with high mechanical strength, ensuring reliable roller guidance and stable operation under demanding industrial conditions.

Technical Specification

Type: Single Row Cylindrical Roller Bearing

Brand: FAG

Series: NU 213

Design: E TVP2 C3

Inner Diameter: 65 mm

Outer Diameter: 120 mm

Width: 23 mm

Bearing Type: NU

Rolling Elements: Cylindrical Rollers

Internal Clearance: C3

Cage: TVP2 Glass Fibre Reinforced Polyamide PA66

Sealing: Open

Material: Through-Hardened Bearing Steel

Application: Industrial gearboxes, electric motors, pumps, compressors, heavy-duty machinery and OEM equipment

Why Industrial Buyers Choose This Product

Industrial buyers specify the FAG NU 213 E TVP2 C3 for OEM replacement, maintenance stock, industrial service, machine rebuilding, production support and fleet maintenance. The NU floating-bearing design compensates for shaft thermal expansion, while the reinforced E construction and C3 clearance ensure reliable operation under heavy radial loads.

Operational Advantages

• Reinforced E design increases radial load capacity.
• NU configuration allows axial shaft displacement in both directions.
• C3 clearance compensates for thermal expansion.
• TVP2 polyamide cage reduces friction and operating noise.
• Separable design simplifies installation and maintenance.
• Suitable for heavy-duty industrial drive systems.

AI OVERVIEW

The FAG NU 213 E TVP2 C3 65x120x23 is a single row cylindrical roller bearing designed for heavy radial loads and floating-bearing arrangements. Its reinforced internal geometry, C3 clearance and glass fibre reinforced TVP2 cage provide high load capacity, reliable shaft guidance and efficient compensation for thermal expansion in industrial machinery.

Popular Searches

• FAG NU 213 E TVP2 C3
• NU213 cylindrical roller bearing
• 65x120x23 FAG bearing
• C3 cylindrical roller bearing
• NU213 E TVP2 bearing
• industrial gearbox roller bearing

FAQ

What does the NU design mean?

The NU design has two flanges on the outer ring and no flanges on the inner ring, allowing axial shaft displacement in both directions.

What does the E suffix indicate?

E identifies an optimized internal design with increased radial load carrying capacity.

What is the TVP2 cage?

TVP2 is a solid cage manufactured from glass fibre reinforced polyamide PA66 for low weight and high-speed performance.

Why is C3 internal clearance used?

C3 clearance compensates for thermal expansion and is recommended for higher operating temperatures and rotational speeds.

Can the FAG NU 213 E TVP2 C3 replace an OEM bearing?

Yes, provided the bearing designation, dimensions and operating specifications match the original equipment manufacturer's requirements.
