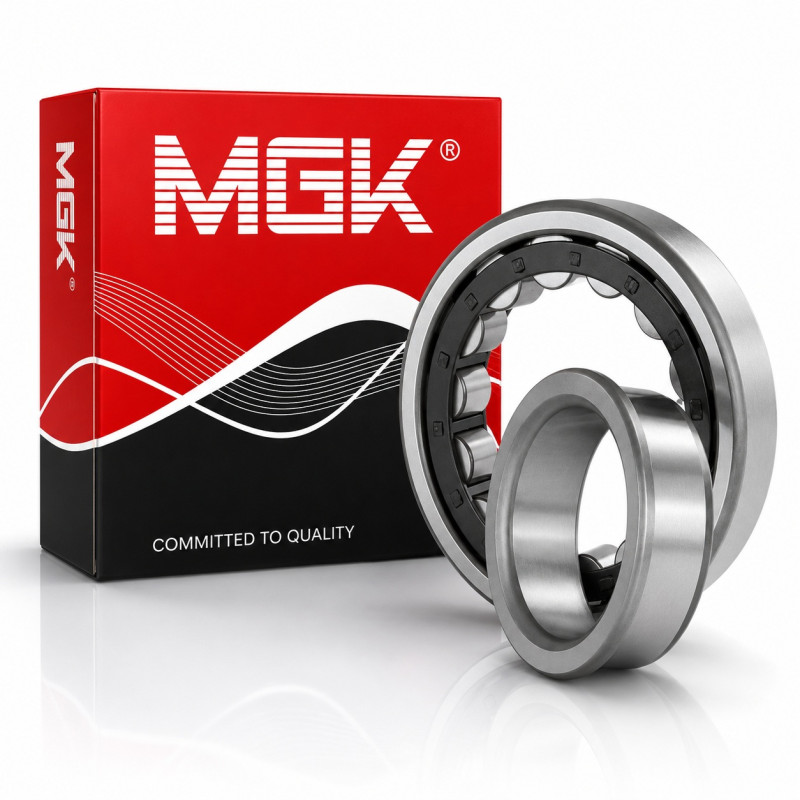

NJ 212 E MGK Cylindrical Roller Bearing 60x110x22

NJ 212 E MGK Cylindrical Roller Bearing 60x110x22

NJ 212 E MGK is a durable single row cylindrical roller bearing designed for operation under very high radial loads in demanding industrial applications. The 60x110x22 mm construction is engineered for gearboxes, electric motors, pumps and heavy duty drive systems requiring high rigidity, stable operation and resistance to dynamic overloads.

NJ type cylindrical roller bearings belong to the most robust bearing constructions used in modern industry. Thanks to cylindrical rollers, they provide extremely high radial load capacity while maintaining low friction and suitability for high rotational speeds.

The NJ construction features:

• two guiding ribs on the outer ring
• one guiding rib on the inner ring
• axial shaft guidance capability in one direction
• separable construction for easier mounting and servicing

The “E” designation indicates an enhanced internal design with optimized roller geometry and increased dynamic load capacity.

This construction provides:

• very high radial load capacity
• stable operation under heavy loads
• high assembly rigidity
• suitability for high speed operation
• simplified installation and maintenance

The NJ 212 E MGK bearing is widely used in:

• industrial gearboxes
• electric motors
• industrial pumps
• compressors
• machine tools
• conveyor equipment
• production machinery
• heavy duty drive systems

NJ cylindrical roller bearings are highly valued in applications requiring extremely high radial load capacity and stable performance under heavy loads and elevated rotational speeds.

The phrase NJ 212 E MGK 60x110x22 cylindrical roller bearing is frequently searched in industrial gearbox servicing and heavy machinery maintenance applications.

Construction and operating characteristics

The NJ 212 E MGK bearing is designed for applications requiring extremely high load capacity and reliable operation under demanding working conditions.

Main construction features:

• single row cylindrical roller design
• very high radial load capacity
• axial shaft guidance capability
• reinforced E design
• separable construction
• low friction operation
• suitable for high rotational speed
• long operational lifespan

The NJ design allows axial shaft guidance in one direction while maintaining extremely high radial load carrying capability.

Technical specification

Type: Single row cylindrical roller bearing

Designation: NJ 212 E

Manufacturer: MGK

Bearing type: Cylindrical roller bearing

Construction: Single row reinforced bearing

Sealing: Open bearing without seals

Inner diameter: 60 mm

Outer diameter: 110 mm

Width: 22 mm

Material: Bearing steel

Cage: Steel cage

Weight: Approx. 0.84 kg

Dynamic load rating: Approx. 68.5 kN

Static load rating: Approx. 75 kN

Limiting speed grease lubrication: Approx. 6000 rpm

Limiting speed oil lubrication: Approx. 7100 rpm

Load type: High radial loads and limited axial loads

Applications: Gearboxes, electric motors, pumps, industrial machinery, heavy duty drive systems

FAQ

What does the NJ designation mean in cylindrical roller bearings?

NJ type bearings provide axial shaft guidance in one direction while supporting very high radial loads.

What does the E designation mean?

The E designation indicates an enhanced internal design with increased dynamic load capacity.

Which loads can the NJ 212 E MGK bearing support?

The bearing supports very high radial loads and limited axial loads.

What are the dimensions of the bearing?

The bearing dimensions are 60x110x22 mm.

Does the bearing include seals?

No. This is an open cylindrical roller bearing requiring proper lubrication and sealing within the application.
