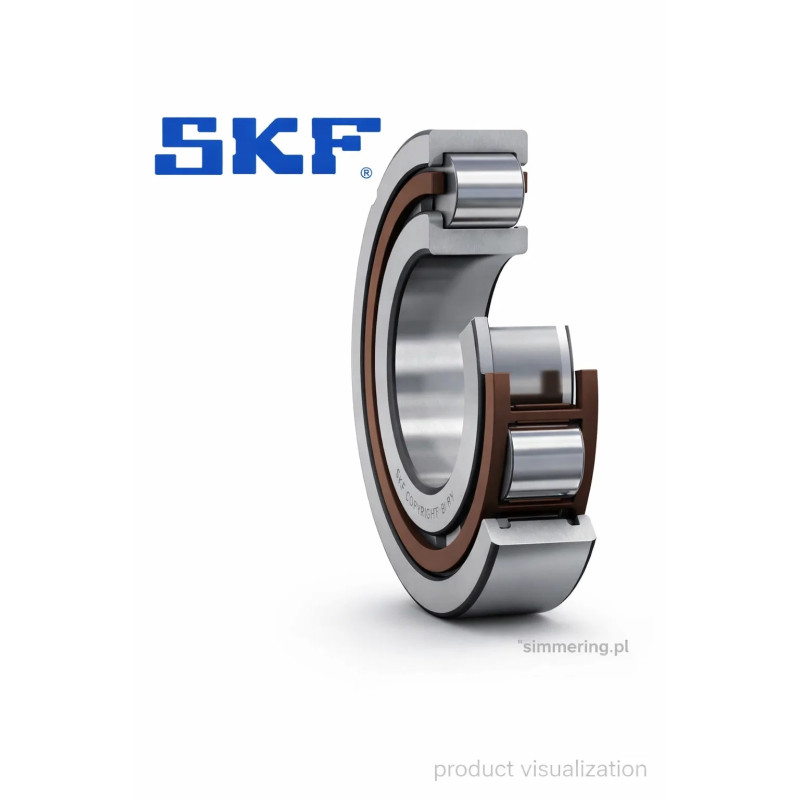

Cylindrical roller bearing NJ 2206 ECP SKF 30x62x20
1 pcs.
€33.10
(net)
Price for: 1pcs.
The NJ 2206 ECP SKF is a single row cylindrical roller bearing with NJ design, developed to handle high radial loads at high operating speeds. The bearing features two integral flanges on the outer ring and one flange on the inner ring, allowing it to locate the shaft axially in one direction while accommodating axial displacement in that direction.
Its separable design simplifies installation, disassembly and maintenance, making it a practical choice for industrial service applications. The non-metallic cage ensures low friction and stable performance, contributing to a long service life under continuous operation.
NJ 2206 ECP SKF 30x62x20
Single row cylindrical roller bearing- NJ design
Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.- High radial load carrying capacity
- Low friction
- Long service life
- Locate the shaft axially in one direction
- Separable design
Properties
| Bearing part | Complete bearing |
| Axial displacement capability | In one direction |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Non-metallic |
| Number of flanges, outer ring | 2 |
| Number of flanges, inner ring | 1 |
| Loose flange | None |
| Radial internal clearance | CN |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication feature | Without |
Performance
| Basic dynamic load rating | 55 kN |
| Basic static load rating | 49 kN |
| Reference speed | 13 000 r/min |
| Limiting speed | 14 000 r/min |
NJ 2206 ECP SKF
1 pcs.
Data sheet
- Diameter in. (mm)
- 30
- Diameter out. (mm)
- 62
- Height (mm)
- 20
- Mark
- SKF
The NJ 2206 ECP SKF is a single row cylindrical roller bearing with NJ design, developed to handle high radial loads at high operating speeds. The bearing features two integral flanges on the outer ring and one flange on the inner ring, allowing it to locate the shaft axially in one direction while accommodating axial displacement in that direction.
Its separable design simplifies installation, disassembly and maintenance, making it a practical choice for industrial service applications. The non-metallic cage ensures low friction and stable performance, contributing to a long service life under continuous operation.
