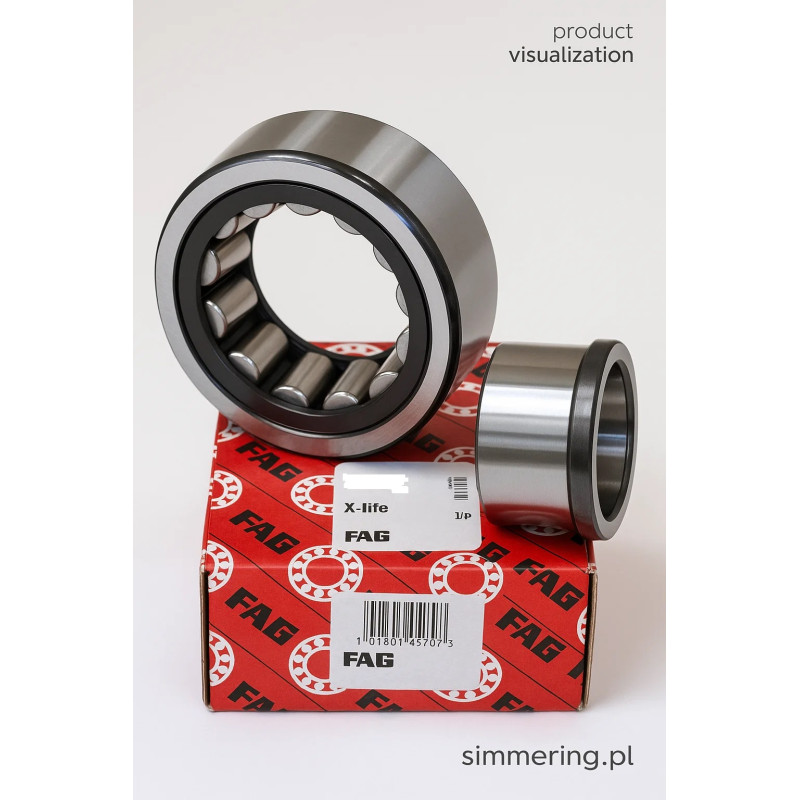

FAG NJ 304 ETVP 20x52x15 cylindrical roller bearing

Industrial applications

The FAG NJ 304 ETVP 20x52x15 cylindrical roller bearing is designed for systems where high radial loads must be supported together with controlled axial positioning in one direction.

This bearing is commonly used in:

• industrial gearboxes
• electric motors
• production machinery
• drive systems
• pumps and compressors

Within the cylindrical roller bearings FAG category on simmering.pl, the NJ 304 ETVP model functions as a semi-locating bearing, working together with NU or NUP types in advanced mechanical systems.

Construction and design

The FAG NJ 304 ETVP cylindrical roller bearing features a NJ design, allowing axial guidance of the shaft in one direction.

Key design features:

• cylindrical rollers with line contact for high load capacity
• outer ring with two fixed flanges
• inner ring with one flange enabling axial positioning
• ETVP cage reducing friction and weight

The ETVP cage improves efficiency and allows higher rotational speeds compared to heavier cage designs.

Technical parameters

Technical specification of the FAG NJ 304 ETVP 20x52x15 bearing:

• inner diameter: 20 mm
• outer diameter: 52 mm
• width: 15 mm
• type: cylindrical roller bearing
• design: NJ
• cage: ETVP
• brand: FAG

Technical snippet:
The FAG NJ 304 ETVP 20x52x15 cylindrical roller bearing supports high radial loads and provides axial shaft guidance in one direction due to its NJ design.

Performance advantages

The FAG NJ 304 ETVP bearing offers:

• high radial load capacity
• axial guidance in one direction
• reduced friction due to ETVP cage
• stable operation under dynamic loads
• long service life in industrial environments

Compared to deep groove ball bearings, cylindrical roller bearings provide greater rigidity and improved performance under heavy loads.

Role in FAG cylindrical roller bearings category

FAG cylindrical roller bearings available on simmering.pl include multiple designs such as NU, NJ and NUP. The NJ 304 ETVP model belongs to the group of semi-locating bearings, which are essential for controlling axial movement in one direction.

With dimensions 20x52x15, this bearing is suitable for medium-size industrial applications requiring both strength and precise shaft positioning.

FAQ

What is the function of a NJ cylindrical roller bearing
It supports radial loads and provides axial positioning in one direction.

Can the NJ 304 bearing handle axial loads
Yes, but only in one direction.

Where is this bearing typically used
In gearboxes, motors, machinery and industrial drives.

What is the advantage of the ETVP cage
It reduces friction and improves efficiency.

Is this bearing interchangeable with other brands
Yes, if dimensions and specifications match.
