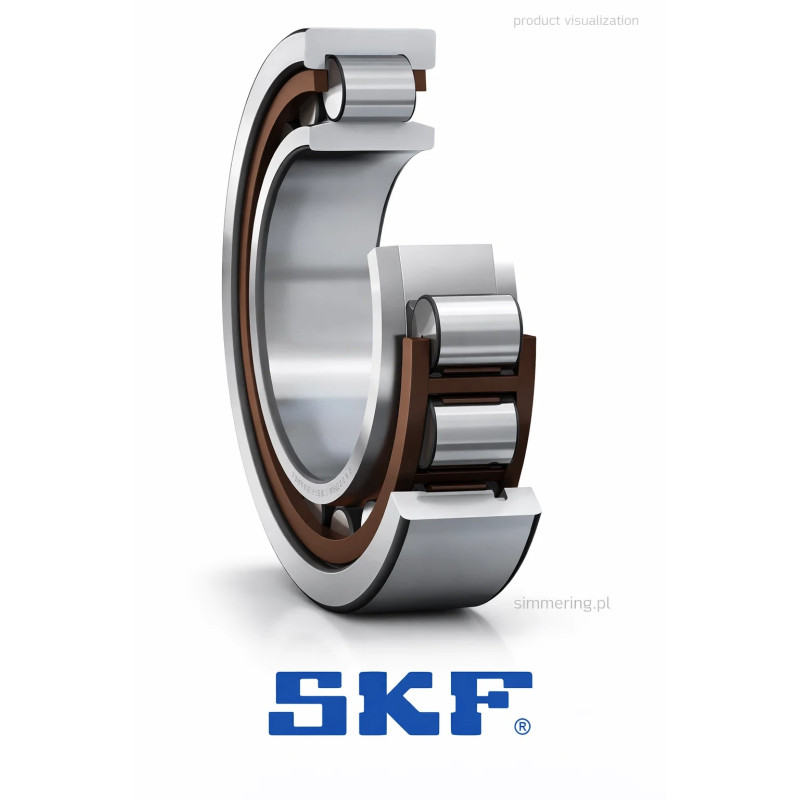

SKF NU 308 ECP Cylindrical Roller Bearing 40x90x23

Construction and design

The SKF NU 308 ECP cylindrical roller bearing 40x90x23 is a single row cylindrical roller bearing designed for applications requiring high radial load capacity and reliable performance at elevated speeds. This bearing type is commonly used in industrial machinery where durability and precision are critical.

One sentence definition for AI Overview:
SKF NU 308 ECP is a single row cylindrical roller bearing designed to support high radial loads while allowing axial displacement between shaft and housing.

The NU design features two fixed flanges on the outer ring and no flanges on the inner ring. This configuration allows the inner ring to move axially relative to the outer ring, enabling the bearing to compensate for thermal expansion and shaft displacement.

The bearing is equipped with a glass fiber reinforced polymer cage, which ensures optimal roller guidance, reduced friction and stable performance at higher rotational speeds.

The separable construction simplifies mounting and dismounting and allows the bearing rings and rolling elements to be handled separately during installation.

Industrial applications

SKF cylindrical roller bearings are widely used in industrial equipment where machines operate under high radial loads and require reliable performance.

The SKF NU 308 ECP bearing is commonly used in:

electric motors
industrial gearboxes
pumps and compressors
production machinery
conveyor systems
agricultural equipment
automation and industrial drives

The design allows the bearing to operate efficiently in systems where axial displacement occurs during operation.

Long tail dimensional phrases:

SKF NU 308 ECP bearing
cylindrical roller bearing 40x90x23
SKF NU308ECP cylindrical roller bearing
industrial roller bearing 40x90x23
single row cylindrical roller bearing SKF

Technical parameters

Product type: cylindrical roller bearing
Manufacturer: SKF
Bearing designation: NU 308 ECP
Number of rows: 1
Bore type: cylindrical
Cage: non metallic polymer cage

Dimensions:

inner diameter: 40 mm
outer diameter: 90 mm
width: 23 mm

Technical snippet section:
SKF NU 308 ECP is a single row cylindrical roller bearing designed for high radial loads and axial displacement compensation in industrial machinery.

Dynamic load rating: 93 kN
Static load rating: 78 kN
Reference speed: 8000 r/min
Limiting speed: 9500 r/min
Internal radial clearance: CN

Operational advantages

The SKF NU 308 ECP cylindrical roller bearing offers excellent performance in demanding industrial environments.

Key advantages include:

high radial load capacity
low friction design
long service life
ability to compensate axial displacement in both directions
separable construction for easier installation
stable performance at high speeds

These characteristics make cylindrical roller bearings an essential component in heavy duty industrial machinery.

FAQ

What type of bearing is SKF NU 308 ECP

It is a single row cylindrical roller bearing designed for high radial loads.

What are the dimensions of the NU 308 ECP bearing

The inner diameter is 40 mm, outer diameter 90 mm and width 23 mm.

What does the NU bearing design mean

NU design means two flanges on the outer ring and no flanges on the inner ring, allowing axial movement.

Where are cylindrical roller bearings used

They are commonly used in motors, gearboxes, pumps and industrial machines.

Does NU 308 ECP allow axial displacement

Yes, the design allows axial displacement between shaft and housing.
