E2.6203-2Z/C3 SKF 17x40x12 Single row deep groove ball bearing
7316574222476
172 pcs.
€2.49
(net)
Price for: 1pcs.
E2.6203-2Z/C3 SKF 17x40x12
E2.6203 ZZ C3 SKF

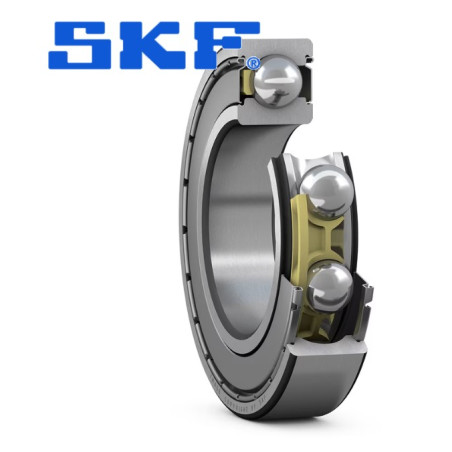

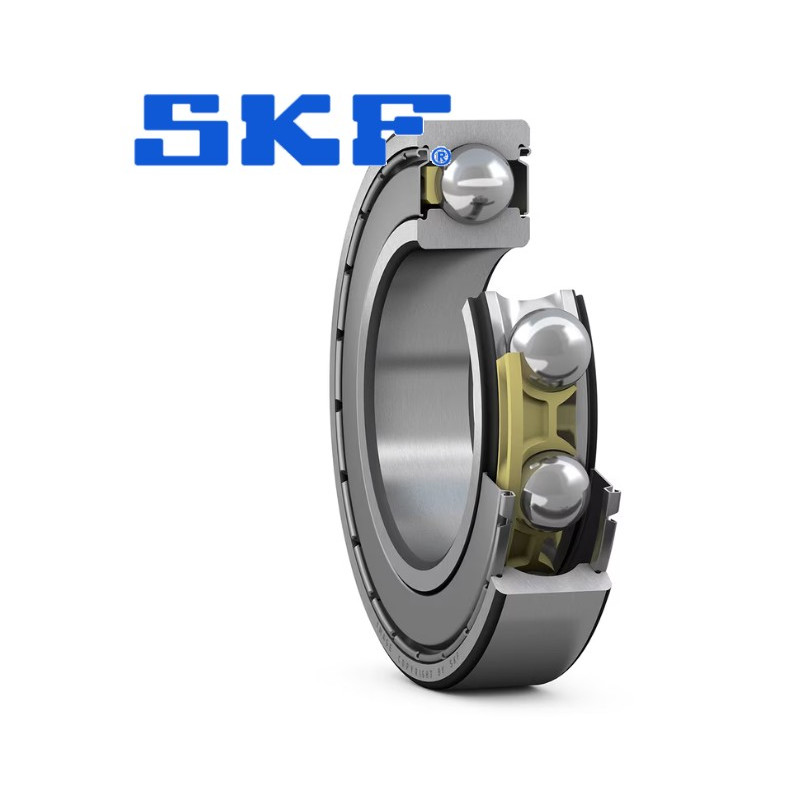

Deep groove ball bearing with shields
Single row deep groove ball bearings with seals or shields are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.- Integral sealing prolongs bearing service life
- Simple, versatile and robust design
- Low friction and high-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
Properties
| Filling slots | Without |
| Number of rows | 1 |
| Locating feature, bearing outer ring | None |
| Bore type | Cylindrical |
| Cage | Non-metallic |
| Matched arrangement | No |
| Radial internal clearance | C3 |
| Material, bearing | Bearing steel |
| Coating | Without |
| Sealing | Shield on both sides |
| Sealing type | Non-contact |
| Lubricant | Grease |
| Relubrication feature | Without |
Performance
| Basic dynamic load rating | 9.56 kN |
| Basic static load rating | 4.75 kN |
| Reference speed | 38 000 r/min |
| Limiting speed | 22 000 r/min |
7316574222476
E2.6203-2Z/C3 SKF
10103813
172 pcs.
Data sheet
- Diameter in. (mm)
- 17
- Diameter out. (mm)
- 40
- Thickness (mm)
- 12
- Mark
- SKF
