| Bore diameter | 9 mm |
| Outside diameter | 24 mm |
| Width | 7 mm |

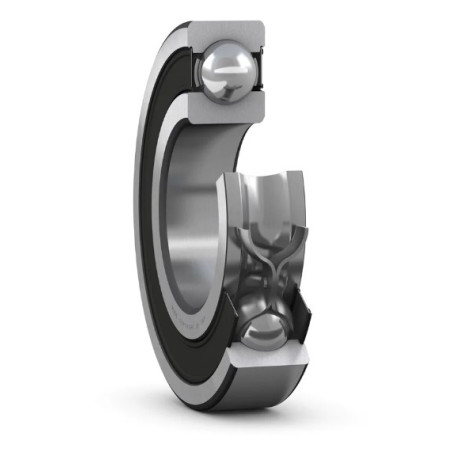

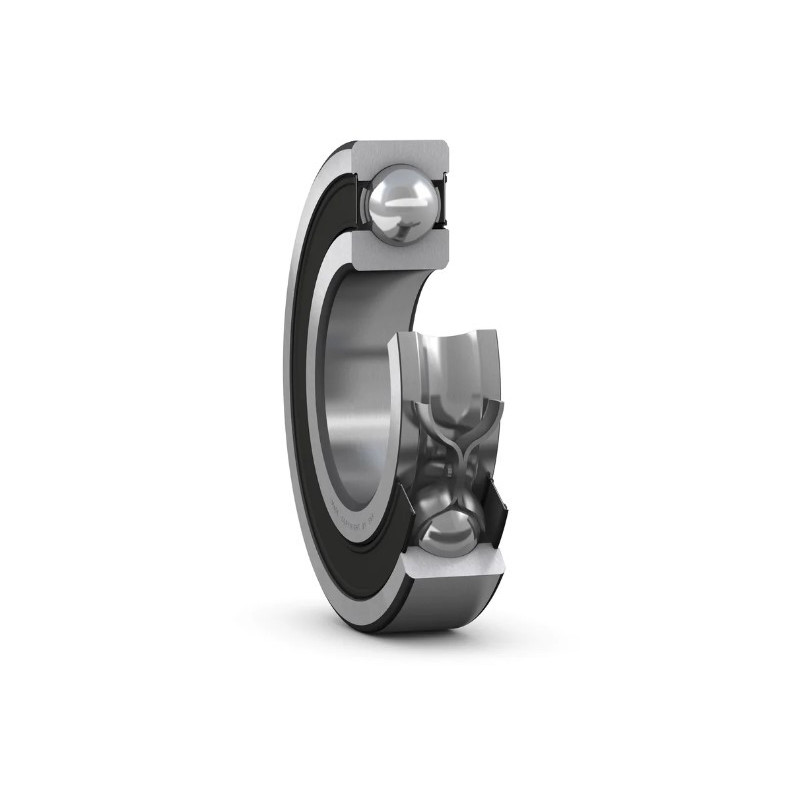

Stainless steel deep groove ball bearing with integral sealing
Stainless steel single row deep groove ball bearing with seals or shields on both sides, provide greater chemical and corrosion resistance. As with deep groove ball bearings generally, they are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
Greater chemical and corrosion resistance,
Integral sealing prolongs bearing service life,
Typical benefits of single row deep groove ball bearings,
.
| Bore type | Cylindrical |
| Cage | Sheet metal |
| Coating | Without |
| Filling slots | Without |
| Locating feature, bearing outer ring | None |
| Lubricant | Grease |
| Matched arrangement | No |
| Material, bearing | Stainless steel |
| Number of rows | 1 |
| Radial internal clearance | CN |
| Relubrication feature | Without |
| Sealing | Seal on both sides |
| Sealing type | Contact |
.
| Basic dynamic load rating | 2.03 kN |
| Basic static load rating | 0.815 kN |
| Limiting speed | 20 000 r/min |
Data sheet
