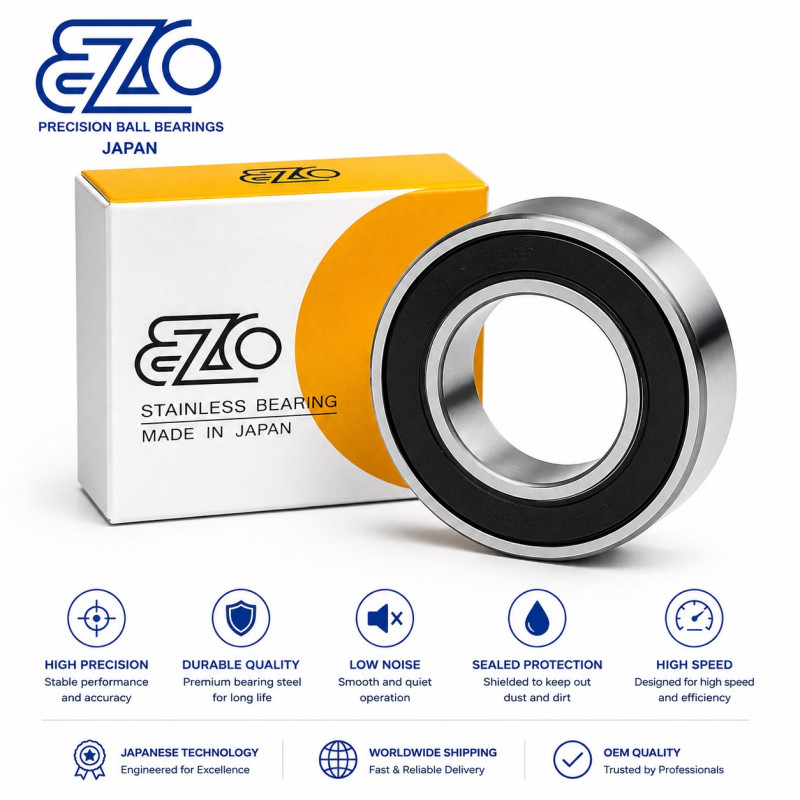

SS63802-2RS EZO 15x24x7 mm - Stainless Steel Deep Groove Ball Bearing

SS63802-2RS EZO 15x24x7 mm - Stainless Steel Deep Groove Ball Bearing

EZO SS63802-2RS is a single-row stainless steel deep groove ball bearing with dimensions 15x24x7 mm. It belongs to the compact 63800 series and features 2RS seals on both sides, helping protect the raceways and rolling elements against contaminants while retaining lubricant inside the bearing. The SS designation identifies the stainless steel version.

Technical data

EZO SS63802-2RS dimensions

The basic dimensions are:

d: 15 mm
D: 24 mm
B: 7 mm

Complete dimensional specification:

15x24x7 mm

The bearing has a compact radial cross-section. With a 15 mm bore, its outside diameter is only 24 mm and its width is 7 mm.

What does SS63802-2RS mean?

SS - stainless steel version.

63802 - bearing size with basic dimensions 15x24x7 mm.

2RS - seals on both sides of the bearing.

The complete designation SS63802-2RS should be considered when selecting a replacement because dimensions alone do not identify the material version or closure configuration.

EZO SS63802-2RS construction

SS63802-2RS is a single-row deep groove ball bearing consisting of:

• inner ring,
• outer ring,
• balls,
• cage,
• seals on both sides.

The deep raceway geometry is primarily designed to accommodate radial loads. As a deep groove ball bearing, it can also accommodate axial loads within the operating limits of the specific bearing arrangement.

Stainless steel version

The SS version provides increased corrosion resistance compared with a conventional bearing-steel version.

Stainless steel construction can be particularly relevant where the bearing is exposed to moisture or operating conditions requiring improved corrosion resistance.

However, stainless steel should not be interpreted as universally resistant to every chemical or corrosive environment. Compatibility should be evaluated according to the actual operating medium and conditions.

What does 2RS mean?

The 2RS designation identifies seals on both sides of the bearing.

The seals help to:

• reduce the ingress of contaminants,
• protect the raceways and rolling elements,
• retain lubricant inside the bearing,
• protect the bearing interior during operation.

The exact seal material and detailed seal design should not be determined solely from the 2RS designation without confirmation of the manufacturer's specific technical specification.

SS63802-2RS vs 63802-2RS

The principal difference is the material version.

SS63802-2RS - stainless steel version.

63802-2RS - standard material version.

Although both may have the same basic dimensions of 15x24x7 mm, they should not automatically be treated as identical products. Material construction is an important selection criterion.

SS63802-2RS vs SS63802ZZ

The principal difference is the closure system.

SS63802-2RS - seals on both sides.

SS63802ZZ - metal shields on both sides.

Selection should consider contamination, environmental conditions, required protection and the operating requirements of the bearing arrangement.

Compact 15x24x7 mm design

The combination of a 15 mm bore, 24 mm outside diameter and 7 mm width provides a particularly compact bearing envelope.

This makes the 63802 size useful where installation space is restricted. However, dimensions alone should not determine bearing selection. Required load capacity, operating speed, environment and sealing requirements must also be considered.

Selection and interchangeability

Before selecting EZO SS63802-2RS, verify:

• complete SS63802-2RS designation,
• dimensions 15x24x7 mm,
• SS stainless steel version,
• 2RS sealing configuration,
• required load capacity,
• operating speed,
• environmental conditions,
• corrosion-resistance requirements,
• shaft and housing fits.

Matching 15x24x7 mm dimensions alone does not confirm complete interchangeability.

Installation

Before installation, ensure that the bearing, shaft and housing surfaces are clean.

When fitting the bearing onto a shaft, mounting force should be applied to the inner ring. When pressing the bearing into a housing, force should be applied to the outer ring.

Mounting force should not be transmitted through the balls, and direct pressure on the 2RS seals should be avoided.

Alternative designations and reference formats

• EZO SS63802-2RS
• SS63802-2RS EZO
• SS 63802 2RS EZO
• SS63802 2RS
• EZO SS63802 2RS
• SS63802-2RS 15x24x7
• SS 63802 2RS 15x24x7
• stainless 63802 2RS 15x24x7

FAQ - EZO SS63802-2RS

What are the dimensions of EZO SS63802-2RS?

The bearing measures 15x24x7 mm, with a 15 mm bore, 24 mm outside diameter and 7 mm width.

What type of bearing is SS63802-2RS?

It is a single-row stainless steel deep groove ball bearing.

What does SS mean?

SS identifies the stainless steel version of the bearing.

What does 2RS mean?

2RS indicates seals on both sides of the bearing.

Is EZO SS63802-2RS corrosion resistant?

The stainless steel construction provides increased corrosion resistance compared with a conventional bearing-steel version. Actual resistance depends on the specific operating environment and medium.

What is the difference between SS63802-2RS and 63802-2RS?

SS63802-2RS is the stainless steel version, while 63802-2RS without the SS designation refers to the standard material version.

What is the difference between SS63802-2RS and SS63802ZZ?

SS63802-2RS has seals on both sides, while SS63802ZZ uses metal shields.

Can any 15x24x7 mm bearing replace SS63802-2RS?

Not automatically. Material, closure configuration and required operating characteristics must also be verified.

SS63802-2RS EZO - key information

EZO SS63802-2RS 15x24x7 mm is a compact single-row stainless steel deep groove ball bearing. It has a 15 mm bore, 24 mm outside diameter and 7 mm width. The SS designation identifies the stainless steel version, while 2RS indicates seals on both sides for additional protection of the bearing interior.

Available from simmering.pl, a specialist supplier of bearings and industrial components. Stock in Poland with worldwide shipping.
