Ball bearing Q 203 PP.AH05 FKL 13.081x40x18.29

€14.39 (net)
Price for: 1pcs.
Quantity

Q 203PP.AH05 FKL 13.081x40x18.29

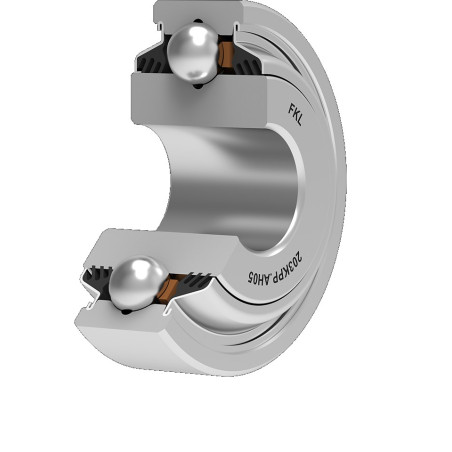

Single row angular contact ball bearing

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.

Technical Specification
Cdyn Dynamic load rating 15.6 kN
Co Static load rating 10 kN
D Outside diameter 40 mm
d Bore diameter 13.081 mm
C D-shape hole cut out dimension 12 mm
kg Mass 0.091 kg
B Width inner ring 18.29 mm
α Contact angle 25 °
FKL
Q 203 PP.AH05 FKL

Data sheet

Diameter in. (mm)
13.081
Diameter out. (mm)
40
Height (mm)
18.29
Mark
FKL
