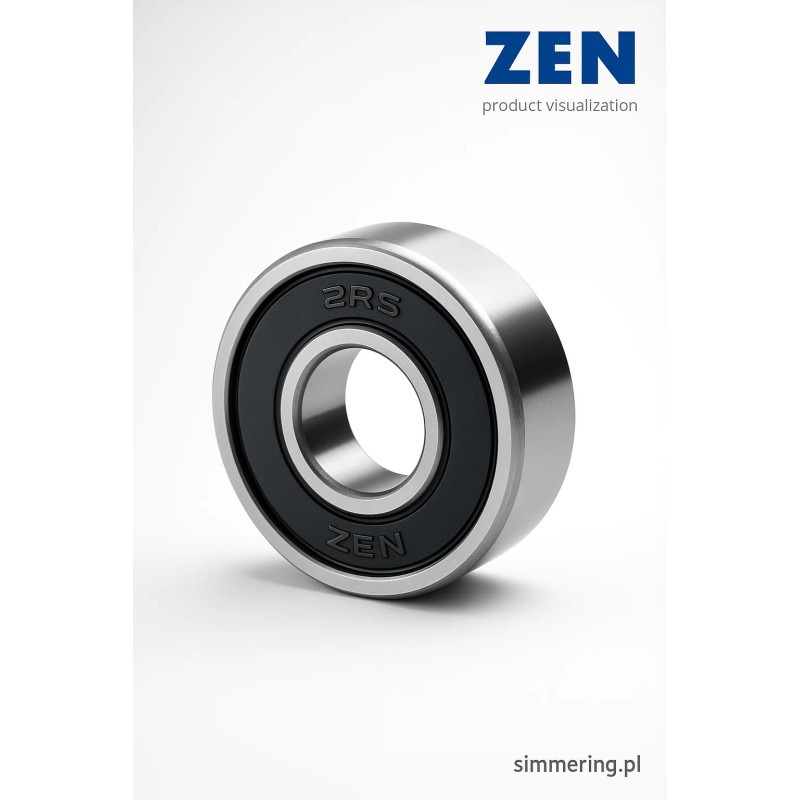

16001 2RS ZEN Deep Groove Ball Bearing (12x28x7 mm)

Industrial Applications & Use-Cases

The 16001 2RS ZEN is a high-precision deep groove ball bearing engineered for demanding industrial applications where compact sizes, low friction and long service life are critical. With dimensions 12 mm bore x 28 mm outer diameter x 7 mm width, it is well-suited for use in small motors, gearboxes, pumps, automation devices, precision drives and as a component of a bearing unit or within an bearing housing. The inclusion of full-width rubber seals (2RS) means the unit is protected from contaminants and ready for use with minimal maintenance requirements.

This component seamlessly integrates into existing mechanical systems requiring reliable rotational support and long-term stability. Its size and features align with both retrofit and OEM applications, making it a strategic choice for procurement professionals and maintenance engineers alike.

Key Benefits & Features

• Dual-side rubber seal (2RS) - ensures excellent protection against dust, moisture and lubricant leakage, enhancing the bearing’s lifespan and reducing maintenance intervals.

• Compact, robust form factor (12x28x7 mm) - suited to restricted space installations and supports smaller drives without compromising on performance.

• Deep groove design - provides high capability to handle radial loads, along with moderate axial loads in both directions; enables smooth, low-vibration operation in dynamic systems.

• Pre-lubricated and ready for installation - minimalist setup time, making this bearing ideal for fast replacement in service operations or integration into new equipment.

• Versatility in alignment with bearing housings and insert units - while often used as an individual component, it can also be fitted into housings or form part of a larger bearing unit, facilitating both standard installations and bespoke builds.

Technical Specifications

• Inner diameter (d): 12 mm

• Outer diameter (D): 28 mm

• Width (B): 7 mm

• Bearing type: Single-row deep groove ball bearing

• Seal type: 2RS (rubber seals both sides)

• Material: High-grade chromium bearing steel

• Typical dynamic load rating: approx. 4.65 kN (for size 12x28x7)

• Typical static load rating: approx. 1.98 kN

• Limiting speed: up to approx. 27,000 rpm under optimal conditions

• Suitable for use in precision drives, small motors, compact automation modules

These parameters position the 16001 2RS ZEN bearing as a trusted and efficient choice for engineers and buyers sourcing reliable rotating components for high-duty or compact roles.

FAQ - Frequently Asked Questions

1. What does the suffix “2RS” indicate in this bearing?
The “2RS” suffix denotes that the bearing is sealed with rubber seals on both sides, offering effective protection from contamination and lubricant loss, which results in longer life and less maintenance.

2. Is the 16001 2RS ZEN suitable for high-speed applications?
Yes. With its thin form (7 mm width) and sealed construction, it supports speeds up to approximately 27,000 rpm in favorable conditions, making it suitable for small-scale drives and precision equipment.

3. Can the bearing be installed within a bearing housing or used as an individual unit?
Absolutely. While commonly used as a stand-alone bearing, the 12x28x7 mm format also integrates easily into standard bearing housings or forms part of a pre-assembled bearing unit, offering flexibility in design and maintenance.

4. What kind of loads can this bearing handle?
Primarily designed for radial loads, this deep groove bearing also sustains moderate axial loads in both directions due to its race geometry — making it useful in compact applications requiring multi-direction load support.

5. How quickly can stock be dispatched?
We maintain inventory for the 16001 2RS ZEN in our warehouse in Lublin, ul. Smoluchowskiego 1, building 4, with 24-hour dispatch available, supporting rapid procurement and minimising downtime in industrial operations.
