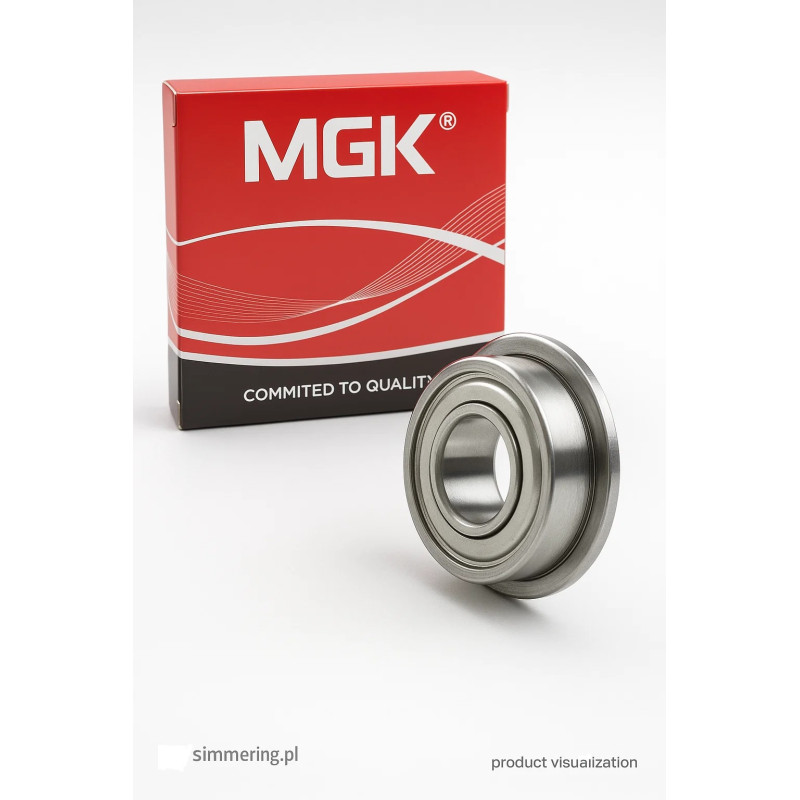

F626 ZZ MGK 6x19x6 Flanged Ball Bearing - Miniature, Shielded

Technical Specifications and Applications of the F626 ZZ MGK Flanged Bearing

Product Overview

The F626 ZZ MGK 6x19x6 flanged ball bearing is a miniature deep groove bearing with a flange (F) and double metal shields (ZZ). The flange ensures stable mounting in cylindrical housings, preventing axial displacement, while the metal shields protect the rolling elements from dust and contaminants. Compact, lightweight, and factory-lubricated, it is designed for high-speed, low-friction operation in precision applications.

Symbol Breakdown

• 6 → bore diameter: 6 mm

• 2 → outer diameter reference from the 6000 series

• 6 → width: 6 mm

• F → flange (flanged bearing)

• ZZ → double metal shields on both sides

Key Technical Specifications

• Dimensions: d = 6 mm, D = 19 mm, B = 6 mm

• Flange diameter: approx. 22 mm

• Type: Single-row deep groove ball bearing, flanged, double shielded

• Brand: MGK

• Material: High-quality bearing steel

• Shields: ZZ - non-contact metal shields on both sides

• Load type: primarily radial, moderate axial load capacity

• Speed limit (grease lubrication): up to ~40,000 rpm

• Internal clearance: standard (C0), C3 versions available

• Temperature range: -30 °C to +110 °C (depending on grease)

• Lubrication: Factory pre-lubricated for lifetime operation

• Weight: approx. 9 g (miniature bearing class)

Applications & Advantages

Typical applications:

• Small electric motors and fans

• Power tools and drills

• Precision instruments and medical devices

• Auxiliary drives and compact gearboxes

• Electronic and measuring equipment

Main benefits:

1. Flanged design - simplifies mounting, prevents axial shifting.

2. Double shields (ZZ) - protect against dust and fine debris.

3. Compact & lightweight - ideal for tight-space installations.

4. High speed capacity - supports up to 40,000 rpm with grease.

5. Factory greased - ready to use, maintenance-free in most cases.

6. Standardized dimensions - interchangeable with global bearing brands.

📍 Warehouse & Store: Lublin, ul. Smoluchowskiego 1, building 4
🚚 24h shipping - fast and efficient order processing

FAQ (Frequently Asked Questions)

Q: What does “F” stand for in F626 ZZ?
A: The letter F indicates a flanged bearing, with an extended ring for easy housing installation.

Q: What does “ZZ” mean?
A: ZZ means the bearing has double metal shields on both sides for dust protection and high-speed operation.

Q: Is this bearing pre-lubricated?
A: Yes - it comes factory-greased, ready for immediate installation.

Q: Can it handle high rotational speeds?
A: Yes - with ZZ shielding, it supports speeds up to 40,000 rpm.

Q: What clearance does it have?
A: Standard (C0), with optional C3 versions available for specific applications.

Q: What is the operating temperature range?
A: Typically -30 °C to +110 °C, depending on lubricant and load conditions.
