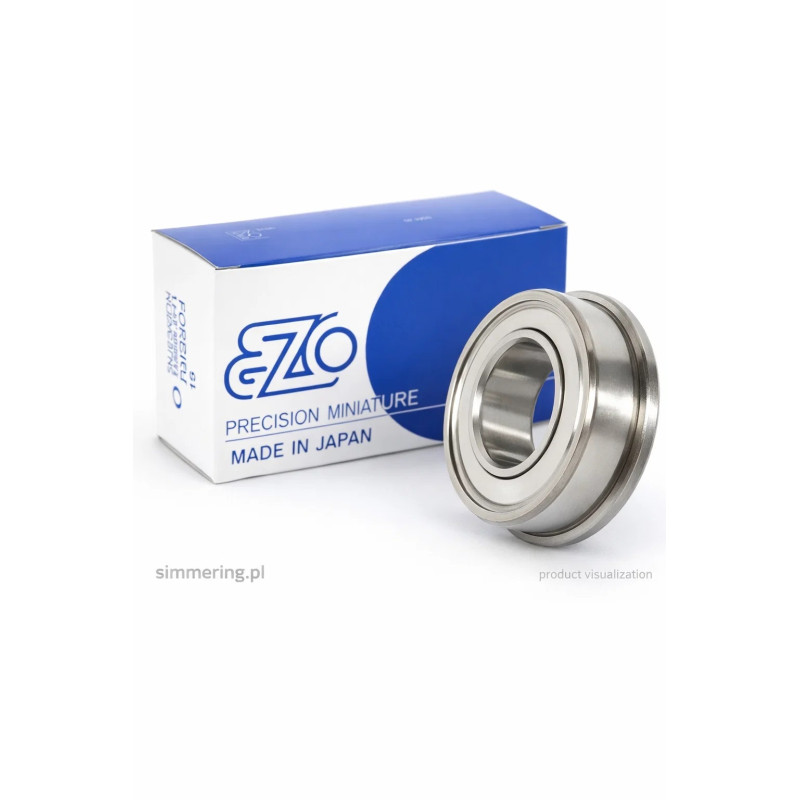

F-696 ZZ EZO 6x15x5 Flanged Ball Bearing

The F-696 ZZ EZO is a precision miniature flanged ball bearing designed for compact assemblies where accurate positioning, stable mounting, and smooth rotation are critical.

Design and construction

The F-696 ZZ EZO bearing features a flanged outer ring, allowing secure axial positioning inside housings without additional retaining components. This design simplifies installation and ensures consistent alignment in precision systems.

The bearing is equipped with metal shields ZZ on both sides, which:

• protect against dust and contaminants
• retain internal lubrication
• enable higher rotational speeds

Manufactured by EZO, known for high-precision miniature bearings, this model delivers excellent dimensional accuracy and long-term operational stability.

Industrial applications

The F-696 ZZ EZO flanged ball bearing is widely used in compact and high-precision environments where space is limited and reliability is essential.

Typical applications include:

• small electric motors
• automation and robotics systems
• precision instruments and electronics
• guide rollers and linear systems
• medical and laboratory devices

Its compact size 6x15x5 mm combined with a flange makes it ideal for applications requiring both radial support and axial positioning.

Technical specifications

• Type: flanged ball bearing
• Brand: EZO
• Model: F-696 ZZ
• Inner diameter: 6 mm
• Outer diameter: 15 mm
• Width: 5 mm
• Shields: metal ZZ (double-sided)
• Design: single row deep groove

This bearing meets the requirements of precision engineering and light industrial applications.

Performance advantages

Within the category of best ball bearings, the F-696 ZZ EZO stands out due to:

• integrated flange for easy and secure mounting
• high precision performance in compact systems
• low noise and smooth operation
• suitability for high-speed applications
• long service life in controlled environments

It is an optimal solution for systems requiring accuracy, reliability, and minimal maintenance.

Role in the best ball bearings category

The F-696 ZZ EZO belongs to the miniature flanged bearing segment, complementing standard deep groove ball bearings such as 6200, 6201, 6202, and 6203 series.

While larger bearings handle higher loads, this model focuses on:

• precision motion control
• compact mechanical design
• stable axial positioning

It plays a key role in advanced engineering applications where size and accuracy are critical.

Target users

This flanged ball bearing is especially suitable for:

• electronics manufacturers
• automation engineers
• R&D departments
• maintenance and service teams

It is designed for professionals who require reliable performance in small-scale mechanical systems.

FAQ

What is the difference between F-696 and standard 696 ZZ bearing?
The F-696 version includes a flange that allows secure axial positioning in the housing.

Are ZZ shields fully sealed?
No, they are not fully sealed but provide effective protection against dust and help retain lubricant.

Can this bearing operate at high speeds?
Yes, metal shields allow higher speeds compared to rubber-sealed bearings.

Where are flanged bearings typically used?
They are used in applications where axial positioning is required, especially in compact and precision devices.
