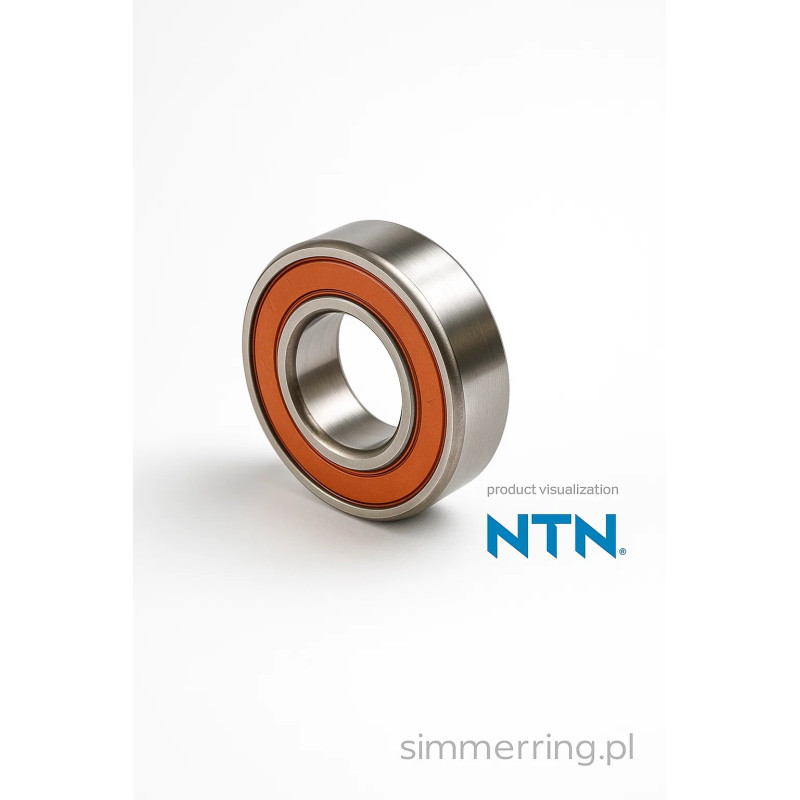

NTN 6306 2RS/32 C4 Ball Bearing 32x72x19 mm

Construction and design

NTN 6306 2RS/32 C4 is a specialized single row deep groove ball bearing designed for demanding industrial applications where thermal expansion, high speed operation and increased internal clearance are required.

This version features a non standard inner diameter of 32 mm, allowing precise fit in dedicated shaft configurations. The 2RS variant includes double rubber seals that protect the bearing against dust, moisture and contaminants while retaining lubrication.

The C4 internal clearance provides increased internal space, making the bearing suitable for high temperature environments and applications with higher rotational speeds. Precision machined raceways and high quality bearing steel ensure smooth and stable operation.

Industrial applications

NTN 6306 2RS/32 C4 deep groove ball bearing is widely used in electric motors, industrial pumps, fans, conveyors and machinery exposed to thermal expansion and continuous operation.

The 32x72x19 mm bearing size is particularly suitable for applications requiring non standard bore dimensions combined with enhanced thermal tolerance.

Technical specifications

Type: deep groove ball bearing
Manufacturer: NTN
Model: 6306 2RS/32 C4
Inner diameter: 32 mm
Outer diameter: 72 mm
Width: 19 mm
Sealing: 2RS double rubber seals
Internal clearance: C4 increased
Design: single row
Material: bearing steel
Lubrication: pre lubricated

Operational advantages

NTN 6306 2RS/32 C4 offers stable performance under high temperature conditions and increased rotational speeds. The C4 clearance compensates for thermal expansion and prevents excessive preload during operation.

The double rubber seals ensure protection against contamination, extending service life and reducing maintenance requirements. The non standard bore of 32 mm allows use in specialized industrial assemblies.

Dimensional compatibility

The NTN 6306 2RS/32 C4 bearing 32x72x19 mm belongs to the 6306 series but features a modified inner diameter for specific applications.

It can be used as a replacement for equivalent bearings with identical dimensions and technical parameters.

Search phrases such as bearing 32x72x19, 6306 2RS/32 C4 bearing or NTN deep groove ball bearing strengthen its position within the deep groove ball bearing category.

Main description

NTN 6306 2RS/32 C4 is a deep groove ball bearing designed to support radial loads and moderate axial loads in industrial applications requiring increased internal clearance and resistance to thermal expansion.

The NTN 6306 2RS/32 C4 32x72x19 mm bearing ensures reliable performance, high durability and efficient operation in demanding industrial environments.

FAQ

Where is NTN 6306 2RS/32 C4 bearing used
It is used in motors, pumps and machinery exposed to higher temperatures.

What does C4 clearance mean
It indicates increased internal clearance for thermal expansion.

Is this bearing suitable for high speed applications
Yes, it is designed for higher speed and temperature conditions.

Does the 2RS sealing provide full protection
It provides strong protection against dust and moisture.

Does this bearing require lubrication
No, it is pre lubricated and sealed.
