O-ring EPDM 139,2x5,7 Static Industrial Water and Steam Seal

High-Temperature & Chemical-Resistant Seal

The O-ring EPDM 139,2x5,7 is a static sealing solution engineered for industrial water and steam installations requiring stable compression, resistance to moisture and long term durability in non oil environments.

Within the static sealing O-rings EPDM category, the 139,2x5,7 mm model extends the medium to large diameter range, offering an increased 5,7 mm cross section for improved sealing stability in flange and cover connections.

The O-ring EPDM 139,2x5,7 is a water and steam resistant elastomer seal designed specifically for static industrial applications where consistent compression and environmental resistance are critical.

Construction and Material Characteristics

Manufactured from EPDM elastomer with standard 70 Shore A hardness, this O-ring provides:

• High elasticity for reliable installation

• Strong resistance to ozone and weathering

• Stable compression set in static assemblies

• Good compatibility with water and glycol based fluids

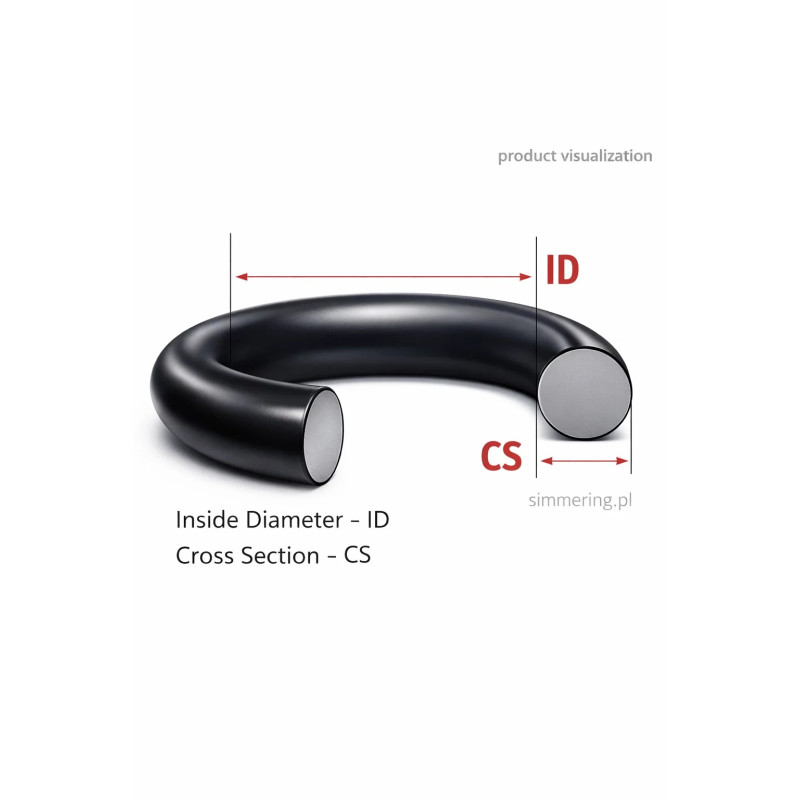

The dimensional combination of 139,2 mm internal diameter and 5,7 mm cross section allows uniform sealing pressure along larger circumferences, especially in static flange joints.

Technical Parameters

Technical snippet:

Type: O-ring EPDM
Size: 139,2x5,7 mm
Inside diameter: 139,2 mm
Cross section: 5,7 mm
Standard hardness: 70 Shore A
Temperature range: approx. -30 C to +120 C
Resistance: water, steam, glycol solutions, atmospheric exposure

Long tail phrases: O-ring EPDM 139,2x5,7 mm, 139,2 mm ID 5,7 mm EPDM O-ring, static EPDM O-ring for heating systems.

This EPDM O-ring is not recommended for mineral oils or fuel applications, where NBR or FKM materials are typically required.

Industrial Applications

The O-ring EPDM 139,2x5,7 is commonly used in:

• Central heating installations

• Heat exchangers

• Industrial water systems

• Tank covers and inspection hatches

• HVAC and building service equipment

As a static seal, it is intended for assemblies without significant relative movement between components, ensuring reliable long term sealing performance.

Operational Advantages

For maintenance teams and procurement departments, this model offers:

• Reduced leakage risk in water systems

• Reliable sealing in medium to large diameter connections

• Good performance in humid and outdoor environments

• Cost effective solution for water based industrial circuits

The 5,7 mm cross section enhances the ability to compensate for minor surface irregularities in flange joints.

Local Stock and Logistics

Magazyn i Sklep: Lublin, ul. Smoluchowskiego 1, budynek 4
Dostawa 24h - szybka realizacja zamowien

We supply EPDM O-rings directly from stock with fast 24h dispatch for B2B customers, supporting industrial maintenance and installation projects.

FAQ

1. Is the O-ring EPDM 139,2x5,7 suitable for hot water systems?
   Yes, it is designed for hot water applications within the specified temperature range.

2. Can it be used with steam?
   Yes, for low to medium temperature steam systems up to approximately 120 C.

3. Is this O-ring intended for dynamic applications?
   No, it is primarily recommended for static sealing applications.

4. Why choose EPDM for water systems?
   EPDM offers excellent resistance to water, steam and environmental aging compared to many other elastomers.
