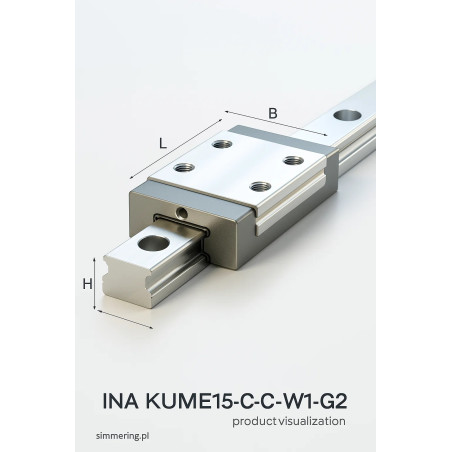

INA KUME15-C-W1-G2 - Miniature Linear Module / Linear Bearing

Specifications, Precision Class & Applications of KUME15 C W1 G2

Product Overview

The INA KUME15-C-W1-G2 is a miniature linear module / linear ball bearing engineered for high-precision, compact linear motion. Often referenced using search phrases like KUME15 C W1 G2, miniature linear bearing INA, or KUME15 compact module, this product finds its place in tight-scale automation, robotic axes, precision instruments, and CNC devices.

With its advanced G2 precision grade, compact design, and integrated sealing, the KUME15-C-W1-G2 offers consistent performance under diverse operating conditions.

Key Specifications

• Series / Model: KUME15-C-W1-G2

• Type: Miniature recirculating linear ball module (linear bearing)

• Accuracy Class: G2 (higher precision allowed)

• Configuration “C”: Standard compact version

• Variant W1: Specific wheel / carriage configuration

• Load ratings (approx): dynamic ~870 N, static ~740 N

• Operating environment: moderate dust, vibration, standard industrial temperatures

• Lubrication: factory-lubricated with options for re-lubrication

• Recommended guide shaft: Ø15 mm (for series 15) with precise tolerances

• Typical uses: precision slides, CNC axes, optical alignment systems, measurement devices, automation modules

Features & Benefits

1. G2 Accuracy Class ensures tighter tolerances and smoother motion.

2. Compact “C” design for tight integration into smaller mechanical systems.

3. Sealing and PP cage elements reduce contamination and maintain lubricant.

4. High load capacity relative to size — ideal for micro-motion applications.

5. Modular design — easy to combine multiple modules or integrate in linear systems.

6. Smooth, low-friction movement — ideal for high precision tasks.

📍 Warehouse & Store: Lublin, ul. Smoluchowskiego 1, building 4
🚚 24h shipping - fast and efficient order processing

FAQ (Frequently Asked Questions)

Q: What does “G2” mean in this module?
A: G2 is a precision grade indicating tighter tolerances and improved smoothness of the linear motion.

Q: What is the significance of “C” and “W1” in KUME15-C-W1?
A: “C” denotes the compact version of the carriage, while “W1” is a specific carriage configuration or wheel variant within the series.

Q: Is this module pre-lubricated? Can it be relubricated?
A: Yes, it is factory-lubricated. In many applications, you can apply additional lubricant for extended service life.

Q: What guide shaft size should be used with KUME15?
A: Use Ø15 mm precision shafts with tight tolerances (e.g. h6/h7) for best geometry and performance.

Q: Where is this product commonly used?
A: In miniature CNC axes, optical systems, precision automations, micro-robotics, and instrumentation when compact linear motion is required.
