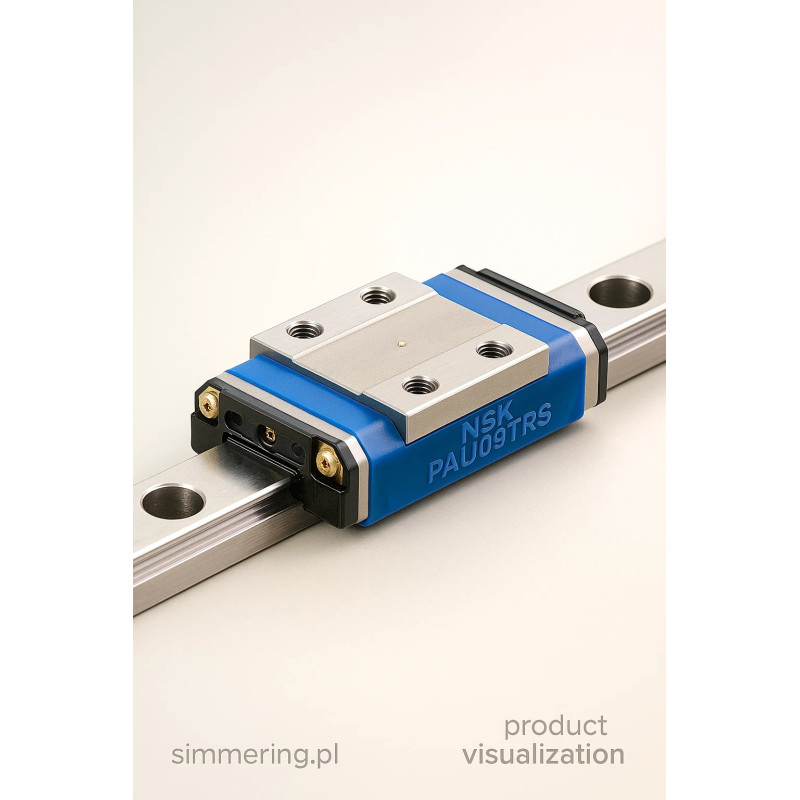

NSK PAU09TRS Miniature Linear Guide Carriage (9 mm)
24 pcs.
€42.03
(net)
Price for: 1pcs.
The NSK PAU09TRS carriage is a precision miniature linear guide block for 9 mm rails, combining stainless steel construction, smooth motion, and robust dynamic load capacity (~1,490 N). With random matching (no preload), quiet operation, and corrosion-resistant design, it's ideal for compact, demanding linear systems in automation, medical devices, optics, and more. Our warehouse in Lublin, Poland, ensures 24h shipping for B2B customers worldwide — making simmering.pl your reliable source for high-end linear motion components.
High-Precision 9 mm Stainless Steel Ball Slide — PAU09TRS (PU Series)
The NSK PAU09TRS is a miniature linear guide carriage (ball slide block) designed for 9 mm rail applications. It belongs to NSK’s PU series of interchangeable miniature linear guides and is engineered for smooth, precise linear motion in compact systems.
Key Features & Advantages
-
Stainless steel / corrosion-resistant body — ideal for humid or aggressive environments
-
Random matching (no preload) configuration for standard clearance and smooth motion
-
Low noise, low friction performance
-
Resin re-circulation components for quieter ball movement
-
Compact dimensions suitable for space-constrained designs
-
High dimensional precision consistent with NSK miniature guide tolerances
-
Compatibility with PU / LU series rails (interchangeable mount)
Technical Specifications
| Parameter | Value |
|---|---|
| Rail compatibility | 9 mm width (miniature linear guide rail) |
| Overall length | 30 mm (typical for PAU09TRS) |
| Overall width | 20 mm |
| Overall height | 7.8 mm |
| Dynamic load rating | ~1,490 N |
| Material / body | Stainless steel + resin circulation parts |
| Matching type | Random matching (no preload |
Applications
The NSK PAU09TRS linear guide carriage is ideal for applications including:
-
Precision automation and robotics
-
Medical and laboratory instruments
-
Semiconductor equipment
-
Optical / measurement systems
-
Compact linear stages, positioning tables
-
Any system needing compact, low-friction linear guidance
Implementation Notes & Best Practices
-
Ensure clean mounting surfaces and correct rail alignment to exploit the precision of the carriage
-
Use recommended lubrication (compatible grease) for long life
-
Avoid impact during handling; the unit is precise and small tolerances matter
-
For very high precision or stiffness demands, consider variant with preload or upgrade to higher accuracy series
Unique Selling Points
What sets NSK PAU09TRS apart from generic 9 mm linear guides:
-
True NSK brand quality with stringent tolerances
-
Interchangeability with LU series rails
-
Balanced performance: compact size with strong load capacity
-
Lower noise thanks to resin circulation
-
Excellent corrosion resistance for demanding environments
📍 Warehouse & Store: Lublin, ul. Smoluchowskiego 1, building 4
🚚 24h shipping - fast and efficient order processing
FAQ (Frequently Asked Questions)
Q: What rail width does PAU09TRS fit?
A: It is designed for 9 mm miniature linear guide rails, making it ideal for compact linear systems.
Q: Is PAU09TRS available with preload (pre-loaded version)?
A: This specific model is random matching (no preload). For preload versions, check NSK’s other variants.
Q: What is the dynamic load capacity of PAU09TRS?
A: Approximately 1,490 N dynamic load (depending on conditions and exact configuration).
Q: Can the PAU09TRS carriage be used in corrosive or humid environments?
A: Yes — it uses stainless steel and corrosion-resistant design features for improved durability.
Q: What makes PAU09TRS superior to generic 9 mm linear guide carriages?
A: NSK ensures higher precision, quality control, interchangeability with PU/LU systems, and better noise / friction behavior.
Q: How fast is delivery from simmering.pl?
A: We offer 24h shipping from our store & warehouse in Lublin, building 4, ul. Smoluchowskiego 1.
The NSK PAU09TRS carriage is a precision miniature linear guide block for 9 mm rails, combining stainless steel construction, smooth motion, and robust dynamic load capacity (~1,490 N). With random matching (no preload), quiet operation, and corrosion-resistant design, it's ideal for compact, demanding linear systems in automation, medical devices, optics, and more. Our warehouse in Lublin, Poland, ensures 24h shipping for B2B customers worldwide — making simmering.pl your reliable source for high-end linear motion components.
