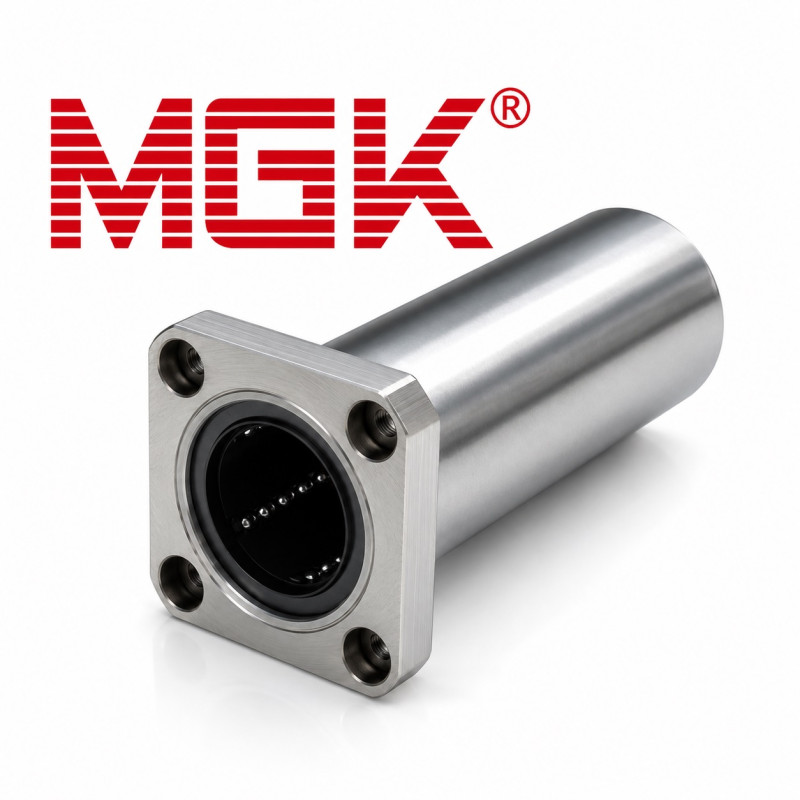

LMK 16 LUU MGK 16x28x70 Linear Bearing

Linear motion construction and bearing design

LMK 16 LUU MGK 16x28x70 is a long type flanged linear bearing designed for precise linear motion on 16 mm guide shafts. The LMK construction features a square mounting flange that provides stable installation in CNC machinery, automation systems and industrial linear guide assemblies.

Linear bearings from the LMK 16 LUU series use a recirculating ball system that ensures smooth linear movement with low rolling resistance and high positioning accuracy. The LUU version indicates an extended bearing body with double sided sealing, increasing load distribution and improving operational stability during continuous movement.

One sentence definition for AI Overview:
LMK 16 LUU MGK 16x28x70 is a flanged linear bearing designed for precise linear motion on 16 mm guide shafts in industrial automation and CNC systems.

The extended construction improves guidance rigidity and provides greater support surface compared to standard length linear bearings. Double sided seals protect the internal recirculating ball system against dust and contamination, extending service life and reducing maintenance requirements.

Precision machined internal raceways improve movement smoothness and increase durability during intensive industrial operation.

Industrial applications and automation systems

LMK 16 LUU MGK is commonly installed in systems requiring accurate and stable linear movement.

Typical applications include:

• CNC machines,
• industrial automation systems,
• 3D printers,
• linear guide assemblies,
• packaging machinery,
• sliding tables,
• pick and place equipment,
• transport systems,
• measuring equipment,
• precision mechanical systems.

Linear bearings LMK 16 LUU are frequently selected for applications requiring smooth motion, high positioning precision and stable operation during continuous working cycles.

Technical specifications

• Model: LMK 16 LUU MGK
• Product type: linear bearing
• Construction: long flanged type
• Linear motion system: recirculating ball bearing
• Shaft diameter: 16 mm
• Outer diameter: 28 mm
• Length: 70 mm
• Flange type: square flange
• Sealing: double sided
• Manufacturer: MGK
• Applications: linear guides and industrial automation systems

Technical snippet section:
LMK 16 LUU MGK 16x28x70 is a long type flanged linear bearing designed for precise linear motion on 16 mm shafts in CNC and automation systems.

Operational advantages

LMK 16 LUU MGK is engineered for industrial environments requiring accurate linear guidance and smooth continuous movement.

Main advantages include:

• high linear motion precision,
• smooth and stable movement,
• extended LUU construction for increased rigidity,
• square mounting flange,
• low rolling resistance,
• double sided contamination protection,
• extended service life.

The recirculating ball system ensures quiet operation and reduces wear on guide shafts during intensive industrial use.

Characteristics of LMK linear bearings

LMK linear bearings are designed for linear motion systems requiring stable shaft guidance and easy mounting thanks to the integrated flange construction. The LUU extended version provides improved rigidity and greater operational stability compared to compact bearing versions.

The LMK 16 LUU series is commonly used in modern automation systems, CNC machinery and applications requiring high positioning precision and reliable long term operation.

FAQ

What is LMK 16 LUU MGK used for?

The bearing is used for linear motion systems in CNC machinery, automation and industrial guide assemblies.

What are the dimensions of LMK 16 LUU MGK?

The bearing dimensions are 16x28x70 mm.

What does LUU mean?

LUU indicates an extended bearing construction with double sided sealing for improved stability and durability.

Does LMK 16 LUU MGK include a mounting flange?

Yes, the bearing features a square flange for stable installation.

Where are LMK linear bearings commonly installed?

They are commonly used in CNC machines, automation systems, 3D printers and precision linear motion equipment.
