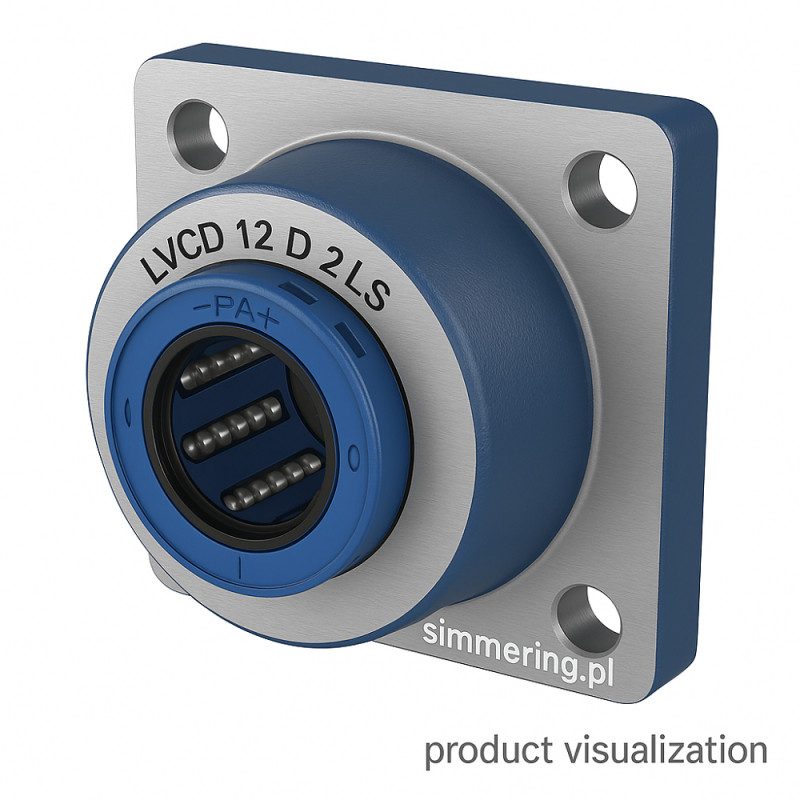

Ewellix LVCD 12 D‑2LS - Flanged Self‑Aligning Linear Bearing Unit, Ø 12 mm Bore

Ewellix LVCD 12 D‑2LS - Flanged Self‑Aligning Linear Bearing Unit, Ø 12 mm Bore

The Ewellix LVCD 12 D‑2LS is a rugged flanged linear bearing unit designed for 12 mm shafts. Featuring a self‑aligning LBCD ball bearing (ISO series 3) with dual labyrinth-type seals (2LS), it ensures smooth operation even under slight shaft misalignment. The lightweight aluminum housing and polymer cage deliver reduced friction, low noise, and long life. Supplied pre-lubricated, it’s ready for installation in conveyor systems, automation lines, packaging machines, and industrial equipment. Supports speeds up to 5 m/s, accelerations to 100 m/s², and operates in environments from -20 °C to +80 °C. Key dimensions are 12 x 22 x 32 mm (ID x OD x H) and weight ~0.12 kg

📍 Warehouse: Smoluchowskiego 1, Building 4, Lublin, Poland
🚚 24h Delivery - Nationwide & International shipping

📌 FAQ

Q1: What is the bore size?
A1: Ø 12 mm, ideal for shafts in compact linear systems

Q2: What does "D‑2LS" mean?
A2: “D” denotes the housing type; “2LS” = double labyrinth seals protecting against contaminants.

Q3: Is it ready to install?
A3: Yes - factory-lubricated, maintenance-free, requiring no pre-greasing

Q4: Maximum speed and load?
A4: Operates up to 5 m/s, acceleration up to 100 m/s²

Q5: Lead time & shipping?
A5: Shipped within 24 h from Lublin; fast delivery across Poland and internationally.
